Gravel/Sand Washing Machines About Information
The demand for clean, high-quality sand and gravel in construction projects has never been higher. Whether you're producing concrete aggregates, creating asphalt mixtures, or supplying materials for infrastructure development, the cleanliness of your sand directly impacts the quality of the final product. Sand washing machines remove clay, silt, dust, and other impurities from aggregate materials, ensuring they meet strict industry specifications. Without proper washing equipment, excess fines and contaminants can compromise concrete strength, reduce material value, and lead to project delays.
Modern sand washing plants have evolved far beyond simple water spray systems. Today's equipment combines mechanical action, water flow control, and dewatering technology to maximize cleaning efficiency while minimizing water consumption and material loss. At Constmach, we manufacture a complete range of sand washer solutions designed for quarries, mining operations, and aggregate production facilities. Our machines handle everything from fine sand particles to coarse gravel, delivering consistent results across various material types and production capacities.
The wheel bucket sand washer represents the most common solution for cleaning sand and fine aggregates. This machine uses a rotating wheel with buckets to lift material through a washing tank while water jets remove unwanted particles. As the wheel turns, clean sand gradually rises and discharges over a weir, while dirty water and fine clay particles drain away separately. This design proves particularly effective for materials with moderate clay content and offers excellent dewatering performance.
Constmach wheel bucket washers feature robust construction with heavy-duty bearings and wear-resistant components. The adjustable weir height allows operators to control the final moisture content of washed sand, typically achieving 12-15% water content in the discharged product. Our machines process between 30 and 200 tons per hour depending on the model, making them suitable for both small-scale operations and large aggregate plants. The simple mechanical design means minimal maintenance requirements and reliable long-term operation.

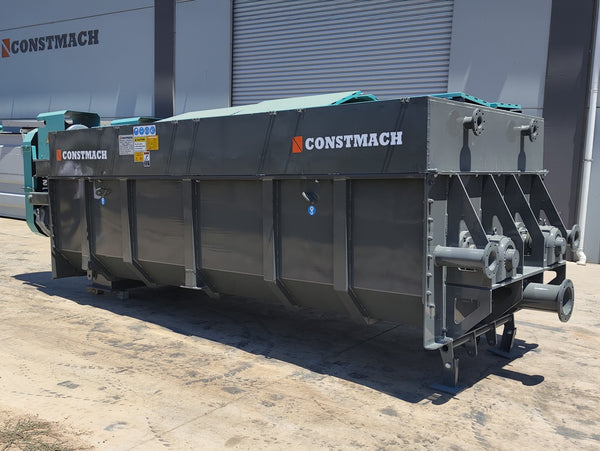

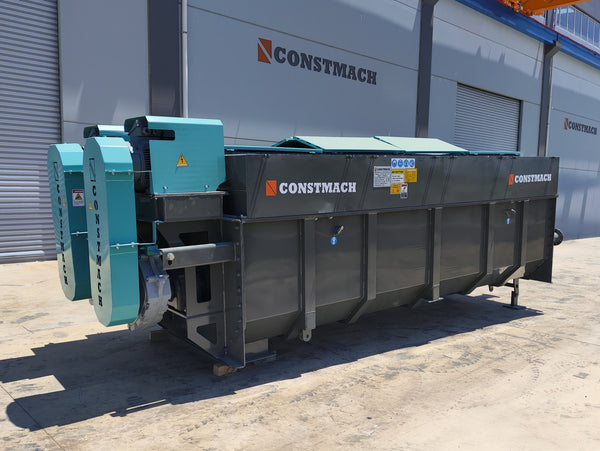

When dealing with heavily contaminated materials containing sticky clay, organic matter, or compacted dirt, a log washer provides the intensive scrubbing action needed for thorough cleaning. This gravel washer consists of two or more parallel rotating shafts with paddles that create a tumbling action inside a trough. The aggressive mechanical agitation breaks apart clay balls and releases trapped fines, while water flushes away the loosened contaminants.
Log washers from Constmach excel at pre-washing duties before materials enter screening or further washing stages. They're particularly valuable for processing river gravel, recycled concrete, and mining aggregates where conventional sand washing machines struggle with heavy contamination. The variable speed drive allows adjustment of retention time and washing intensity based on material conditions. Despite the vigorous washing action, our log washers operate with relatively low water consumption by continuously recirculating the process water.
After washing, managing the water content in your sand becomes critical. Dewatering screens use high-frequency vibration and an inclined screen deck to rapidly remove surface moisture from washed sand. The fine screen openings retain the product while allowing water to drain through, reducing moisture content to 10-14% without requiring thermal drying. This creates a stackable, free-flowing product that's immediately ready for use or storage.
Hydrocyclones work on a different principle, using centrifugal force to separate fine sand from washing water. The pressurized slurry enters tangentially into a conical chamber, creating a vortex that pushes heavier sand particles to the walls while lighter water and silt rise through the center overflow. Constmach often pairs hydrocyclones with dewatering screens to recover ultra-fine sand that would otherwise be lost in tailings water. This combination maximizes your material yield while clarifying water for reuse in the washing circuit. Together, these technologies can reduce water consumption by 80% compared to once-through washing systems.

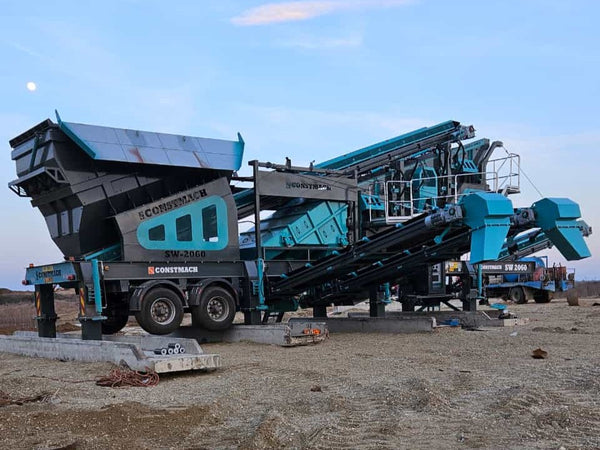

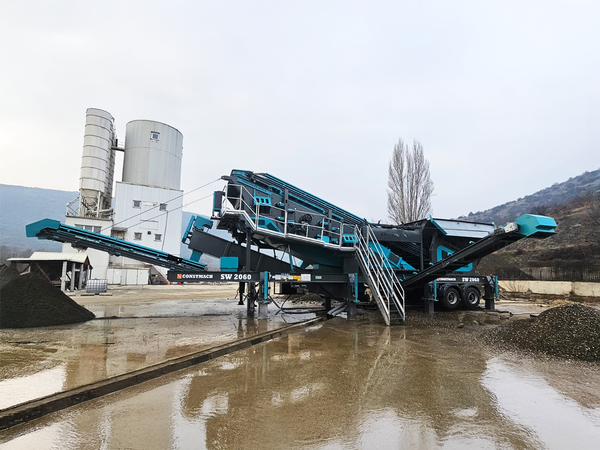

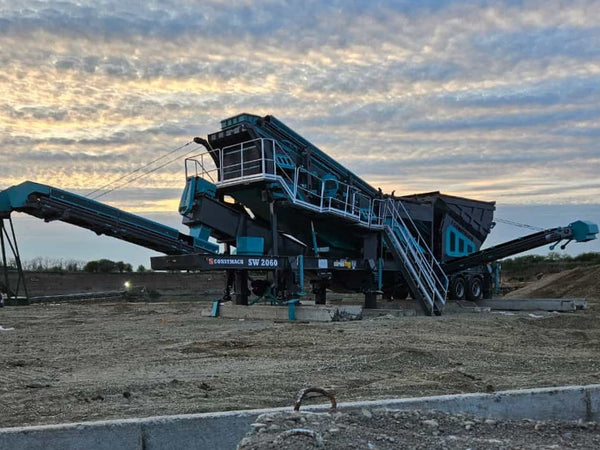

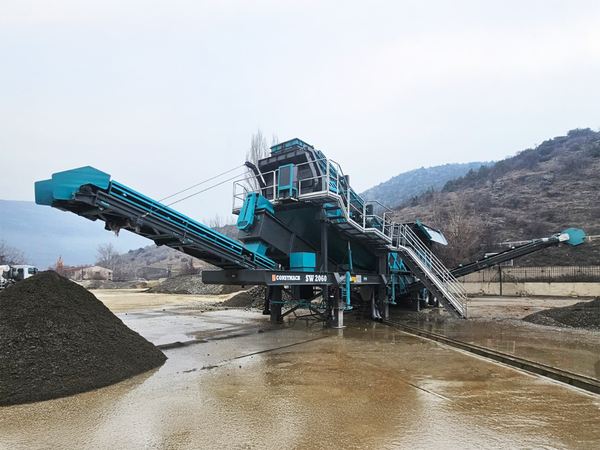

Operations requiring flexibility benefit enormously from mobile sand screening and washing plants. These self-contained units mount all necessary equipment—including screens, washers, pumps, and water tanks—on a transportable chassis. Setup time drops to just a few hours, allowing you to move between job sites or follow the mining face as quarrying progresses. The compact footprint proves ideal when working in restricted areas or temporary locations.
Constmach mobile washing plants integrate our wheel bucket sand washers with multi-deck screening equipment to produce multiple clean product grades simultaneously. The modular design allows customization based on your specific requirements, from simple single-product units to sophisticated systems with separate coarse and fine washing circuits. Built-in water recycling systems reduce your environmental impact and operating costs. Remote areas without permanent water infrastructure become viable production sites when you can recirculate and conserve your process water effectively.

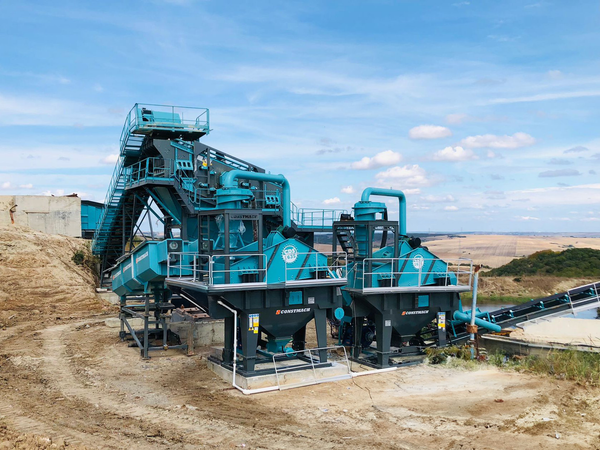

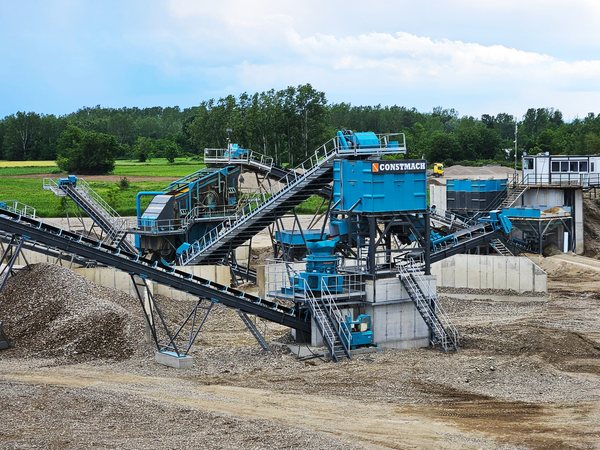

High-capacity aggregate producers need the efficiency and throughput that only stationary screening & washing plants can deliver. These permanent installations integrate multiple sand washing machines, classification screens, and material handling systems into a coordinated production line. Material flows smoothly from feed hoppers through screening decks, washing stages, and dewatering equipment before discharging into separate stockpiles for each product grade.
A well-designed stationary plant from Constmach processes 200-500 tons per hour while producing three to five distinct product sizes. The multi-stage washing system progressively removes contamination, starting with log washers for initial cleaning, followed by sand washer units for final polishing, and ending with dewatering screens to reduce moisture. Automated controls monitor water flow, screen loading, and product quality, adjusting parameters in real-time to maintain optimal performance. The closed-loop water system with settling ponds and clarifiers ensures compliance with environmental regulations while minimizing freshwater consumption.
Selecting the right sand washing machine supplier shapes your production success for years to come. Constmach brings over two decades of manufacturing experience specifically in concrete plant and aggregate processing equipment. We don't just sell machines—we engineer complete solutions tailored to your material characteristics, production targets, and site conditions. Every sand washing plant we build undergoes rigorous testing before shipment, ensuring it performs exactly as specified from day one.
Our global presence means local support wherever you operate. Technical assistance, spare parts availability, and operator training come standard with every Constmach system. We understand the real-world challenges of aggregate production because we work daily with producers facing the same issues you encounter. The robust construction of our equipment, from reinforced frames to premium components, translates into lower maintenance costs and exceptional longevity. When you invest in a Constmach gravel washer or sand washing plant, you're choosing proven technology backed by genuine partnership. Contact us today to discuss your specific washing requirements and discover how the right equipment transforms your aggregate quality and profitability.
