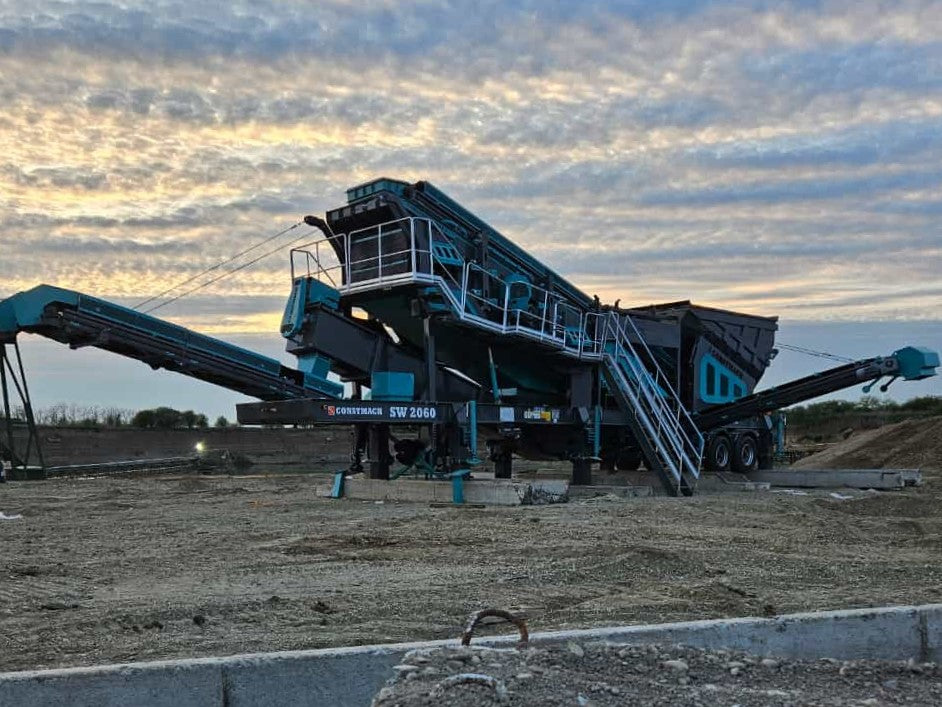

SW-2060 Mobile Sand Screening and Washing Plant 200 T/H

The SW-2060 represents CONSTMACH's engineering solution for efficient sand and gravel processing in mobile operations. This plant combines screening and washing capabilities on a single wheeled chassis, delivering a production capacity of 200 tons per hour while maintaining the flexibility that modern aggregate operations demand.

What sets this model apart is its complete integration of processing equipment. The system starts with a feeding hopper that channels material through a dedicated conveyor belt to the main vibrating screen. This 2,000 x 6,000 mm screening unit works in conjunction with an integrated washing system, ensuring that aggregates are both sized and cleaned in a continuous flow. Material exits through fold-up stockpile conveyors that simplify site management, while the 700 x 7,000 mm screw washer handles the fine material fraction with precision.

The mobility aspect goes beyond simple transportation. Hydraulic legs stabilize the entire assembly during operation, creating a solid working platform that can be relocated between job sites without extensive disassembly. The plant's dimensions—17 meters in length, 3.85 meters in width, and 4.5 meters in height—comply with international road transport regulations, making inter-site moves straightforward. At 37,000 kg, the unit requires proper transport equipment but remains within manageable weight limits for standard heavy haulage.

Operation is handled through a tablet-based control system powered by Siemens-Schneider components. The PLC automation eliminates the need for multiple operators and allows real-time adjustments to washing intensity, screen frequency, and material flow rates. This level of control becomes particularly valuable when processing varies between different aggregate sources or when specific product specifications need to be met.

The electrical system draws 55 kW across all motors, with a recommended generator capacity of 120 kVA for standalone operation. This diesel generator option transforms the SW-2060 into a completely autonomous processing unit, valuable for remote locations or temporary projects where grid power is unavailable. The plant can also run on site electricity when available, providing operational flexibility.

An interesting feature is the plant's adaptability. The screw washer can be removed when washing isn't required, converting the unit into a pure screening plant. This versatility extends equipment utility across different project types and reduces the need for multiple specialized machines. The 4,750 mm feeding height accommodates loader buckets and excavators without requiring elevated ramps or modified equipment.

CONSTMACH's SW Series addresses a specific market need: operations that require quality screening and washing but can't commit to stationary installations. Quarries expanding into new areas, contractors working on sequential projects, and aggregate producers serving dispersed markets all benefit from this mobile approach. The combination of robust processing capacity, automated controls, and genuine portability creates a tool that adapts to work rather than forcing work to adapt to equipment location.
