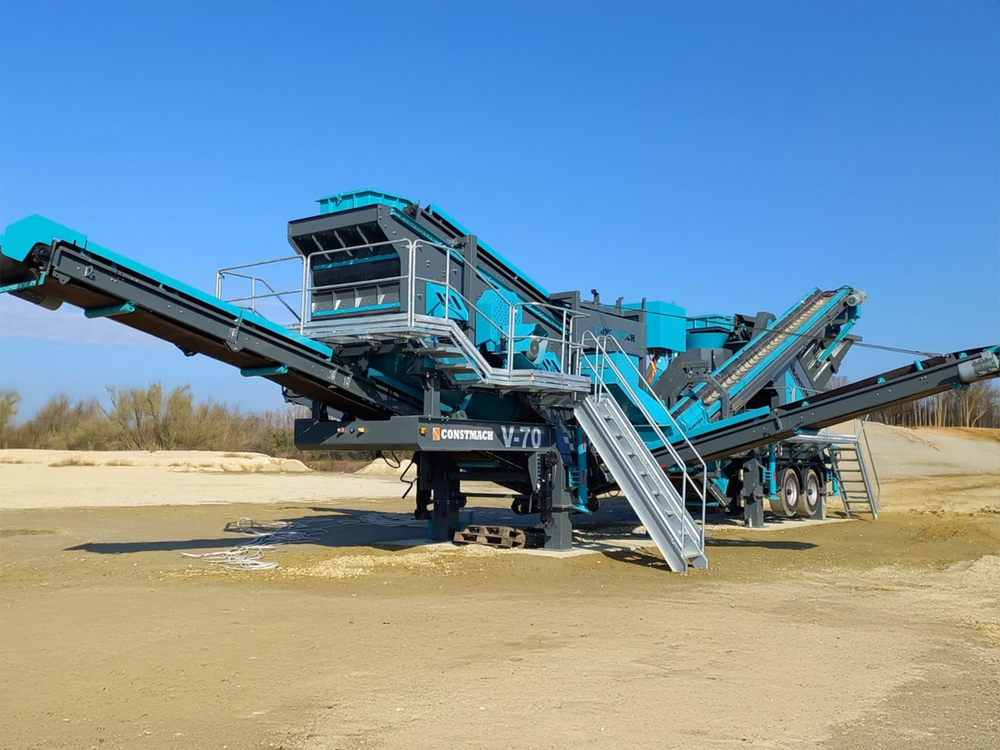

V-70 Mobile Vertical Shaft Impact Crusher Plant 60-80 TPH

CONSTMACH's V-70 represents a breakthrough in mobile sand making technology, delivering exceptional performance for producers who demand high-quality manufactured sand with superior cubic shape. This mobile crushing plant combines decades of engineering expertise with cutting-edge automation to create a turnkey solution that transforms raw stone into premium-grade material ranging from 0-5 mm granulation.

The V-70 stands out as a versatile mobile crusher capable of processing feed material up to 35 mm directly, eliminating the need for pre-crushing in many applications. This flexibility allows operators to work with material from primary and secondary crushing operations or feed natural stone straight into the system. The plant's VSI 700 CR closed rotor vertical shaft impact crusher forms the heart of this mobile sand making plant, utilizing advanced impact crushing principles to produce consistently cubic particles that meet the most demanding specifications for concrete production and asphalt manufacturing.

Material versatility defines the V-70's operational capabilities. Whether processing hard granite and basalt or softer limestone and dolomite, this mobile crushing plant maintains excellent production rates while delivering uniform output quality. The closed rotor design ensures optimal energy transfer during the crushing process, maximizing throughput while minimizing wear on critical components. Operators working with gabbro and other challenging materials report satisfying results, with the system maintaining stable performance across varying hardness levels.

Production capacity reaches 100-150 tons per hour depending on material characteristics and desired output specifications. The integrated three-deck vibrating screen allows simultaneous production of multiple fractions, giving producers the flexibility to create customized product mixes for different market demands. Beyond standard 0-5 mm sand production, the V-70 can generate up to three distinct product sizes in a single pass, reducing the need for additional processing equipment and streamlining operations.

The plant's configuration reflects thoughtful design focused on practical operation. A generous 10-cubic-meter feeding hopper ensures consistent material flow to the VSI crusher, while strategically positioned conveyors handle material transfer efficiently throughout the system. The feedback conveyor returns oversized material for additional processing, and stockpile conveyors deposit finished products for loading. This integrated approach eliminates bottlenecks and keeps material moving smoothly through each processing stage.

Mobility stands as a defining characteristic of the V-70. Built on a single-chassis platform with hydraulic stabilizing legs, the entire crushing and screening plant can relocate between job sites with minimal preparation time. Overall dimensions comply with international road transport regulations, allowing movement with standard tractor equipment using kingpin connection. Once on site, the hydraulic leg system provides stable operation on varied terrain, and the quick-setup design means production can begin within hours of arrival.

Modern automation technology elevates the V-70 beyond conventional mobile crusher designs. The control system features premium Siemens and Schneider electronic components paired with an intuitive PLC interface. Operators manage the entire plant through a tablet controller, monitoring performance parameters and adjusting settings without leaving the control station. This remote operation capability enhances safety while providing real-time oversight of crushing operations.

For remote locations or areas with limited electrical infrastructure, an optional diesel generator set integrates directly into the plant's chassis. This self-contained power solution eliminates dependency on external electrical sources, expanding the range of potential work sites. The 400 kVA generator requirement ensures adequate power for the plant's 170 kW total motor load while maintaining operational reserves.

The dust removal system addresses environmental concerns and improves working conditions around the mobile crushing plant. Effective dust suppression protects mechanical components from excessive wear while creating a cleaner atmosphere for operators and nearby personnel. This attention to environmental management reflects current industry standards and helps producers meet increasingly stringent air quality regulations.

Hydraulic features extend beyond the stabilizing legs. Optional hydraulic opening mechanisms for feeding hopper covers and stockpile conveyors allow the entire system to transition from transport to operational configuration without auxiliary equipment. This self-sufficient design reduces setup complexity and eliminates the need for cranes or additional machinery during installation.

At 32,000 kilograms with dimensions of 17.8 meters length, 3.35 meters width, and 4.5 meters height, the V-70 balances substantial processing capability with practical transportability. The feeding height of 4.5 meters accommodates various loading equipment while maintaining a compact overall profile. This combination of size and performance makes the V-70 particularly attractive for contractors working on infrastructure projects, aggregate producers serving local markets, and operations requiring frequent relocation.

The V-70 mobile sand making machine delivers reliable performance backed by quality components selected for longevity under demanding conditions. Premium materials and careful assembly ensure extended service intervals and reduced downtime, translating to lower operating costs over the plant's lifetime. CONSTMACH's focus on durability and serviceability means operators can count on consistent production day after day, project after project.
