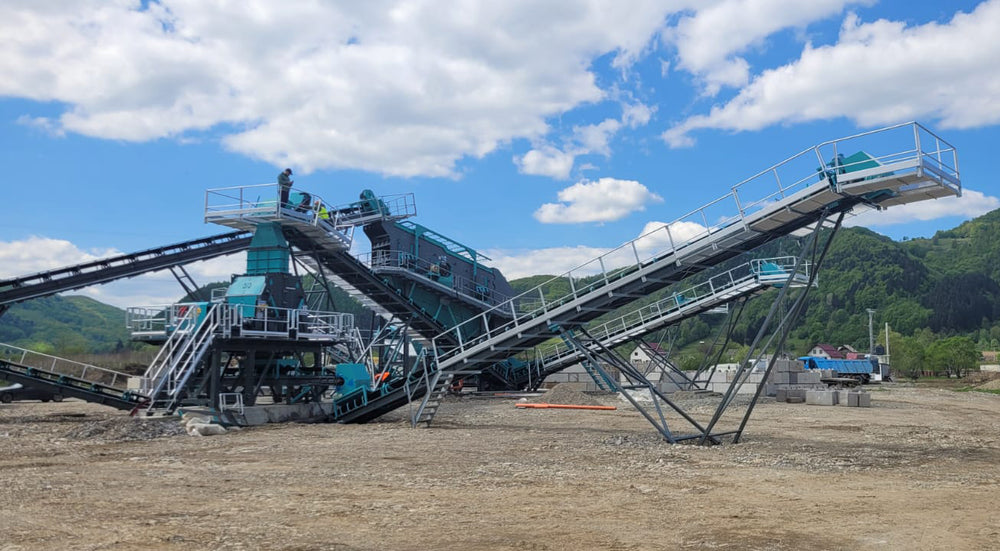

The CBC-650 belt conveyor represents CONSTMACH's commitment to reliable material handling in concrete batching and stone crushing applications. With a 650 mm band width, this conveyor system efficiently manages the weighing, feeding, transfer, and stockpiling operations that form the backbone of aggregate processing facilities. The design philosophy behind this model focuses on durability and continuous operation under demanding industrial conditions.
At the heart of the CBC-650 lies a robust power transmission system. Engineers can configure the unit with either a reducer motor or a traditional motor and reducer combination utilizing V-belt transmission, depending on site requirements and operational preferences. This flexibility allows operators to integrate the conveyor seamlessly into existing infrastructure while maintaining optimal performance. The driving drum features a rubberized and vulcanized surface with diamond grooves, significantly enhancing grip on the belt and preventing slippage during heavy-load operations. Tightening rings on the axis ensure precise alignment and extended service life.
The conveyor belt itself employs a four-layer tarpaulin construction as standard, available in both smooth and ribbed configurations to match specific material characteristics. This multi-layer design provides exceptional tear resistance and load-bearing capacity, essential when handling abrasive aggregates or heavy concrete components. The belt runs on heavy-duty support rollers specifically engineered for mining applications, with dimensions calibrated to the 650 mm width and the anticipated operational demands. These rollers incorporate spherical roller double-row bearings housed in SN-type split casings, facilitating maintenance access while ensuring consistent tracking.
Material buildup prevention is addressed through an RV-shaped rubber scraper positioned adjacent to the transfer drum. This inner scrapper continuously cleans the belt surface, preventing carryback and reducing downtime for manual cleaning. The transfer drum mirrors the driving drum's construction with its rubberized, vulcanized surface and diamond groove pattern, creating a matched pair that maintains belt tension and tracking throughout operation.
The structural framework of the CBC-650 consists of a durable steel chassis designed to withstand the vibrations and stresses inherent in continuous material transport. Walking platforms integrated into the design provide safe access for maintenance personnel, reflecting modern safety standards in industrial equipment. Emergency stop buttons positioned at strategic intervals allow immediate shutdown when necessary, protecting both operators and equipment.
CONSTMACH offers optional dust containment covers for the CBC-650, addressing environmental concerns and regulatory requirements in sensitive locations. This feature becomes particularly valuable when processing fine materials or operating near populated areas. Beyond supplying conveyors as components of complete processing lines, CONSTMACH manufactures custom-sized units to retrofit existing plants, ensuring that operations can upgrade their material handling capabilities without replacing entire systems. The CBC-650 delivers practical performance where industrial applications demand consistent material flow and minimal operational interruption.
