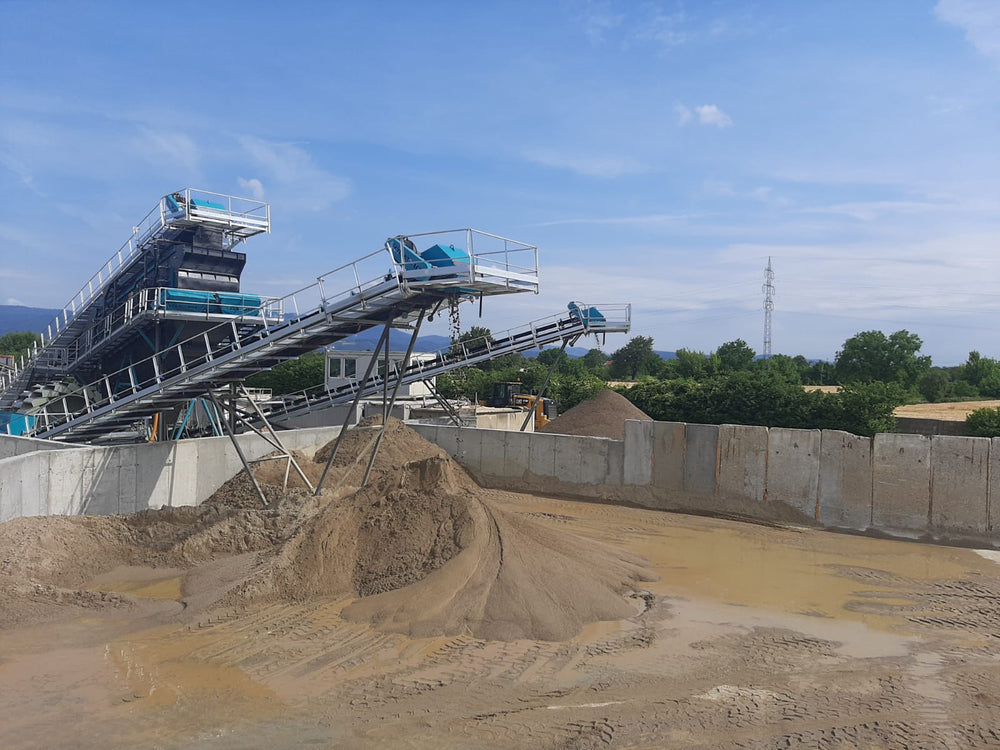

The CBC-1200 belt conveyor represents a robust solution for material transportation in concrete batching plants and stone crushing facilities. With its 1200 mm band width, this conveyor system delivers reliable performance across multiple operational requirements, from weighing and feeding to transferring and stockpiling materials. CONSTMACH has engineered this model to meet the demanding conditions of heavy industrial environments where consistency and durability matter most.
At the core of the CBC-1200 lies a carefully selected power transmission system. Operators can choose between a reducer motor configuration or a traditional motor and reducer setup with V-belt transmission, depending on their specific installation requirements and operational preferences. This flexibility allows the conveyor to adapt to different plant layouts and power availability scenarios. The system's driving mechanism connects to a rubberized and vulcanized drum featuring diamond grooves, which significantly enhances grip on the belt surface. These grooves work in conjunction with tightening rings positioned on the axis to maintain optimal tension and prevent slippage during operation.
The belt itself represents a critical component where quality directly impacts operational efficiency. CONSTMACH equips the CBC-1200 with a 4-tarpaulin quality band as standard specification. Users can select between smooth or ribbed rubber configurations based on their material handling needs. This four-layer construction provides exceptional resistance to wear and tear, particularly important when transporting abrasive materials common in stone crushing operations. The transfer drum mirrors the driving drum's construction with its rubberized, vulcanized surface and diamond groove pattern, ensuring consistent material flow from loading to discharge points.
Supporting the belt throughout its operational cycle are heavy-series support rollers specifically designed for mining applications. These rollers feature spherical roller double row bearings housed in SN-type split housings, which facilitate maintenance and reduce downtime during bearing replacements. The roller dimensions align precisely with the 1200 mm belt width and adjust according to application demands, distributing load evenly and extending belt life. An RV-shaped rubber scraper positioned adjacent to the transfer drum continuously cleans the belt surface, preventing material buildup that could cause tracking problems or spillage.
CONSTMACH addresses environmental concerns through optional dust reduction covers, allowing operators to minimize particulate emissions in sensitive areas. This feature proves particularly valuable in urban locations or facilities with strict environmental compliance requirements. The conveyor's steel chassis provides structural integrity while walking platforms offer safe access for maintenance personnel, and strategically placed emergency stop buttons ensure operator safety remains paramount.
Beyond standard installations within complete CONSTMACH production lines, the company manufactures custom conveyors tailored to specific dimensions for existing plants. This capability enables facility upgrades without requiring complete system overhauls, extending the operational life of older installations while improving their efficiency. The CBC-1200 belt conveyor stands as a testament to practical engineering, where every component serves a defined purpose in creating a reliable material handling system for demanding industrial applications.
