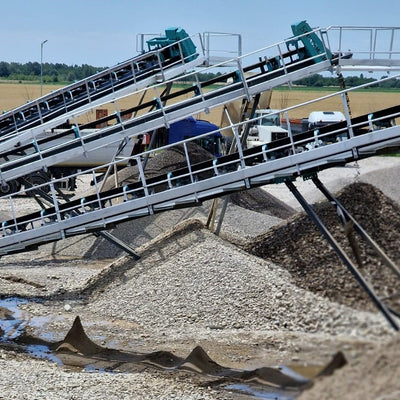

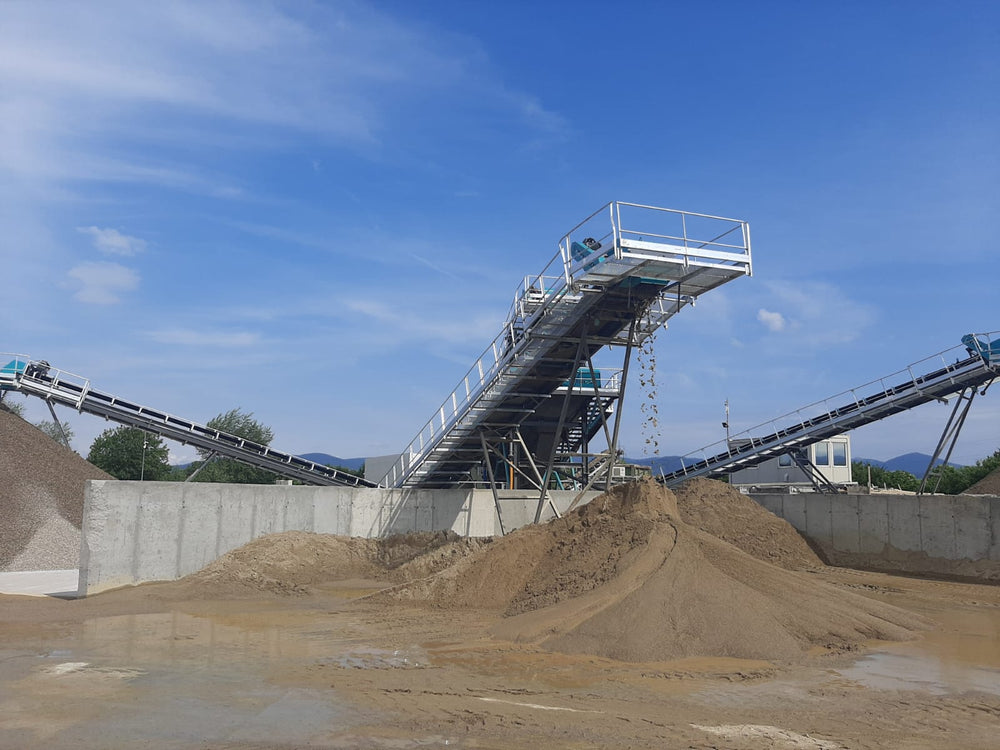

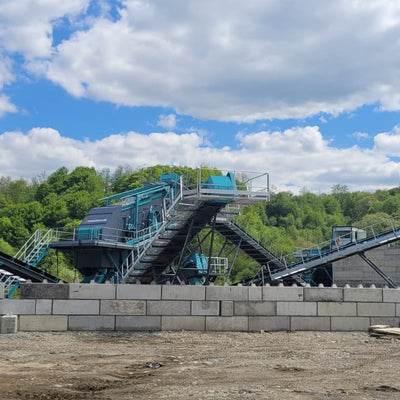

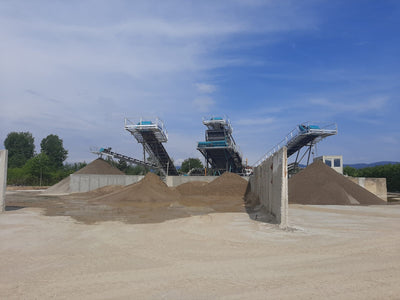

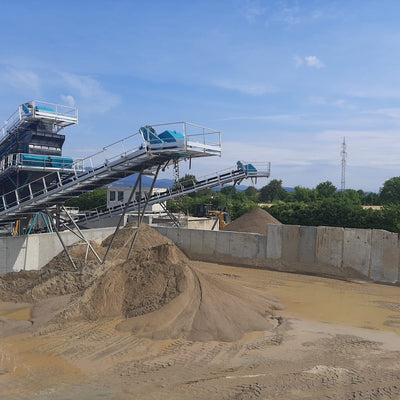

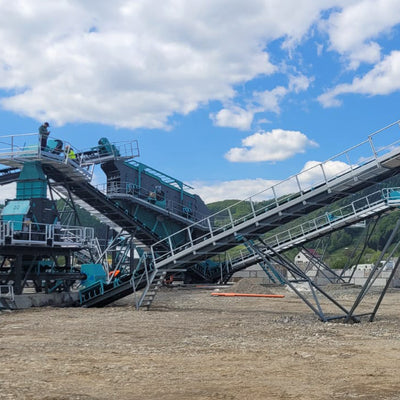

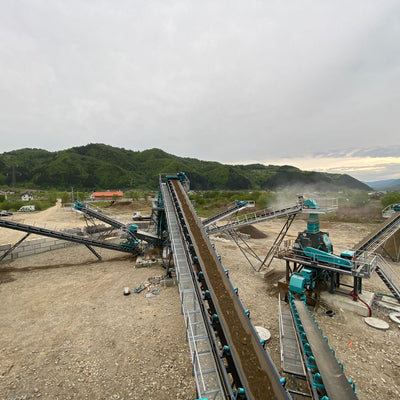

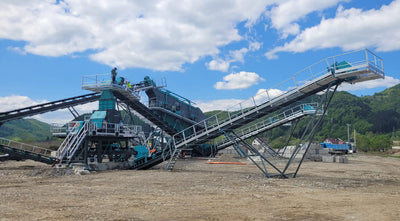

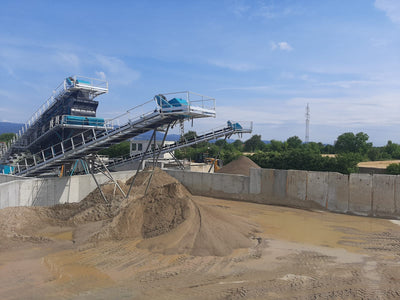

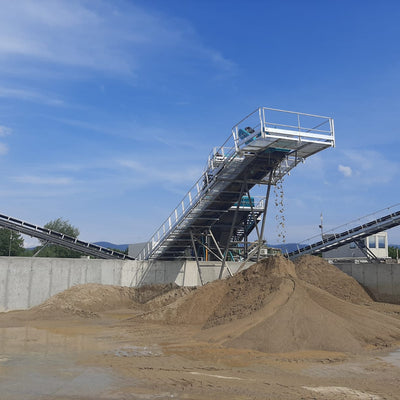

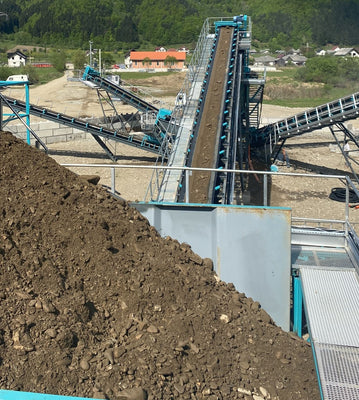

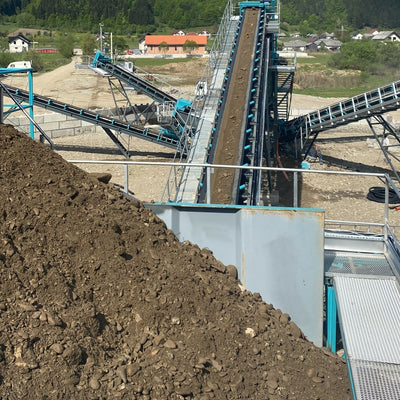

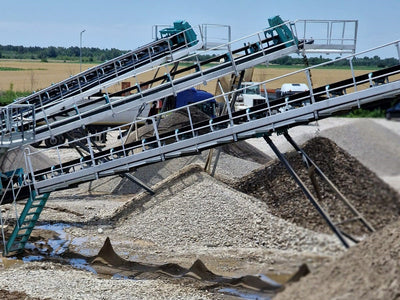

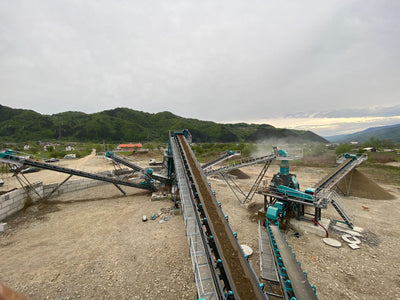

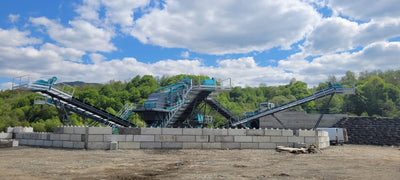

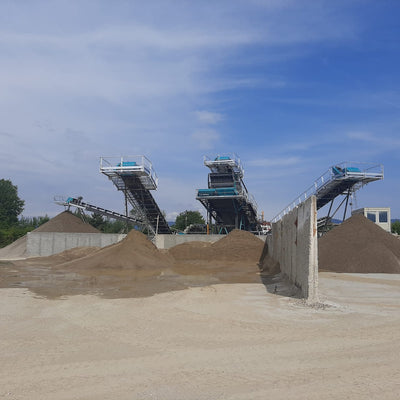

CONSTMACH's CBC-500 belt conveyor represents a carefully engineered solution for material handling in concrete batching and stone crushing applications. With its 500 mm band width, this conveyor is specifically designed to manage the demanding requirements of weighing, feeding, transferring and stockpiling materials in industrial environments where reliability cannot be compromised.
The foundation of the CBC-500's performance lies in its robust construction. Every unit incorporates high-quality, heavy-duty electric motors paired with precision gearboxes that deliver consistent power transmission. This combination ensures smooth operation even under continuous use, which is essential in production facilities that operate multiple shifts. The power equipment can be configured with either a reducer motor or a motor and reducer with V-belt transmission, allowing flexibility based on specific operational needs and site conditions.
Material contact is handled through a premium four-layer rubber band, available in both smooth and ribbed configurations depending on the application requirements. This four-tarpaulin quality band is applied as standard, providing excellent durability and resistance to abrasion. The choice between smooth and ribbed surfaces allows operators to optimize grip and material control based on what's being conveyed, whether it's aggregates, sand, or other bulk materials.
The conveyor's drive system features rubberized and vulcanized drums with diamond grooves. Both the driving drum and transfer drum receive this treatment, which significantly enhances grip on the band and prevents slippage during operation. These drums are fitted with tightening rings on the axis, making tension adjustments straightforward and ensuring the belt maintains proper tracking throughout its service life.
Support and guidance come from heavy-series support rollers specifically rated for mining applications. These rollers are sized according to belt width and intended use, distributing load evenly and minimizing wear on the rubber band. The bearings supporting these rollers are spherical roller double row types housed in SN split housings, which simplifies maintenance and replacement when needed.
Material buildup is controlled through an RV-shaped rubber scraper positioned next to the transfer drum. This inner scrapper prevents accumulation on the return side of the belt, maintaining efficiency and reducing maintenance intervals. The scraper design ensures effective cleaning without causing excessive wear on the band surface.
The structural chassis is built from durable steel, engineered to withstand the vibrations and stresses inherent in material handling operations. Walking platforms integrated into the design provide safe access for maintenance personnel, and emergency stop buttons are strategically placed for immediate response to any operational issues.
CONSTMACH offers conveyor coverage as an optional feature for facilities concerned about dust emissions. This enclosure reduces material loss and improves environmental compliance, particularly important in urban or environmentally sensitive locations.
Beyond standard product line offerings, CONSTMACH manufactures custom conveyors to integrate with existing plants. These bespoke units are built to client-specified dimensions and requirements, ensuring seamless integration with current operations. This flexibility makes the CBC-500 platform adaptable to retrofit projects and plant expansions where standard configurations might not fit.
The CBC-500 delivers practical, dependable material handling backed by components selected for longevity and maintainability, making it a solid choice for operations that value uptime and consistent performance.
