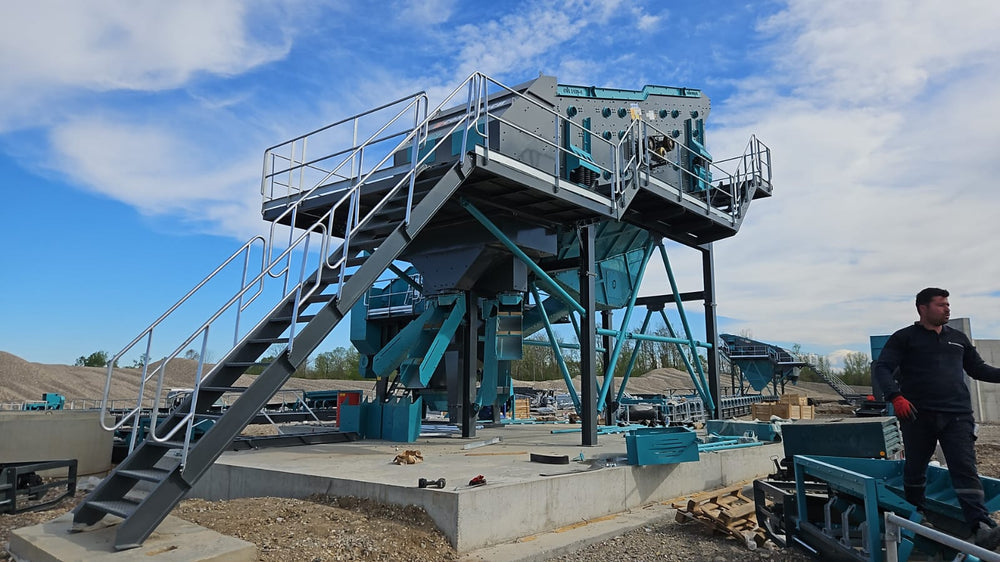

CVS-2050 Vibrating Screen 170-220 T/H

The CVS-2050 represents a robust solution for industrial screening operations, delivering consistent performance across diverse material types while maintaining throughput rates between 170 and 220 tons per hour. This model combines mechanical reliability with practical design elements that address real-world operational demands in aggregate processing and concrete production facilities.

Built around a modular framework, the CVS-2050 allows operators to reconfigure deck arrangements based on specific project requirements. The system accommodates single, double, triple, or quad deck setups, with each configuration serving distinct separation needs. This flexibility proves particularly valuable in operations handling varying material sizes or switching between different production specifications. The 10-square-meter screening surface measures 2,000 by 5,000 millimeters, providing adequate area for material distribution and classification.

Drive configuration options include top-mounted and center-driven variants, each suited to different installation environments and maintenance preferences. The precision-machined eccentric shaft, manufactured from forged steel and ground to exact specifications, generates the screening motion essential for effective material separation. This component undergoes stress-relieving processes to enhance durability under continuous operation. Superior bearing integration ensures optimal power transfer while minimizing wear, with components sourced from established manufacturers including SKF, FAG, Timken, and NSK. Operators can select between grease or oil lubrication systems depending on maintenance schedules and environmental conditions.

Screen media selection directly impacts separation efficiency. The CVS-2050 accepts both steel wire mesh and polyurethane panels, allowing adaptation to material hardness levels. Polyurethane options extend service life when processing abrasive materials, while steel meshes handle high-temperature applications effectively. Deck support frames come in crowned or flat configurations, with stress-relieved construction preventing premature failure under vibrational loads.

The feedbox and discharge components feature bolted and welded construction with abrasion-resistant steel liners. These replaceable elements simplify maintenance by allowing section-by-section renewal rather than complete assembly replacement. Huck bolt fasteners throughout the structure provide consistent clamping force that resists loosening from continuous vibration, reducing unplanned downtime.

Power requirements scale with deck configuration, ranging from 15 to 22 kilowatts depending on material characteristics and throughput targets. Operating weights span 16,500 to 18,200 kilograms across the configuration range, considerations that influence foundation design and installation planning.

CONSTMACH's approach to vibrating screen manufacturing prioritizes field serviceability alongside production capacity. Component standardization across the product line means replacement parts remain accessible, while the straightforward design enables maintenance crews to perform routine tasks without specialized tooling. For aggregate producers and ready-mix operations requiring dependable classification equipment, the CVS-2050 delivers the essential combination of screening performance and operational practicality that keeps processing lines running efficiently.
