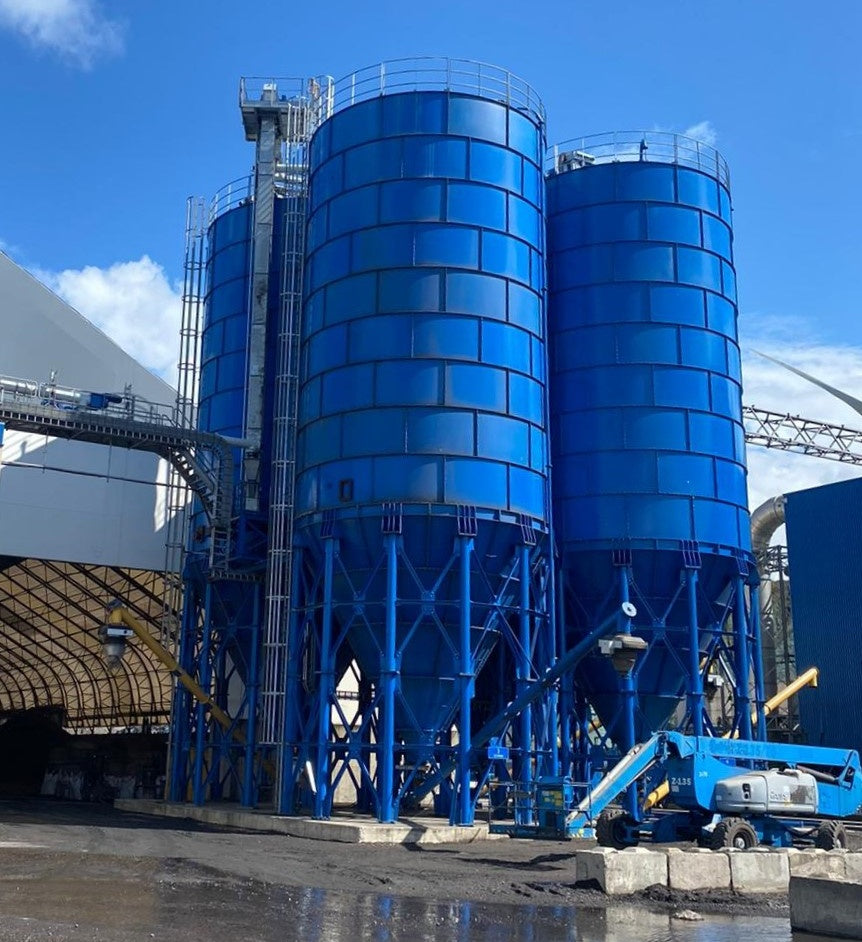

CONSTMACH's CS-1000 represents a significant step forward in bulk material storage solutions for industrial applications. This bolted-type cement silo, designed to hold 1000 tonnes of cement or similar powdered materials, addresses the demanding requirements of cement terminals, manufacturing facilities, and limestone powder storage operations where reliability and capacity are non-negotiable.
The engineering behind the CS-1000 reflects years of experience in understanding what industrial operations truly need. Standing at 20,840 mm in height with a diameter of 8,250 mm, this silo provides substantial storage volume while maintaining structural integrity under full load conditions. The design incorporates eight robust support legs constructed from 273 x 10 mm steel pipes, reinforced with 100 mm C-channel supports. This foundation ensures stability even in challenging environmental conditions, and the maintenance platform positioned between the legs allows safe access for routine inspections and servicing.
What sets the CS-1000 apart is its comprehensive approach to functionality. The silo comes fully equipped with essential operational components that many competitors offer as optional extras. A cement filling pipe facilitates efficient material loading, while both inner and outer manholes provide multiple access points for maintenance and inspection. Safety features are built into the design rather than added as afterthoughts—roof-mounted handrails, safety guards, and designated flanges for air filters and pressure safety valves demonstrate this commitment. The roof gate covering the inner manhole and the cone flange fitted with a butterfly valve for manual discharge complete the thoughtful design package.
CONSTMACH delivers the CS-1000 as a complete system rather than just a storage vessel. The package includes a cement screw conveyor customizable to your required diameter and length specifications, ensuring seamless material handling. An air filter maintains material quality by preventing contamination, while a pressure safety valve protects against over-pressurization events. Top and bottom level indicators give operators precise control over inventory management. Air fluidization nozzles ensure consistent material flow, preventing the bridging and rat-holing issues that plague many bulk storage operations. For cement terminal applications, the screw conveyor can be directly connected to a loading bellow, streamlining the truck-loading process and reducing material loss during transfer.
The manufacturing process behind the CS-1000 combines precision with practicality. All 191 components are produced using advanced laser cutting and drilling methods, ensuring exact tolerances and perfect fit during assembly. This precision manufacturing translates into straightforward on-site installation. The bolted construction method means components can be transported efficiently and assembled without specialized welding equipment, reducing both installation time and costs. Field teams appreciate how the pre-drilled holes and accurately cut panels fit together seamlessly, eliminating the frustrations often associated with large-scale silo assembly.
Structural integrity isn't left to chance. CONSTMACH employs ANSYS Workbench CAE software for comprehensive static load and mechanical calculations. This sophisticated analysis ensures the CS-1000 can handle its full 1000-tonne capacity without deformation under any operating conditions. The conical section, constructed from 10 mm ST-37 steel sheet metal and supported by 160 mm steel C-channels, distributes loads effectively to the leg structure. The main body utilizes varying thicknesses of ST-37 sheet metal—8 mm, 6 mm, and 5 mm—strategically selected based on stress analysis for each section. Even with its substantial 72,000 kg weight, the silo's engineering ensures long-term performance without compromising safety margins.
Protection against corrosion receives serious attention in the CS-1000's finish. A multi-layer coating system begins with an anticorrosive primer, followed by two layers of final coat epoxy paint. This treatment achieves a total thickness of 140 microns, providing robust protection against the harsh conditions typical in cement and aggregate operations. The investment in quality coating extends the silo's service life significantly, reducing maintenance requirements and protecting your capital investment.
The CS-1000 serves diverse applications beyond traditional cement storage. Limestone powder, fly ash, and other fine materials with similar flow characteristics can be stored effectively. The 300 mm diameter output ensures adequate discharge rates for high-volume operations, while the fluidization system maintains material flowability regardless of storage duration. Whether you're operating a batching plant requiring consistent cement supply or managing a distribution terminal handling multiple daily loads, the CS-1000 adapts to your operational rhythm.
CONSTMACH's approach to the CS-1000 demonstrates that industrial equipment can combine robust engineering with practical usability. This silo doesn't just store material—it becomes an integrated component of your production or distribution system, contributing to operational efficiency through thoughtful design and reliable performance.
