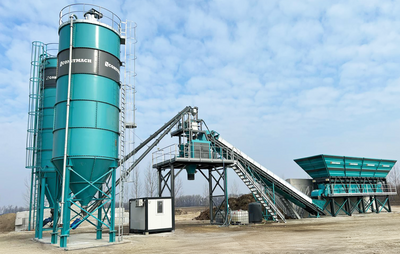

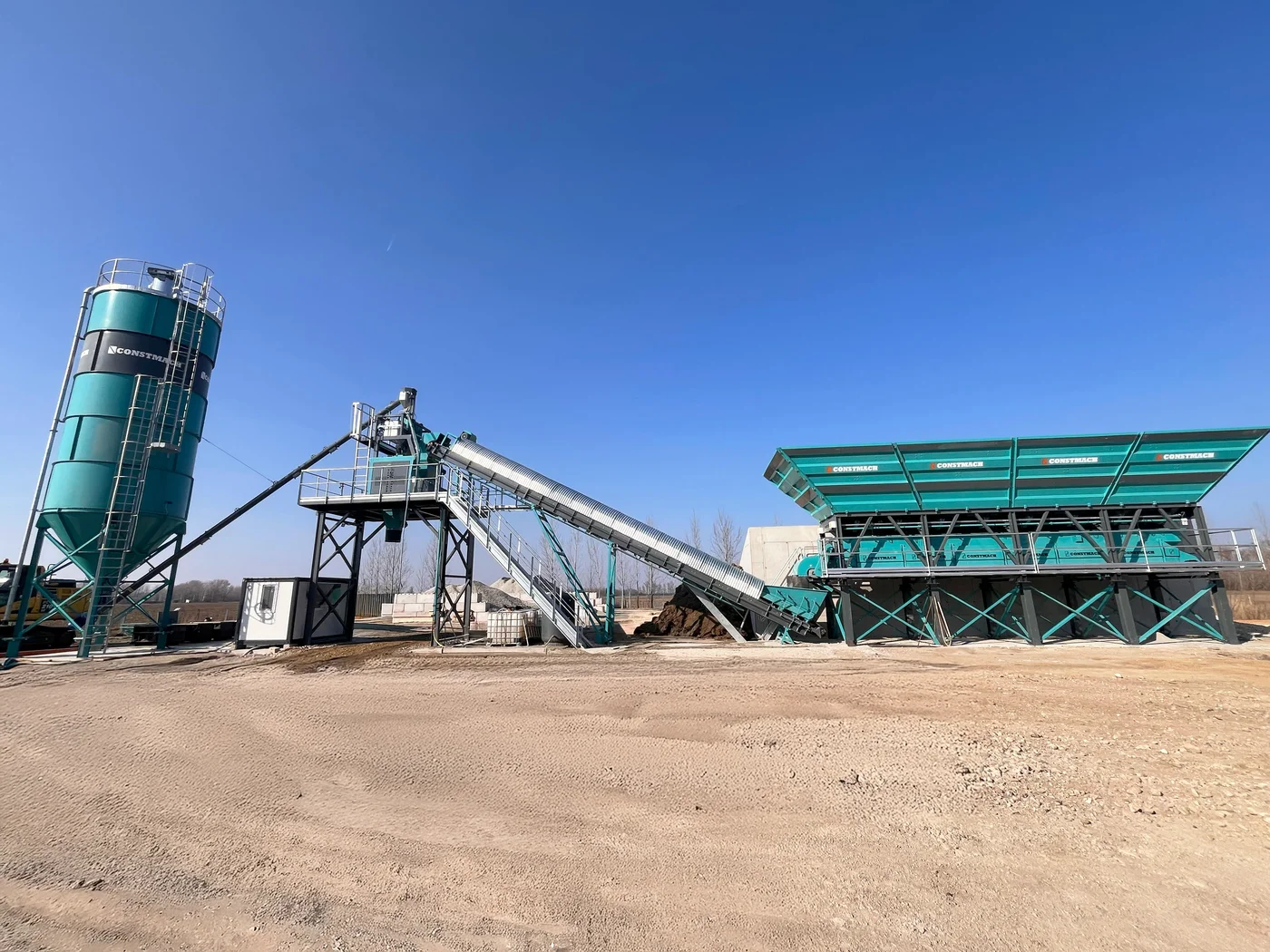

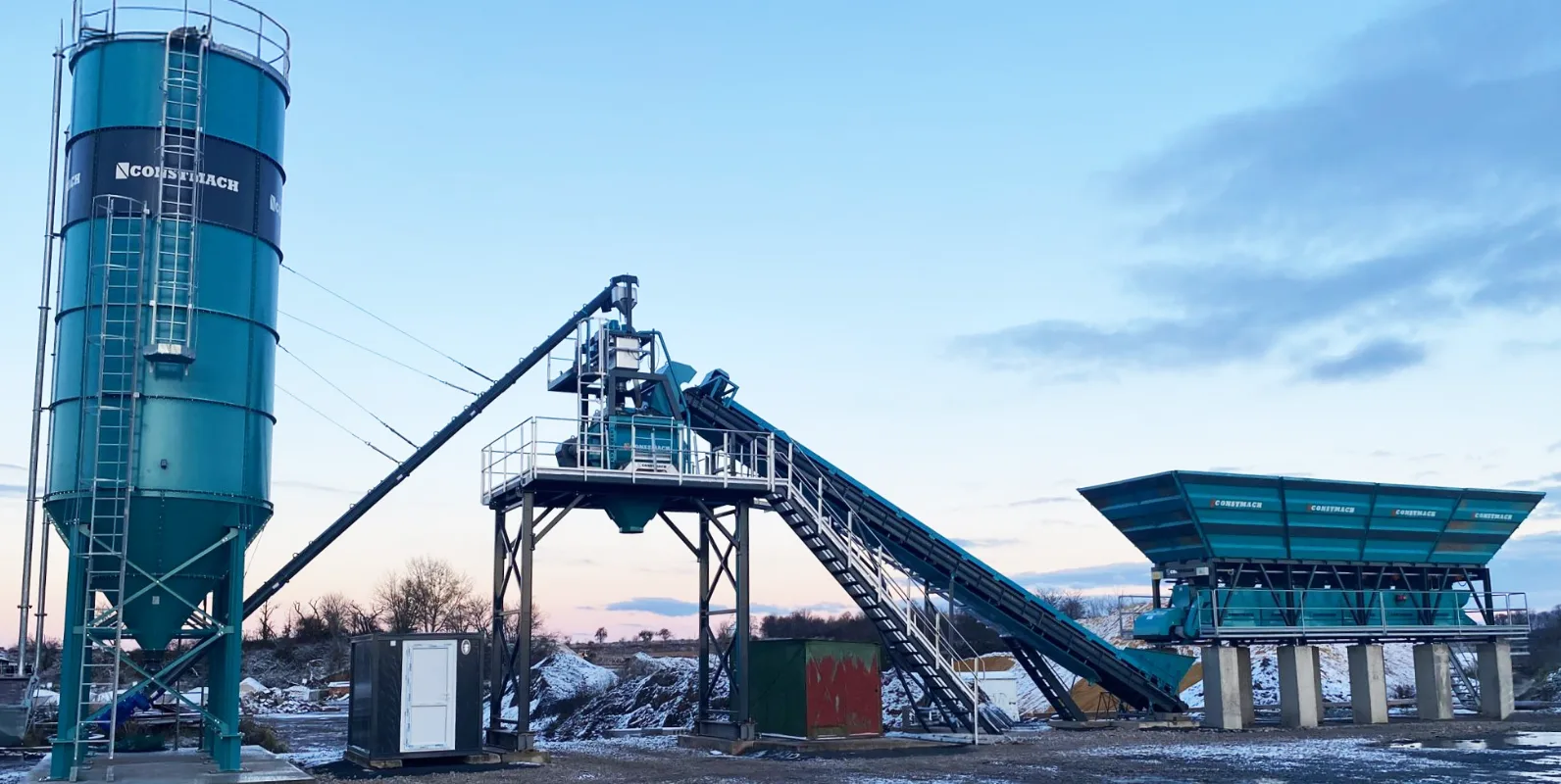

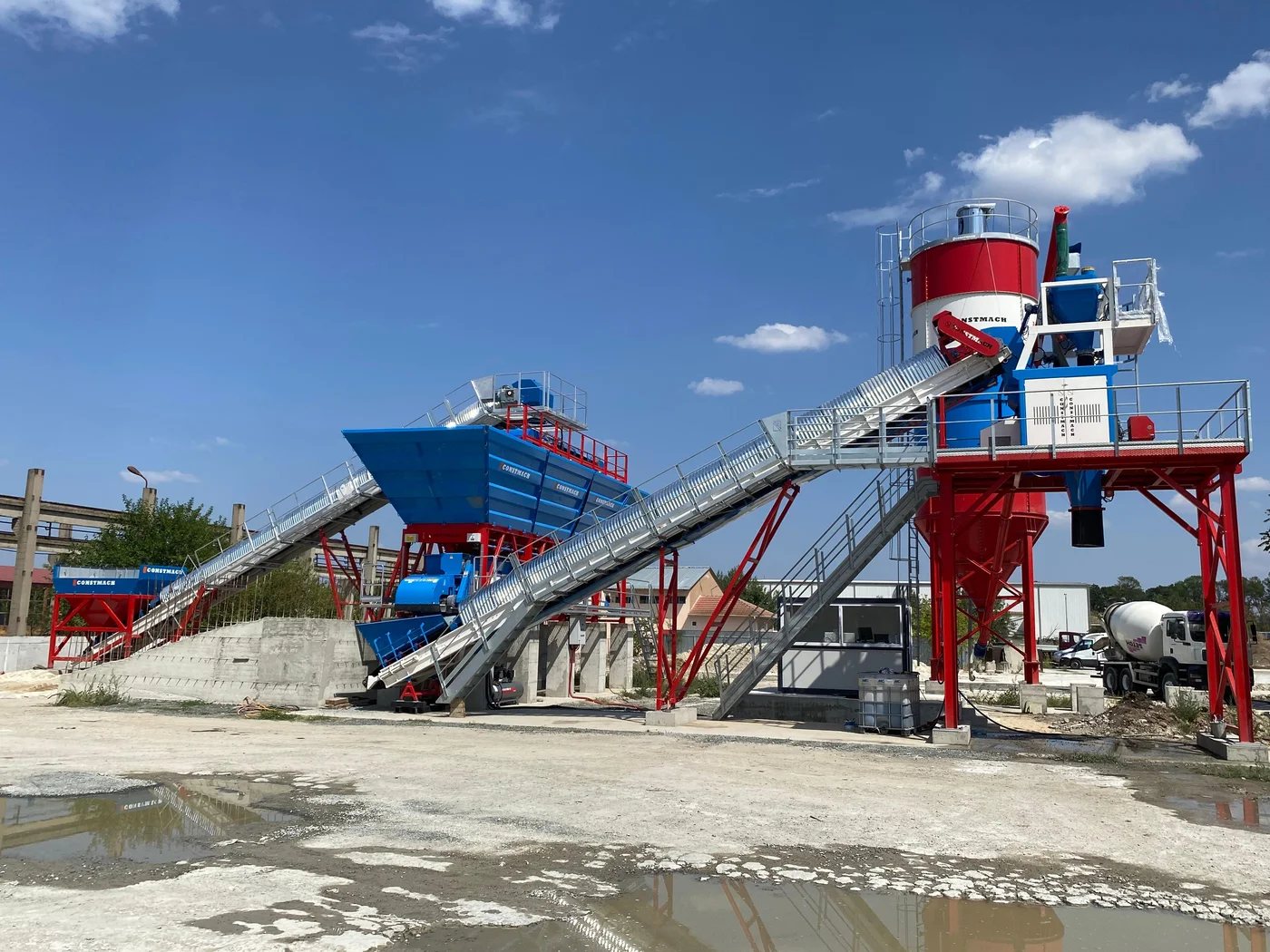

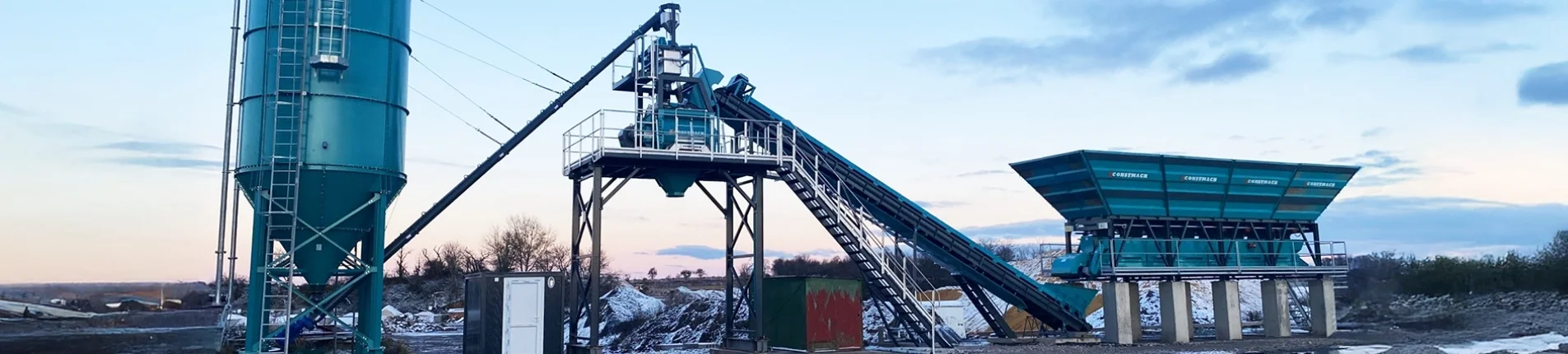

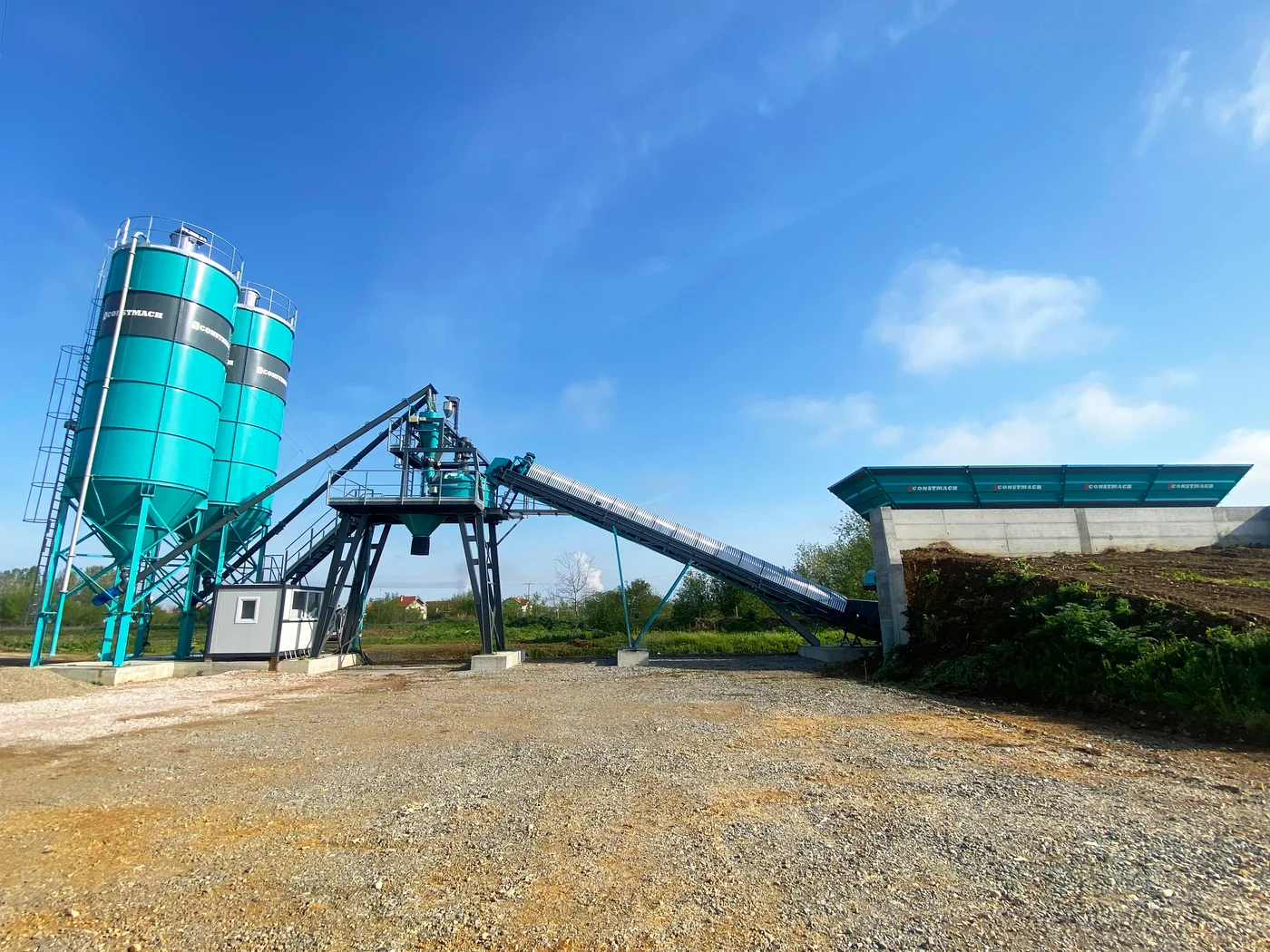

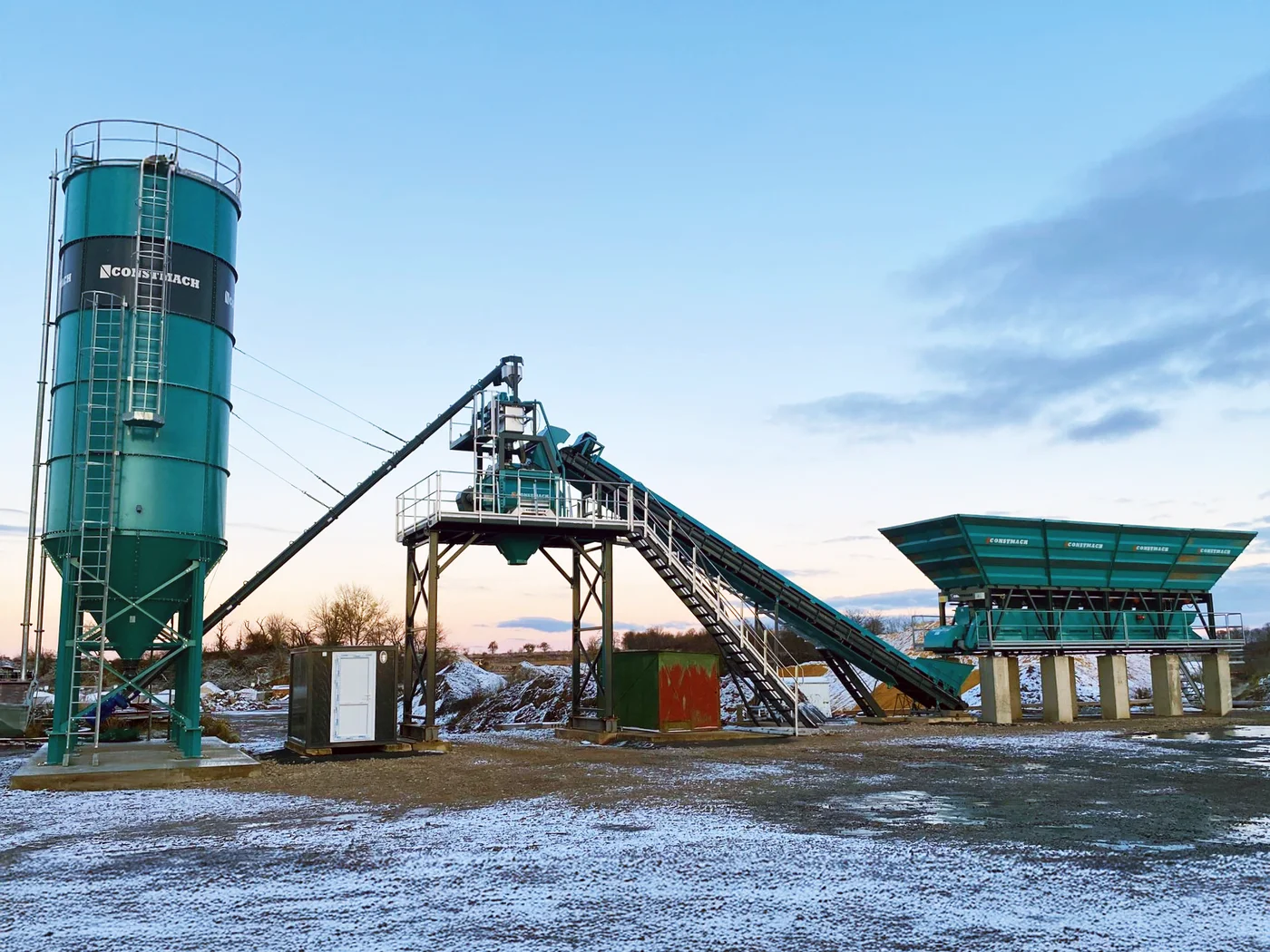

The CONSTMACH COMPACT 60 represents a breakthrough solution for concrete producers facing space limitations without compromising on output capacity. This fully automatic concrete batching plant delivers an impressive production rate of 60 m³/h while maintaining a remarkably compact footprint. It's specifically engineered for projects where every square meter counts, yet production demands remain high.

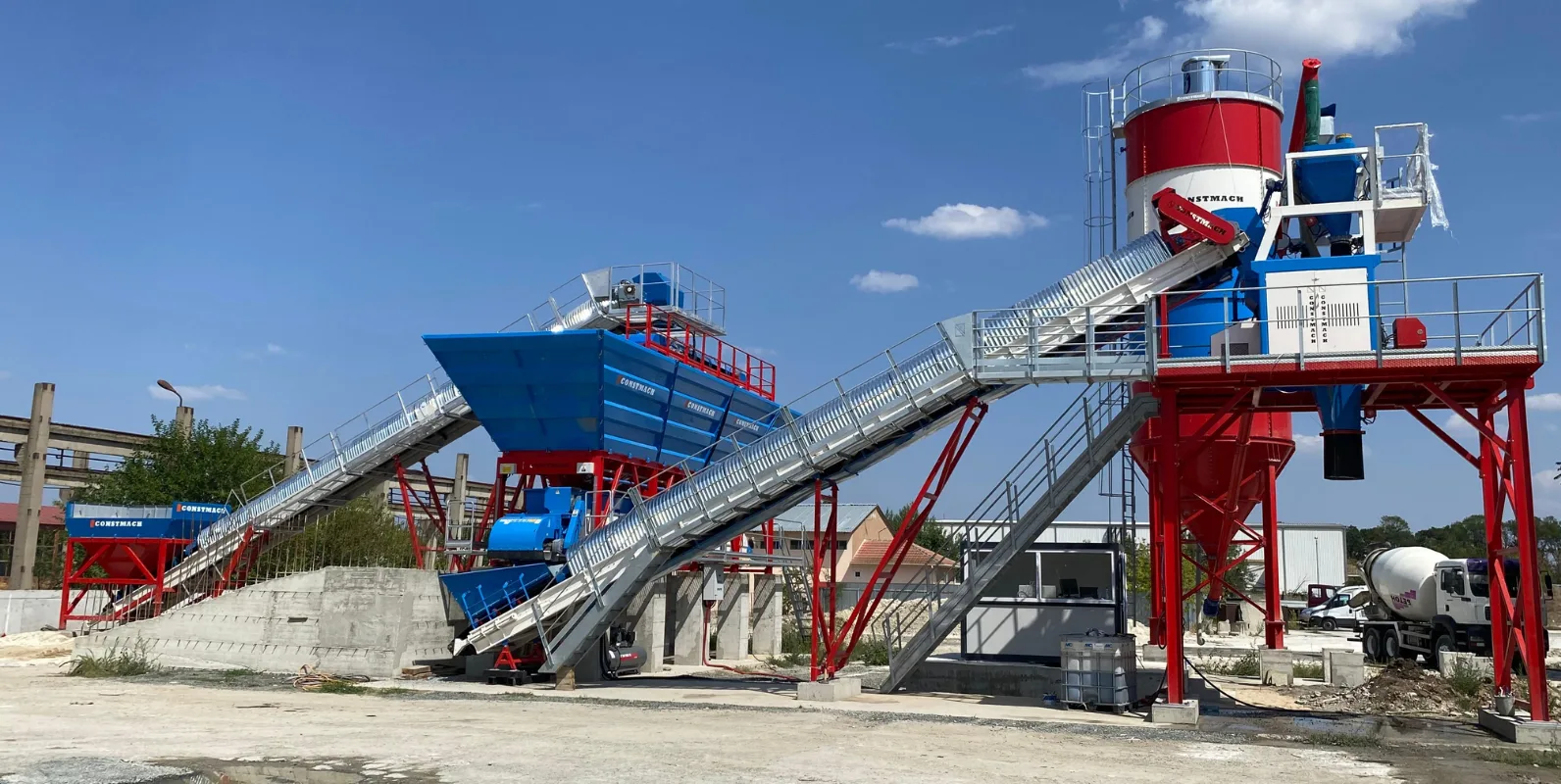

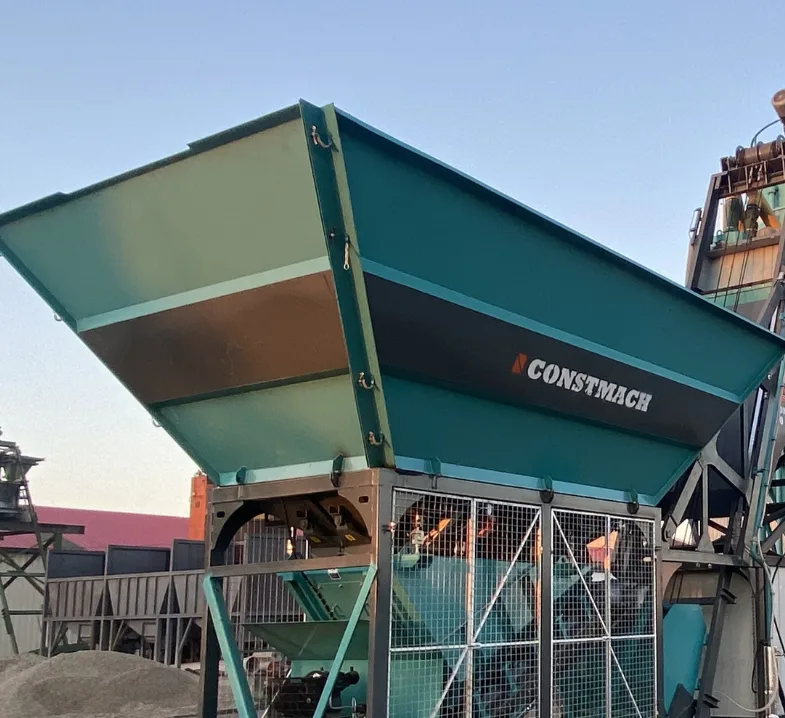

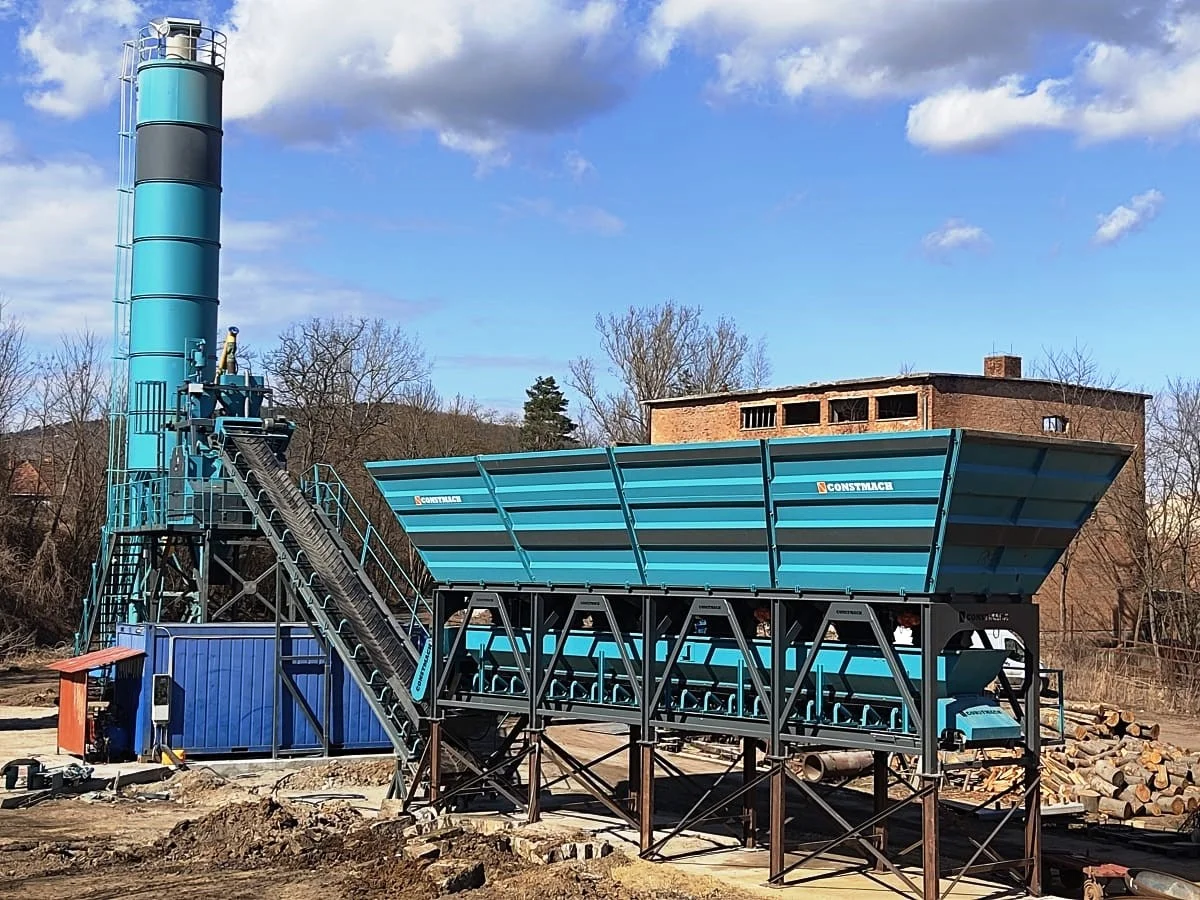

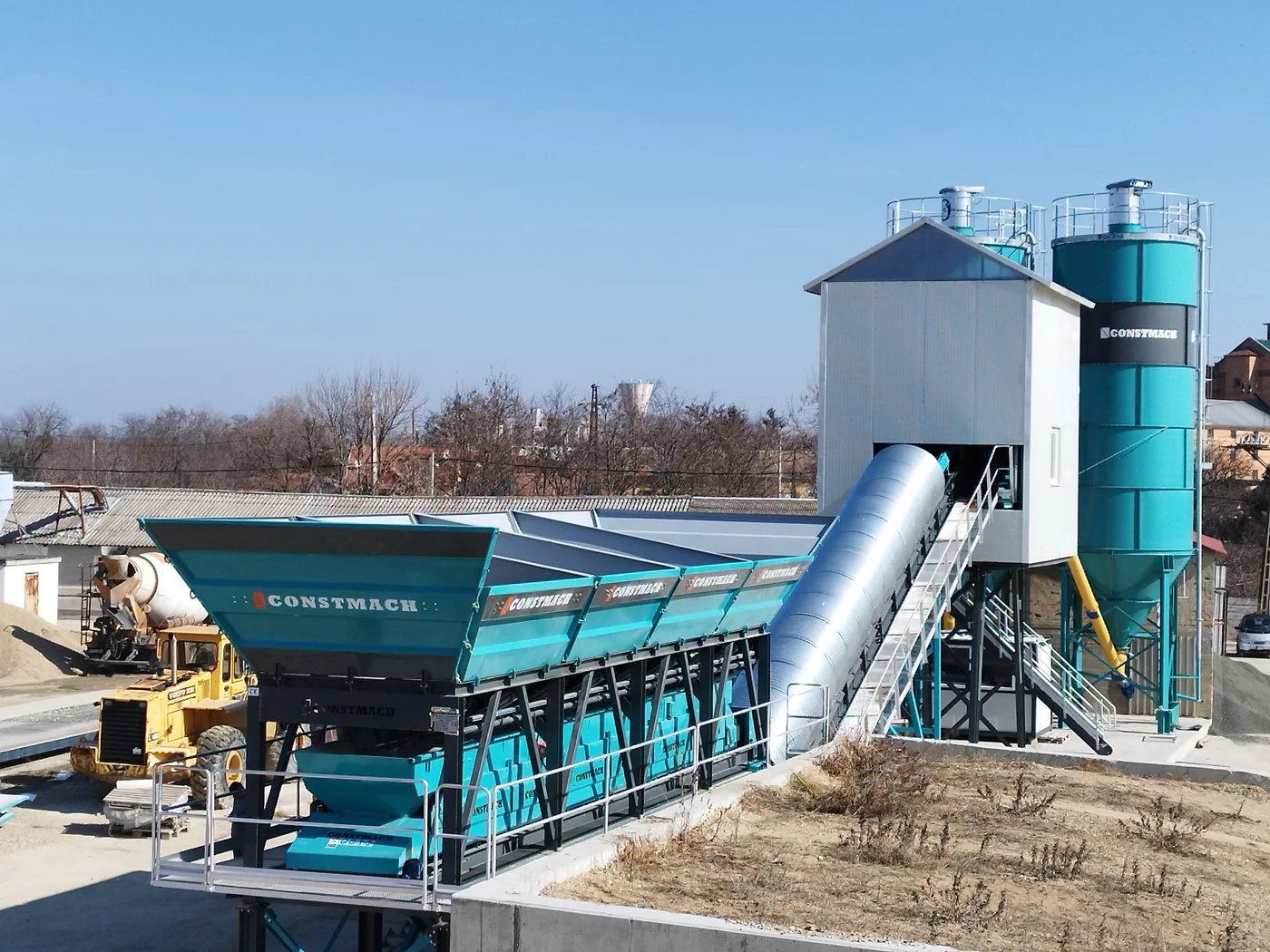

What sets the COMPACT 60 apart is its flexible aggregate storage system. Operators can choose between two distinct hopper configurations based on their site requirements. The linear arrangement follows the traditional stationary plant layout, while the square configuration mirrors the design principles found in mobile batching plants and the smaller Compact 30 model. This square setup offers exceptional portability—the entire plant fits within a single tractor-trailer unit or a 40-foot open-top container, making relocation straightforward and cost-effective.
The plant's minimal infrastructure requirements translate directly into financial savings. Site preparation couldn't be simpler: a flat concrete surface capable of supporting the plant's total weight is all that's needed. Cement silos come equipped with full steel legs, eliminating the need for clients to construct concrete foundations. Metal walls integrated into both sides of the plant allow for quick preparation of the aggregate filling ramp without building permanent concrete structures. This design philosophy means operators can be up and running in a fraction of the time compared to traditional installations.
COMPACT 60 offers remarkable versatility in mixing technology. Depending on production requirements, the plant accommodates twin shaft, single shaft, pan, or planetary mixers. This adaptability makes it suitable for various concrete production applications—ready-mixed concrete for construction sites, dry-mixed concrete for specialized applications, and precast concrete for manufacturing components. The 1 m³ wet concrete volume mixer ensures consistent batch quality regardless of the chosen mixer type.

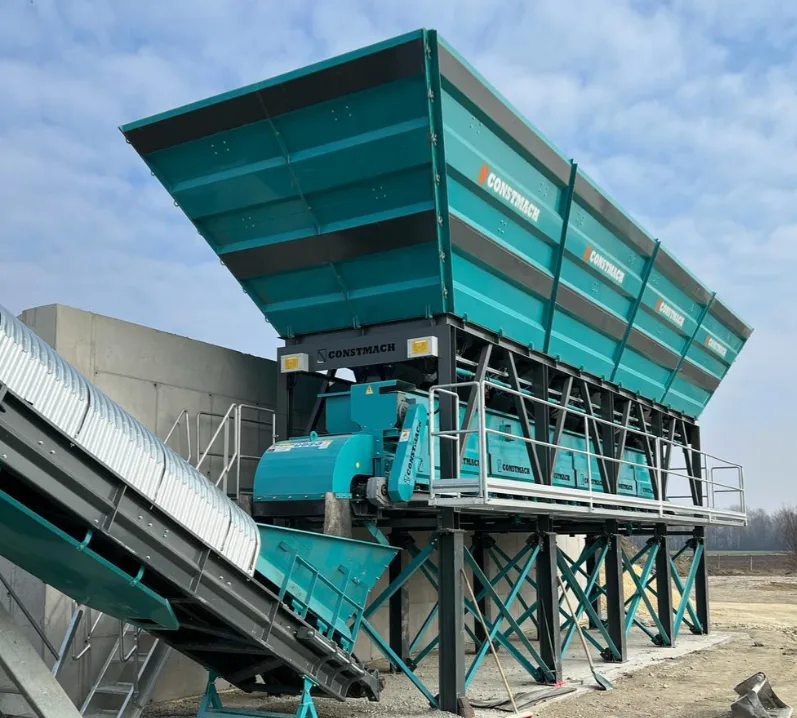

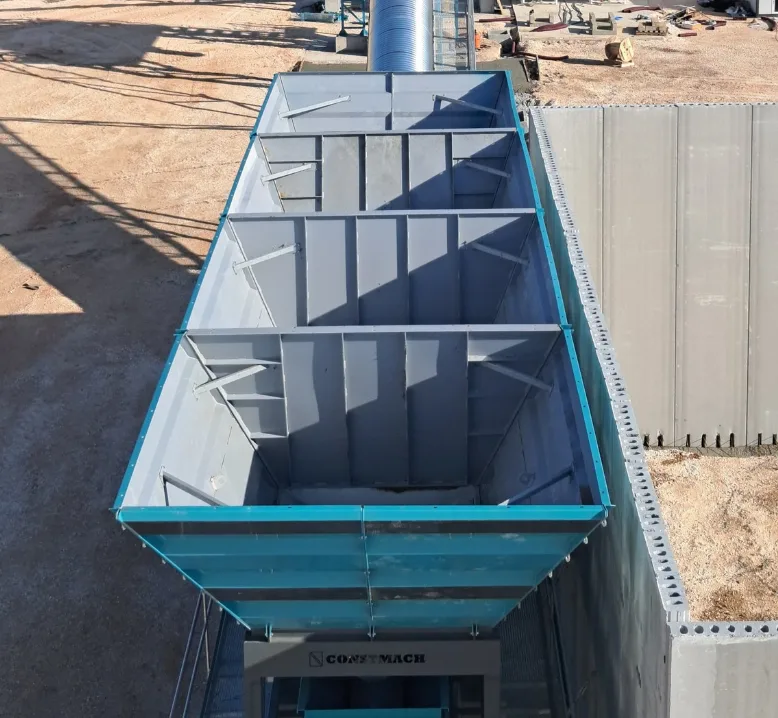

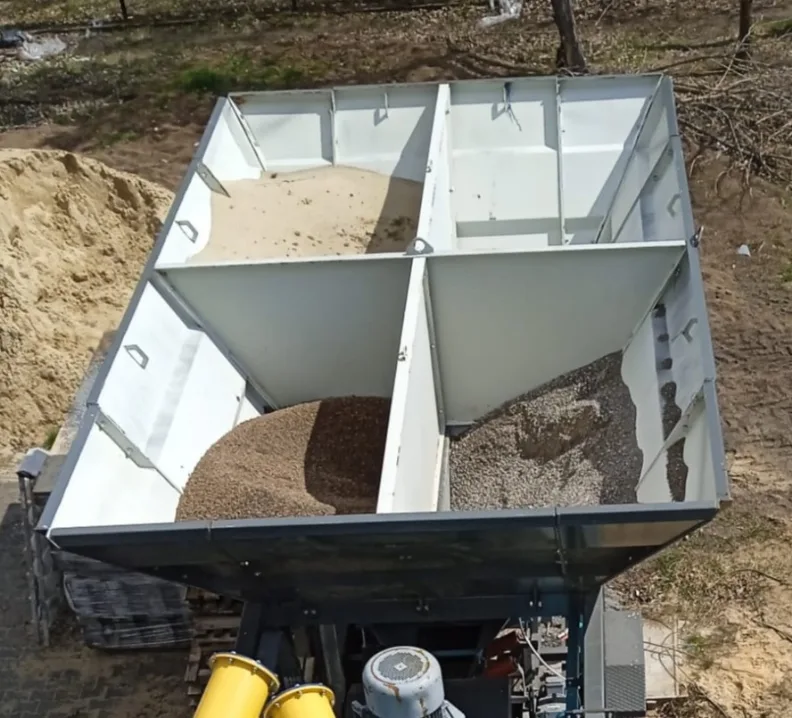

The aggregate system features four compartments, each with a 15 m³ capacity, feeding into a 1.5 m³ weighing hopper. Material handling relies on two belt conveyors: an 800 x 12,000 mm weighing conveyor and an 800 x 25,000 mm transfer conveyor, ensuring smooth and precise aggregate delivery. The cement weighing hopper handles 600 kg per batch, while the water system manages 300 liters. For admixtures, a dedicated 20-liter weighing hopper allows precise dosing of chemical additives. A 300-liter, 5.5 kW air compressor powers the pneumatic systems throughout the plant.

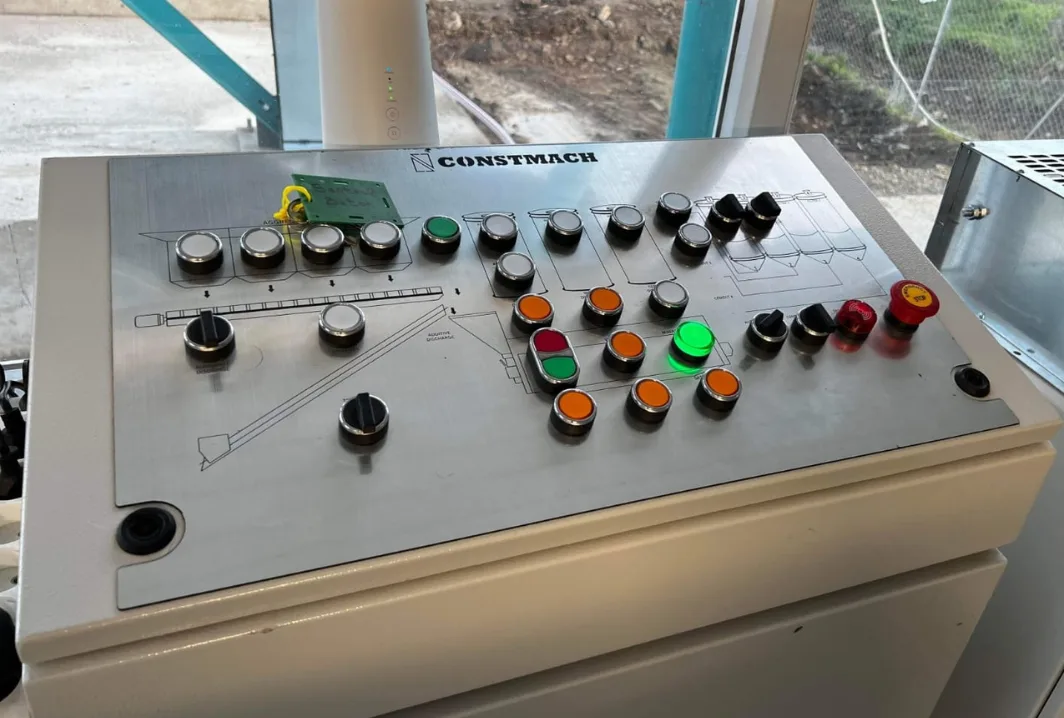

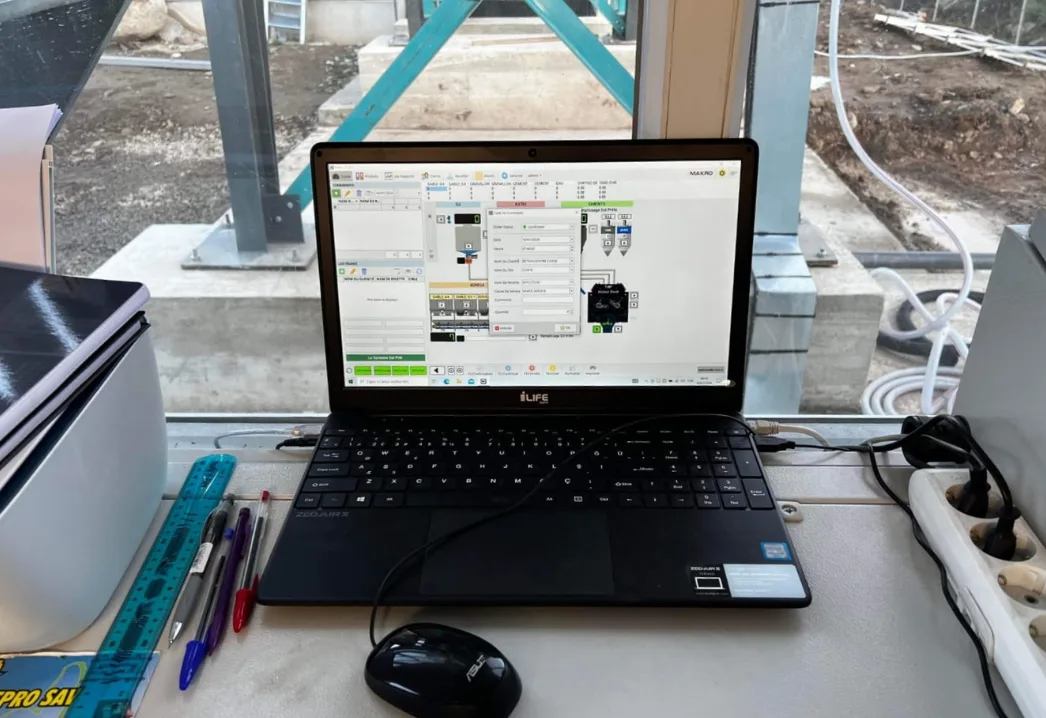

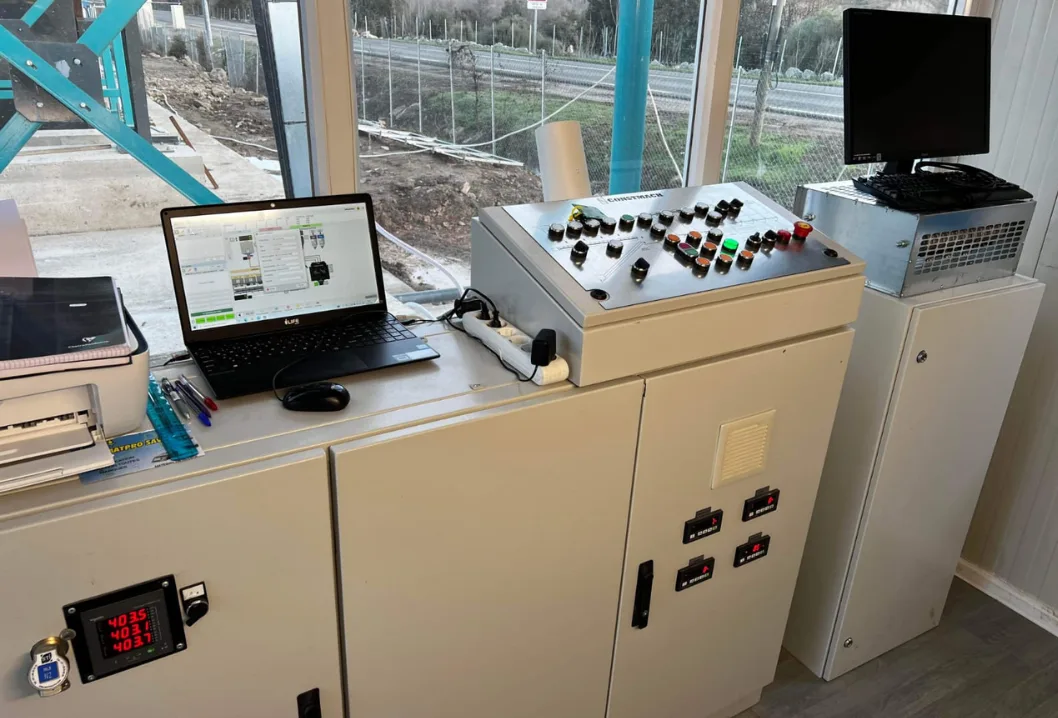

Automation forms the backbone of the COMPACT 60's operation. The control system utilizes premium SIEMENS and SCHNEIDER electronic components paired with advanced PLC technology. The sophisticated software features an intuitive interface that simplifies operation without sacrificing functionality. Operators can monitor and adjust every aspect of production through the fully automatic control system, ensuring consistency and reducing the margin for human error.
The plant operates efficiently within a 300 m² footprint, and when configured with the square hopper arrangement, transport dimensions measure just 13 meters in length, 2.3 meters in width, and 2.3 meters in height. At 18,000 kg total weight, the plant remains manageable for transport while maintaining robust construction quality. The total motor power of 105 kW requires a 125 kVA electric generator for operation. CONSTMACH manufactures the COMPACT 60 in full compliance with CE standards, ensuring it meets European safety and quality regulations.

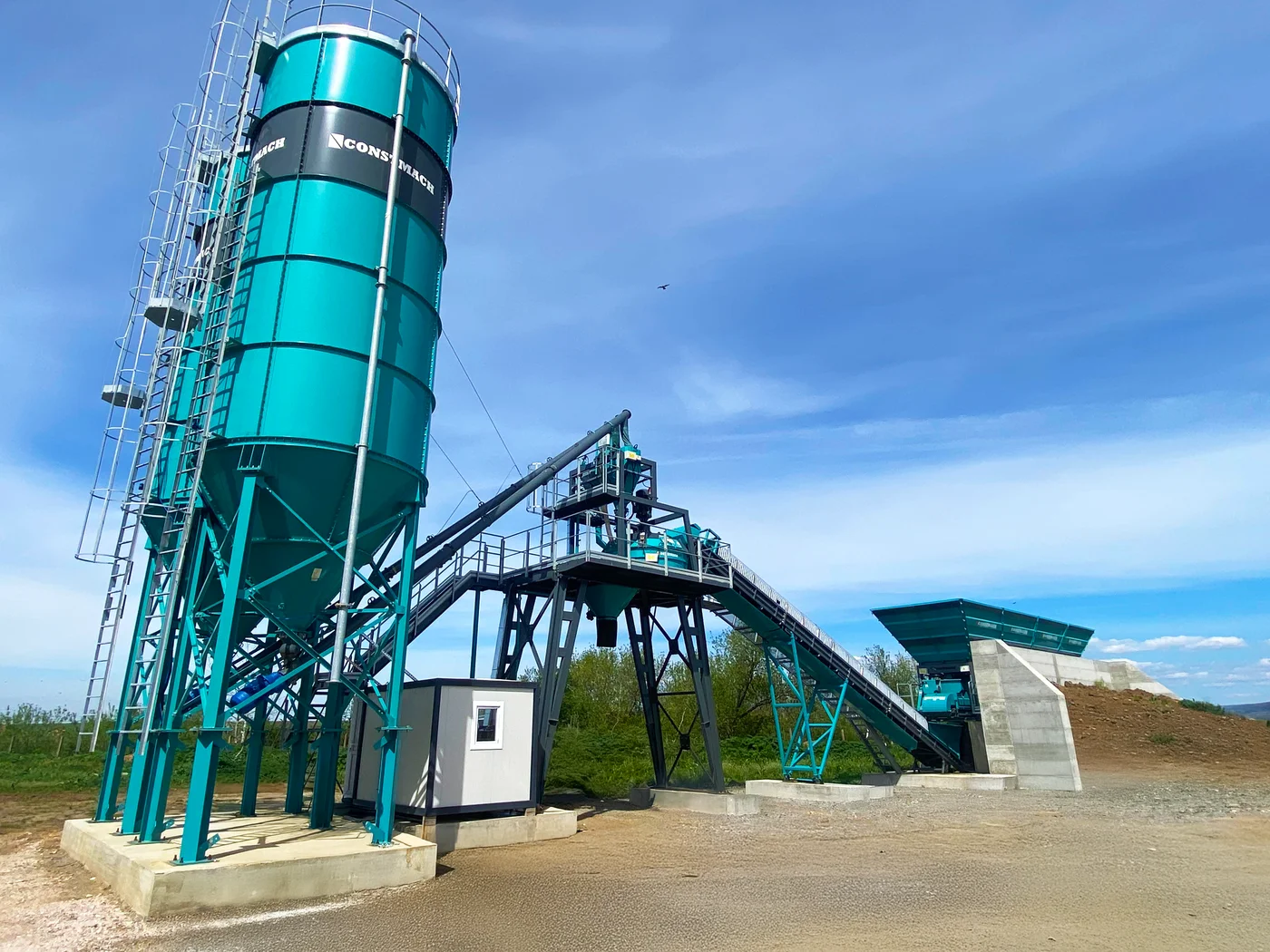

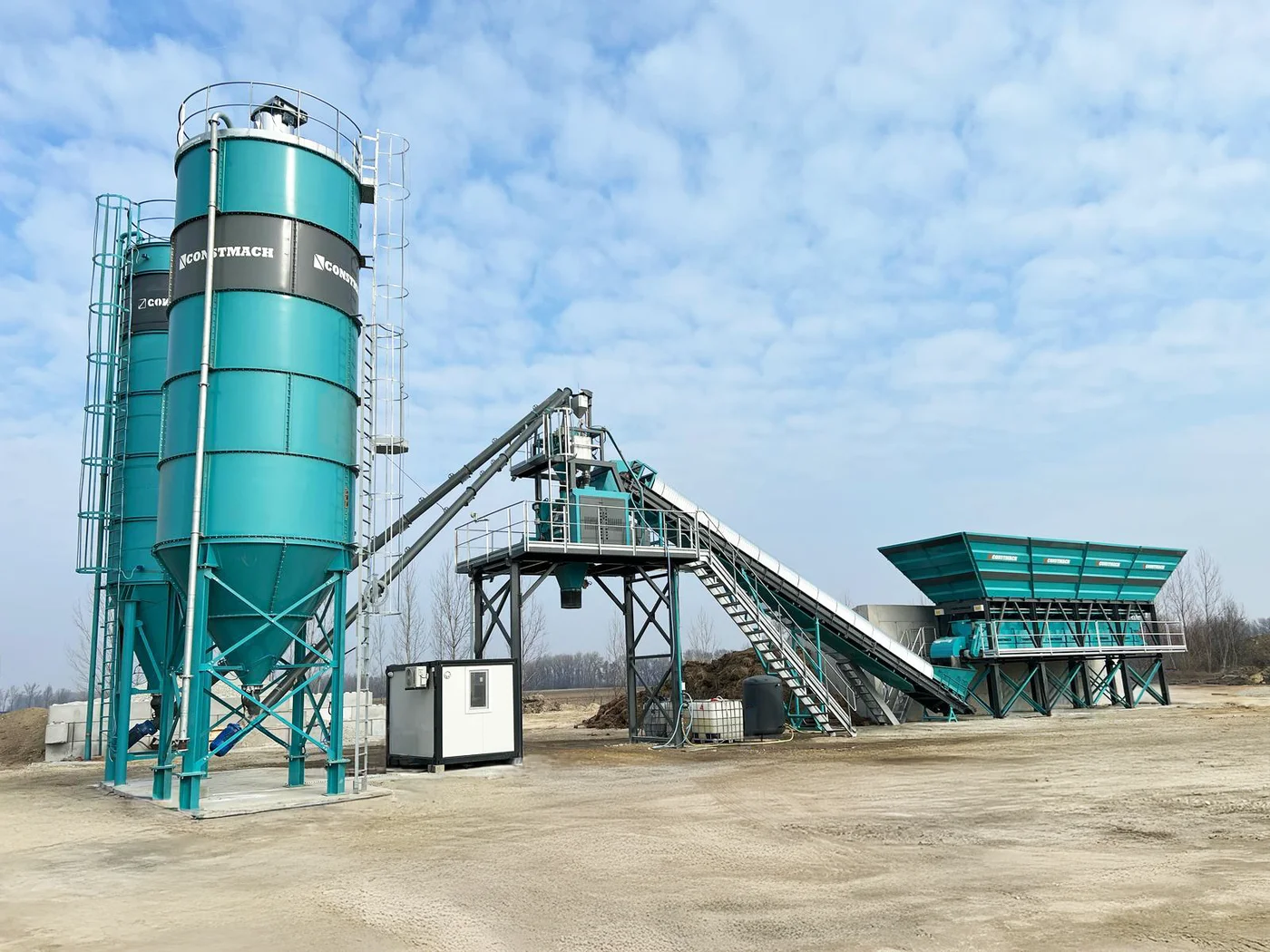

Cement storage is customizable based on project scale, with silo options ranging from 50 to 200 tonnes capacity. This flexibility allows operators to match storage capacity precisely to their production cycles and delivery schedules, optimizing both space utilization and operational efficiency. The COMPACT 60 proves that compact design and high-capacity production aren't mutually exclusive—it's engineered for businesses that refuse to compromise on either.
