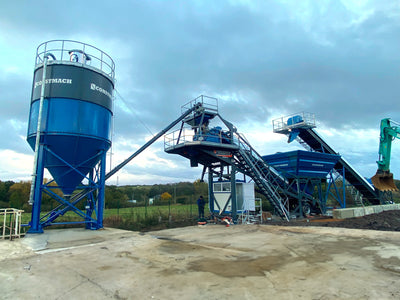

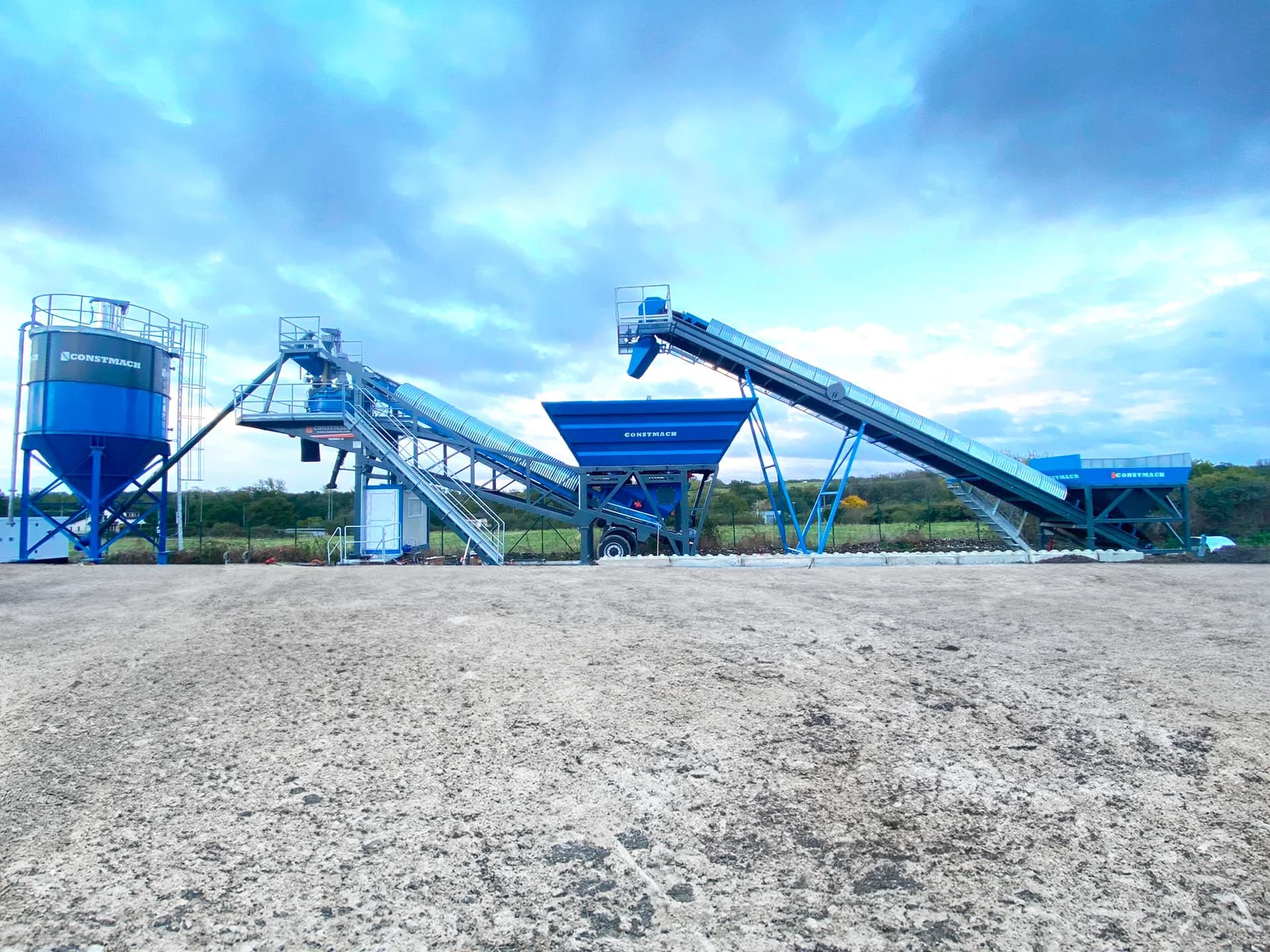

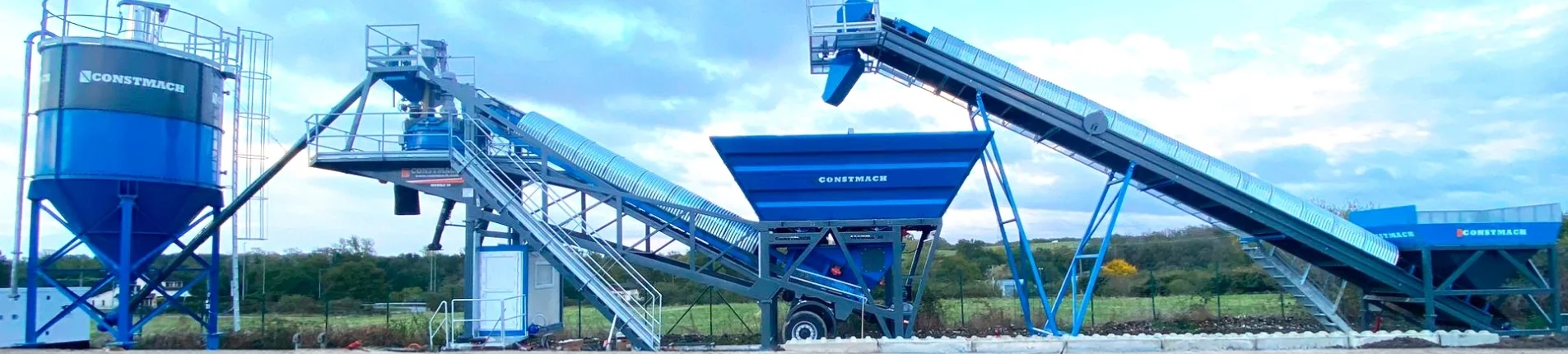

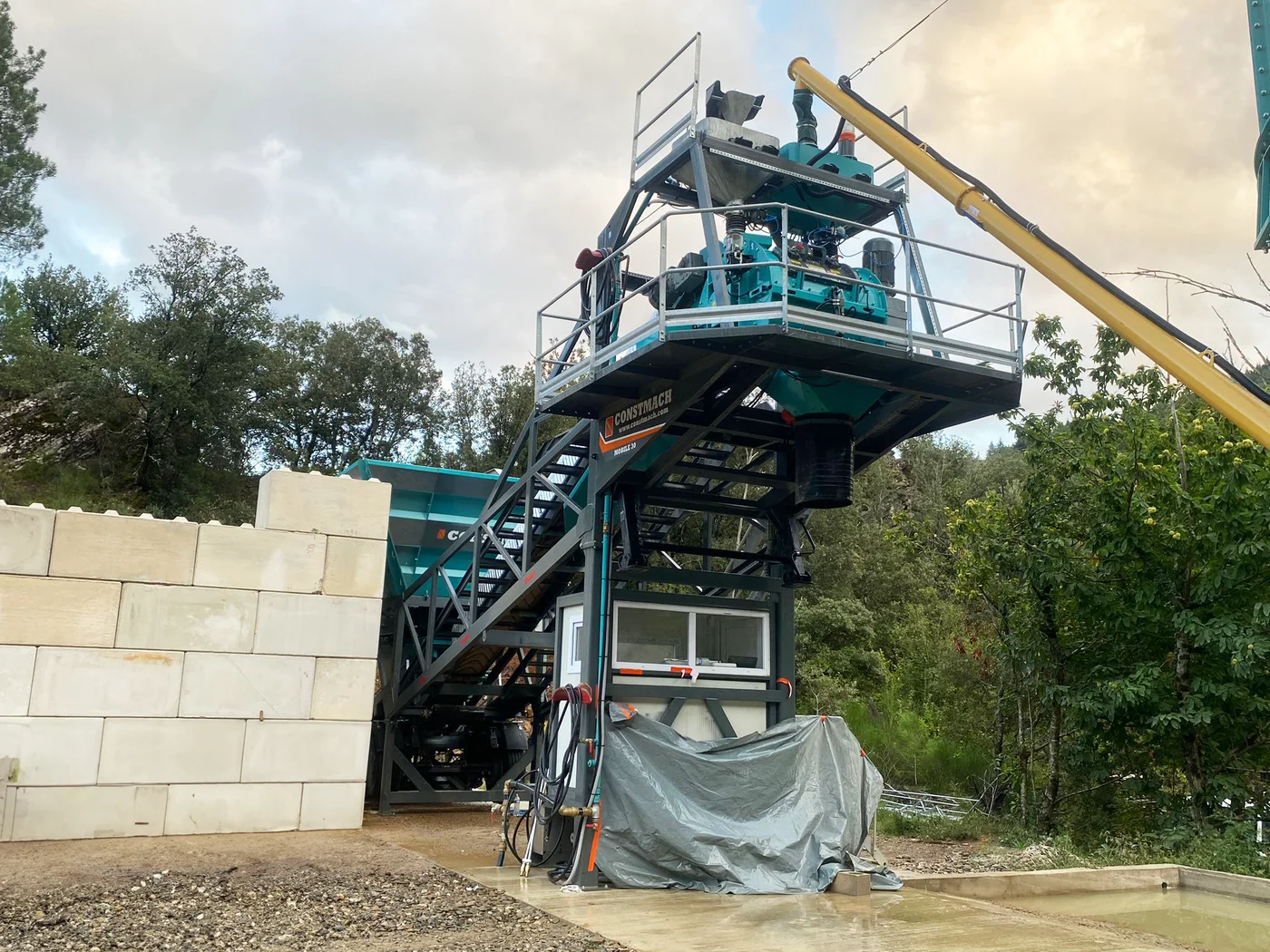

The Constmach MOBILE 30 represents a breakthrough in portable concrete production technology, designed specifically for contractors who need to start operations immediately without the burden of extensive site preparation. This full-automatic mobile concrete batching plant combines the convenience of rapid deployment with the production capabilities typically found in stationary installations, making it an ideal choice for temporary construction projects, remote locations, or sites where traditional infrastructure simply isn't feasible.

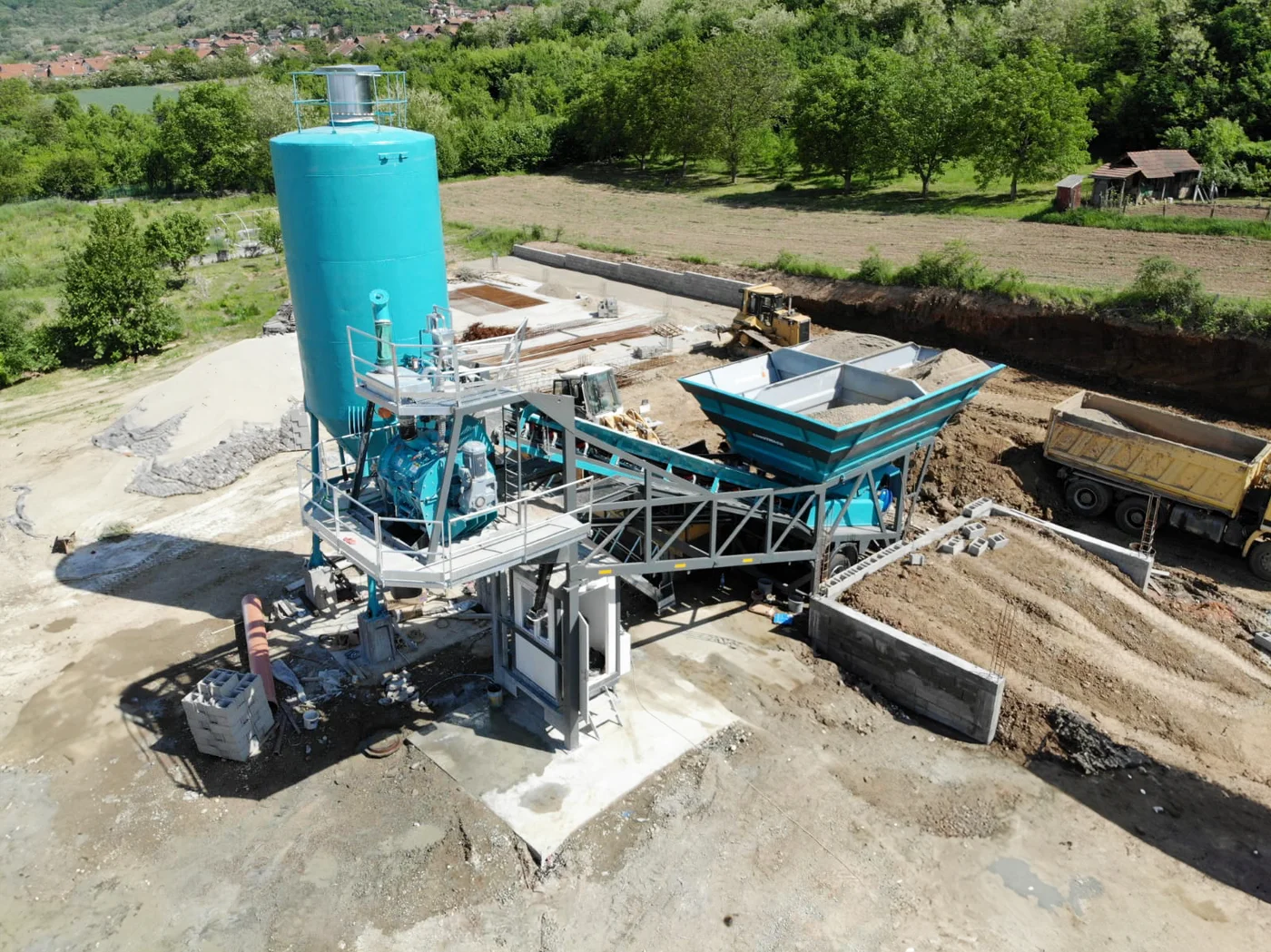

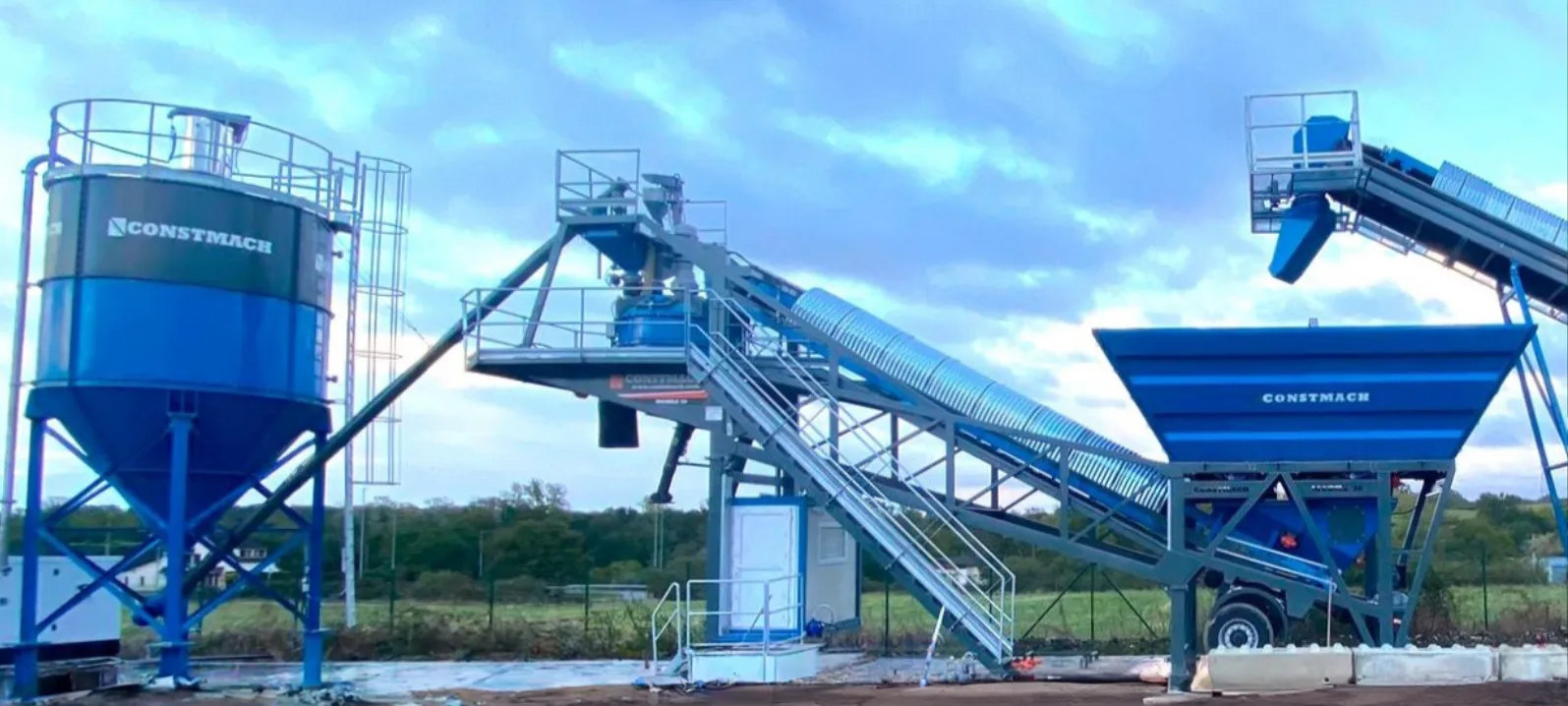

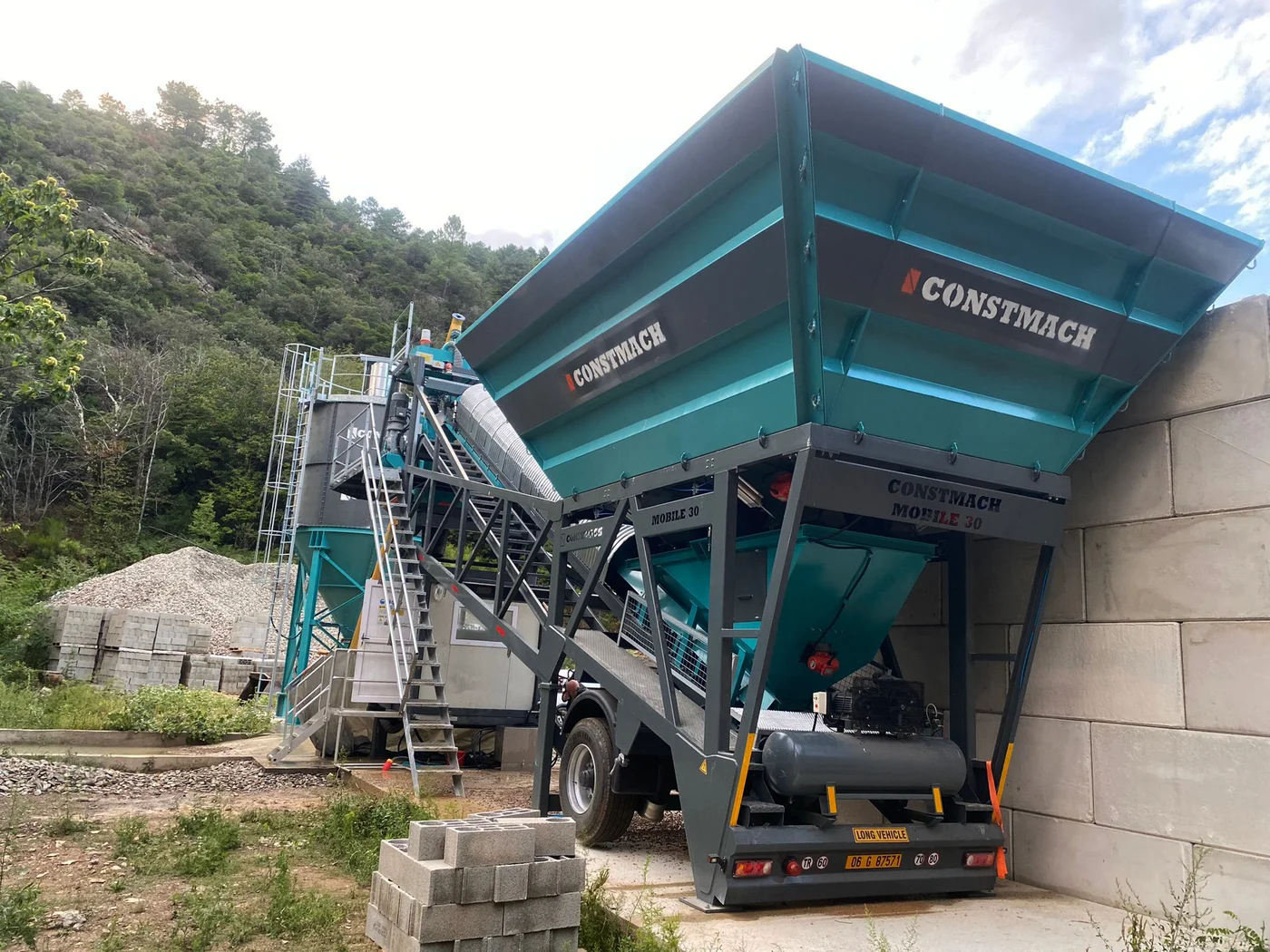

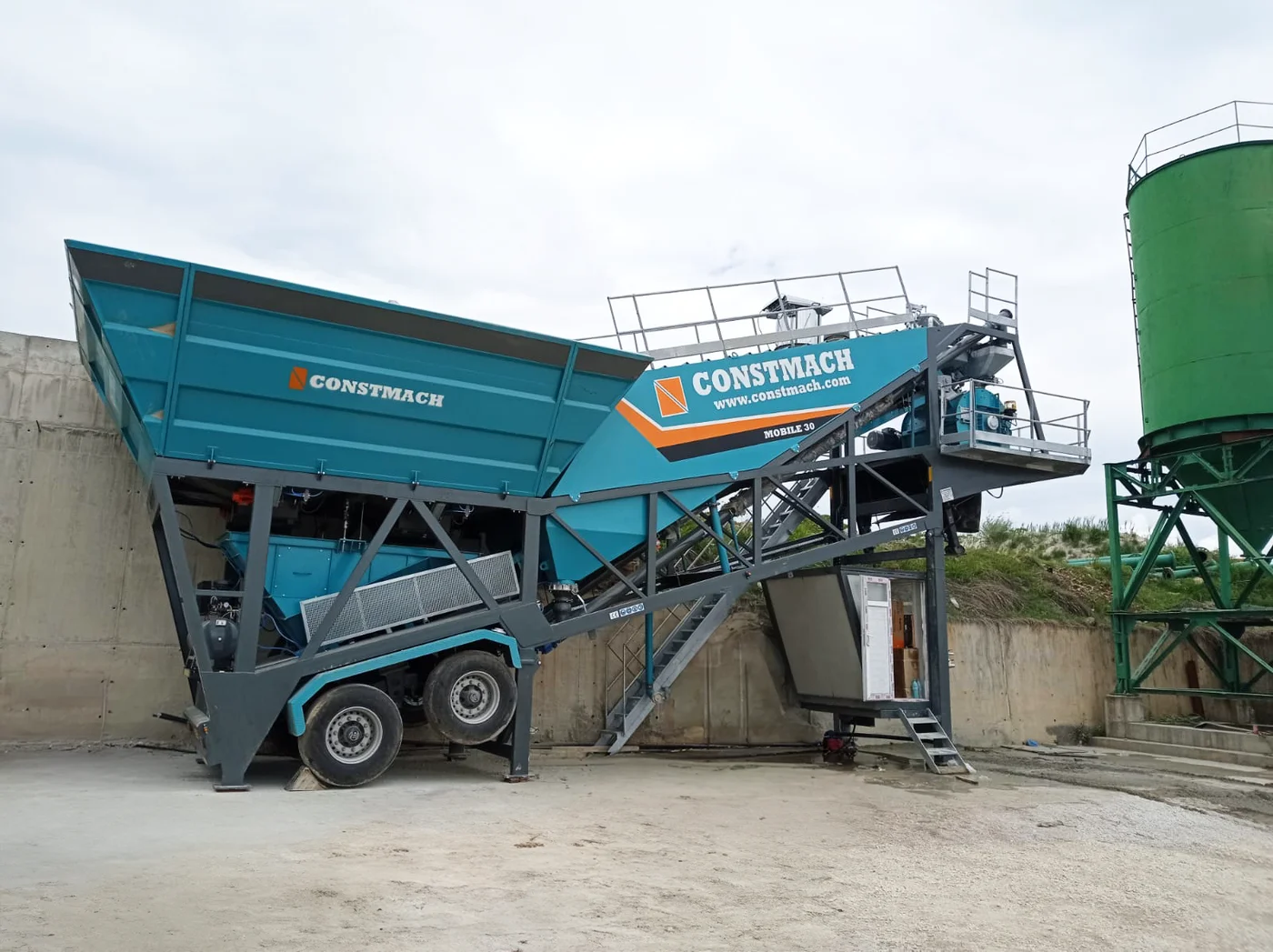

What sets the MOBILE 30 apart is its innovative single-chassis design. Every component required for concrete production—from the mixing unit to the aggregate hoppers, and even a 26-tonne capacity cement silo—is integrated onto one wheeled platform. This engineering approach eliminates the complexity of multiple transportation loads and the time-consuming assembly process that comes with conventional plants. Once the unit arrives at your site, you're essentially ready to produce concrete. The only requirement is a flat surface capable of supporting the plant's 16,500 kg operational weight, which is far less demanding than the foundation work needed for traditional batching plants.

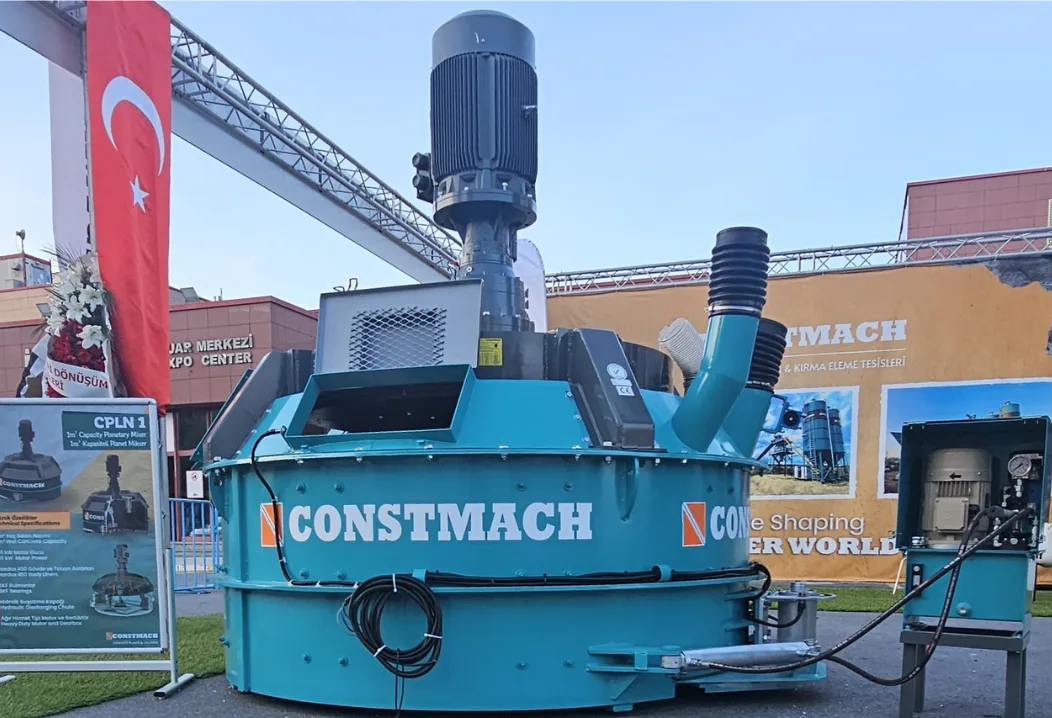

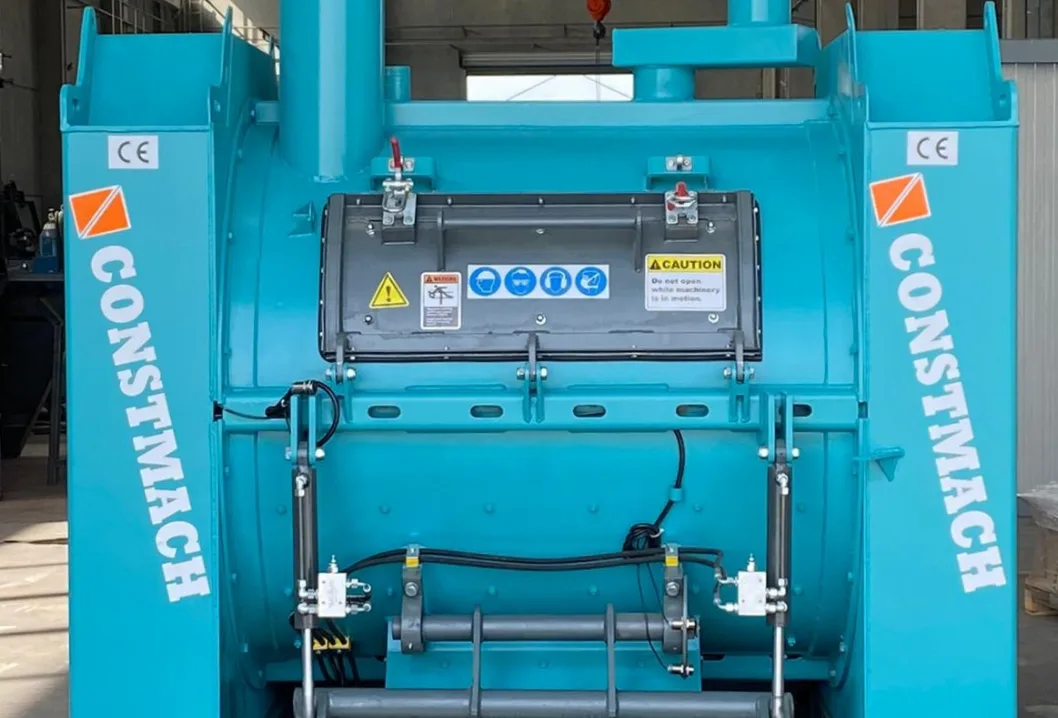

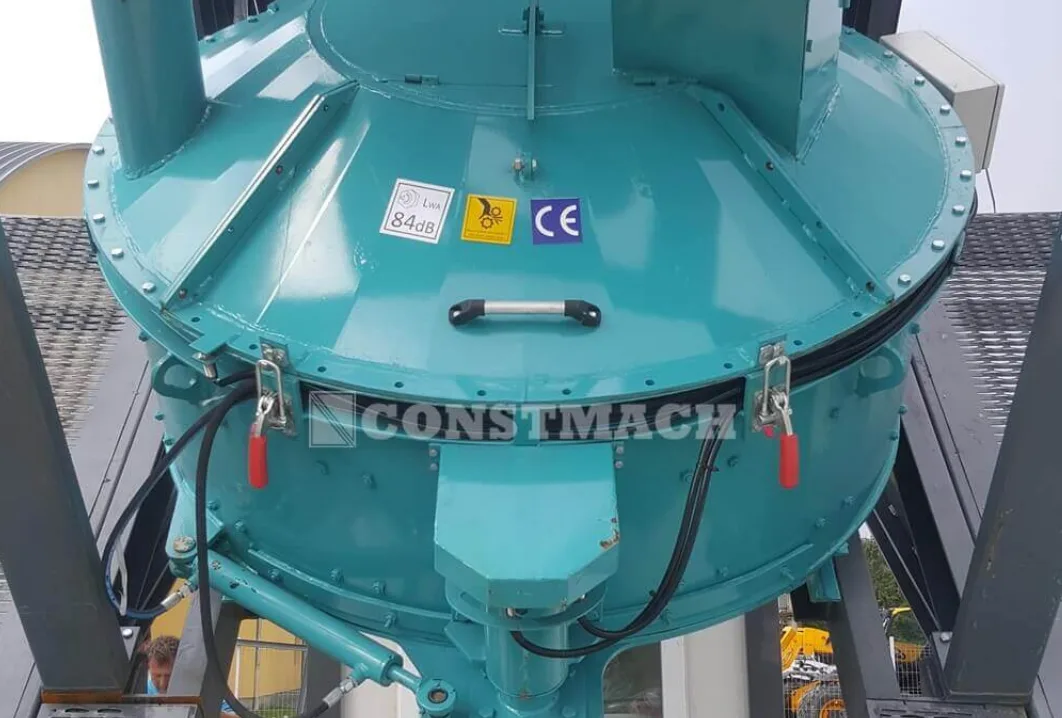

The plant's aggregate handling system features four 10 m³ hoppers that feed material through a 12-meter transfer conveyor to a precision 0.75 m³ weighing hopper. This configuration ensures consistent batching accuracy while maintaining a production rate of 30 cubic meters per hour. The mixer itself offers remarkable flexibility—customers can choose between pan-type, single shaft, or planetary mixers depending on their specific application. A pan mixer works excellently for standard ready-mix concrete, while a planetary mixer becomes essential for producing high-performance precast elements or dry-mixed concrete formulations. This adaptability means the MOBILE 30 can serve diverse market segments without requiring separate equipment investments.

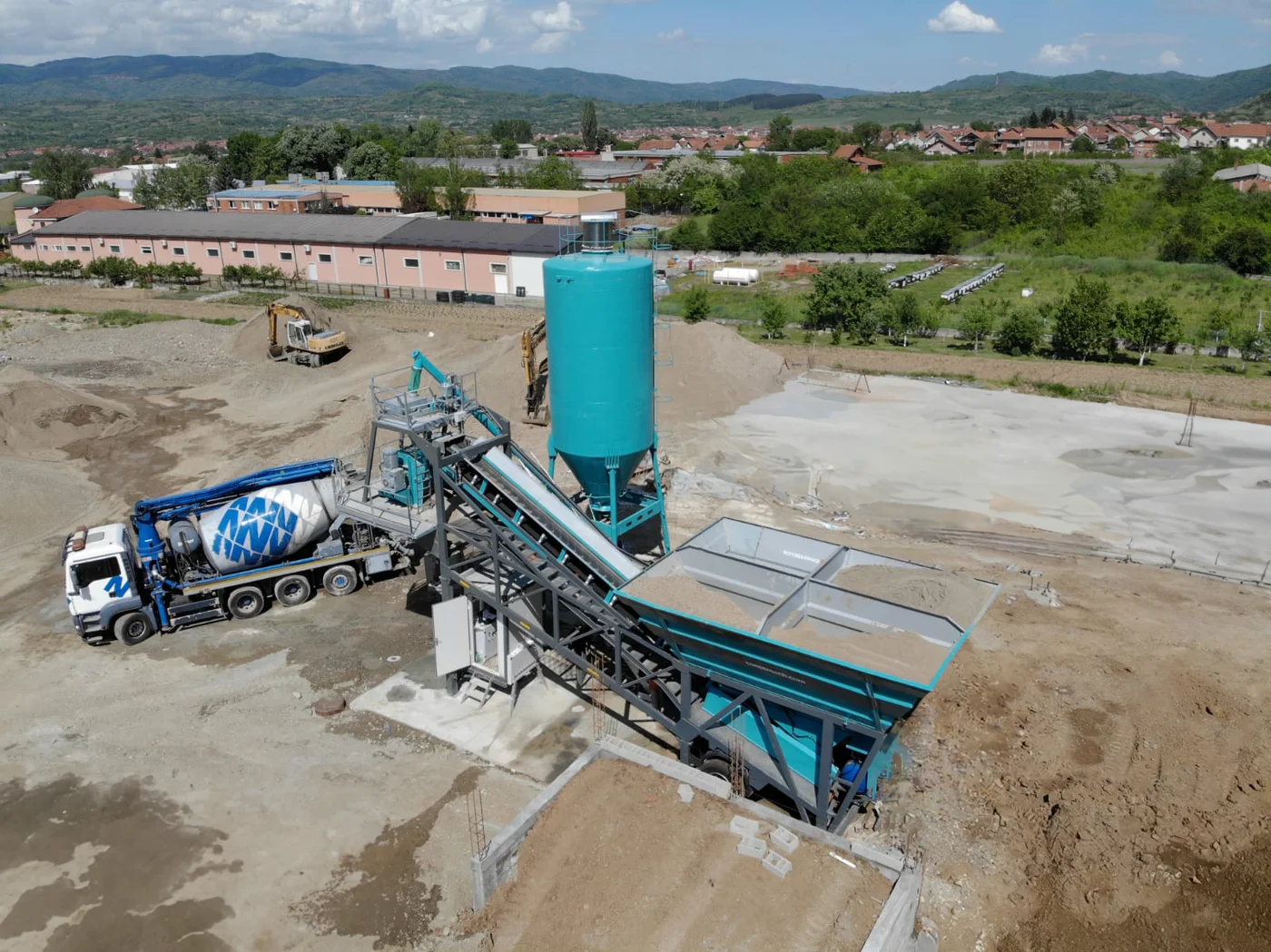

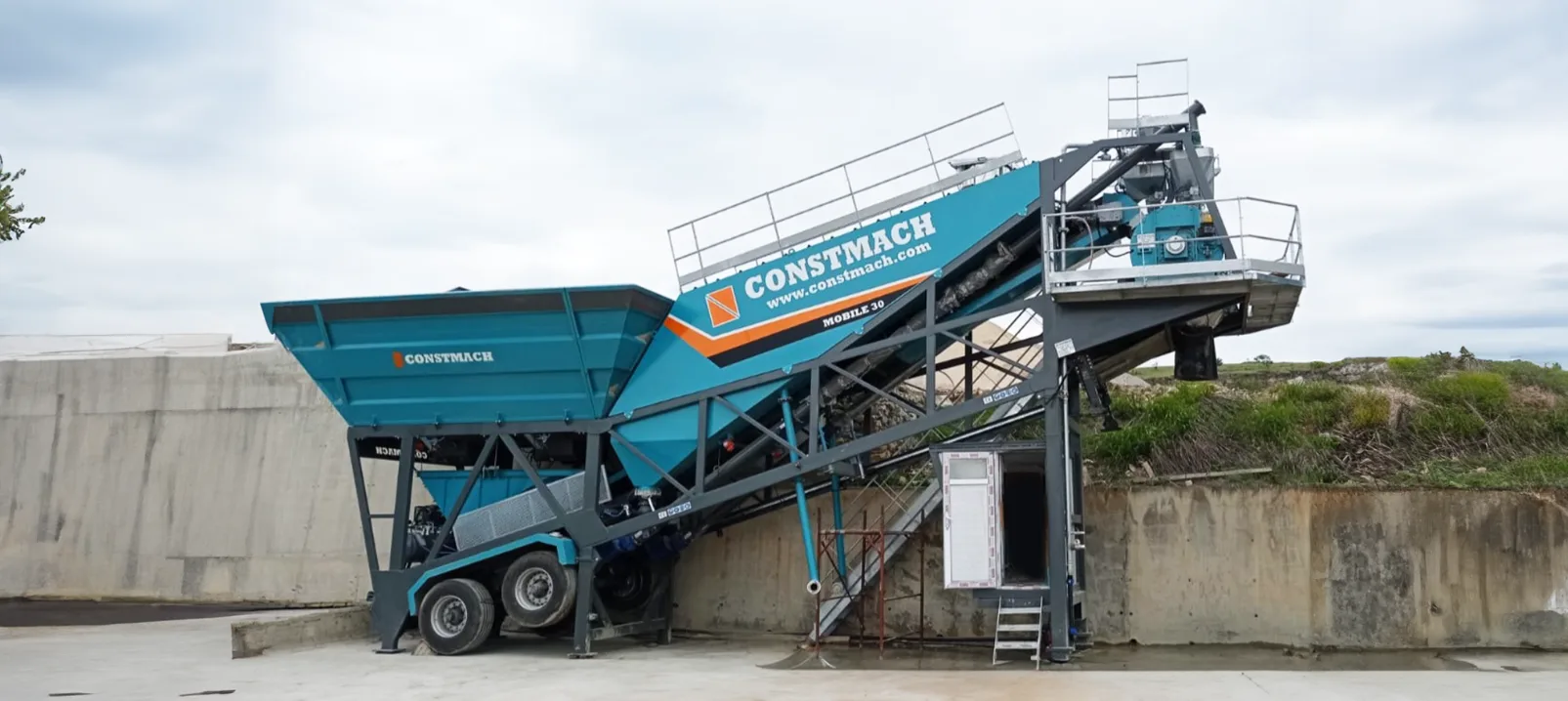

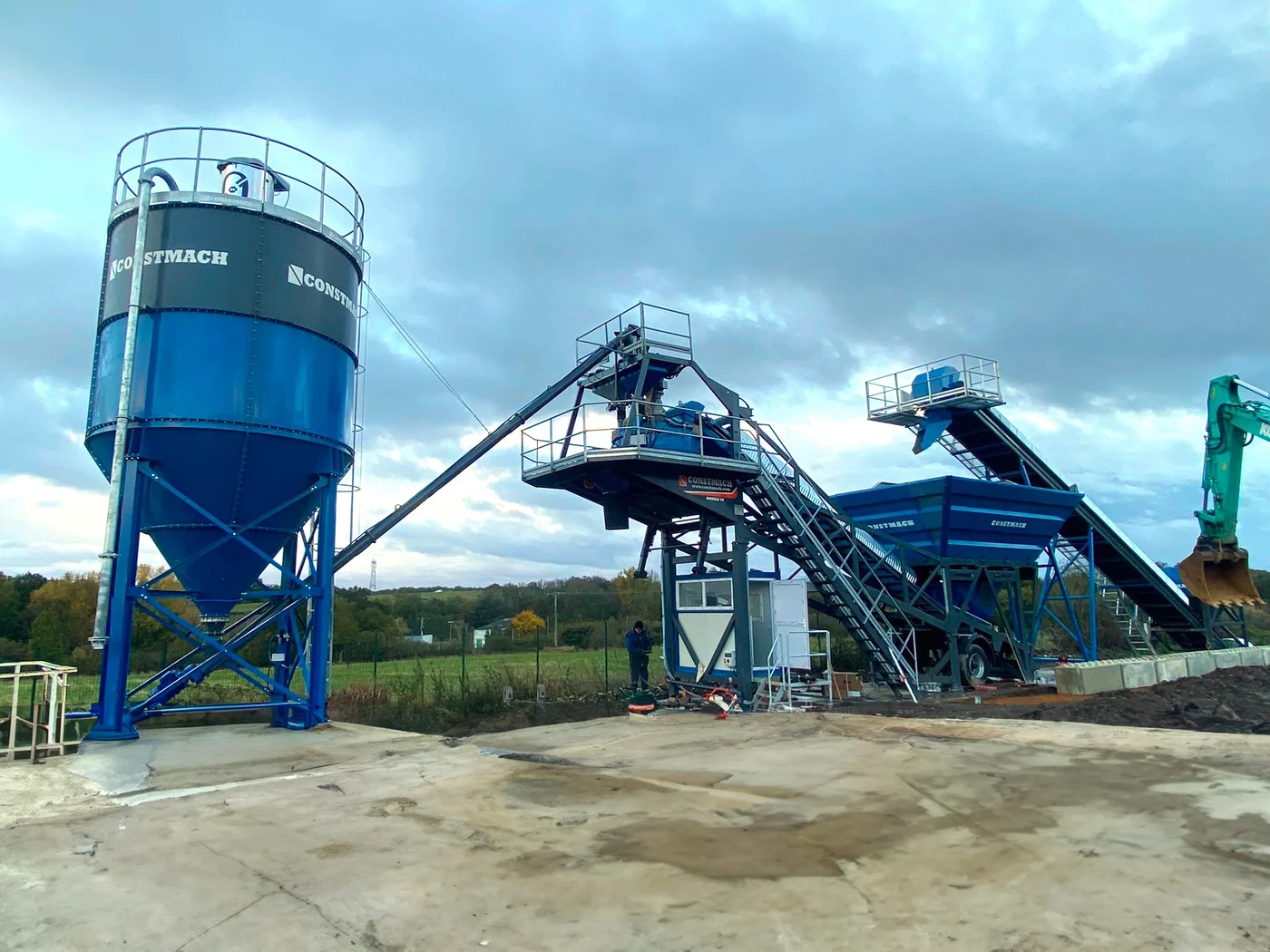

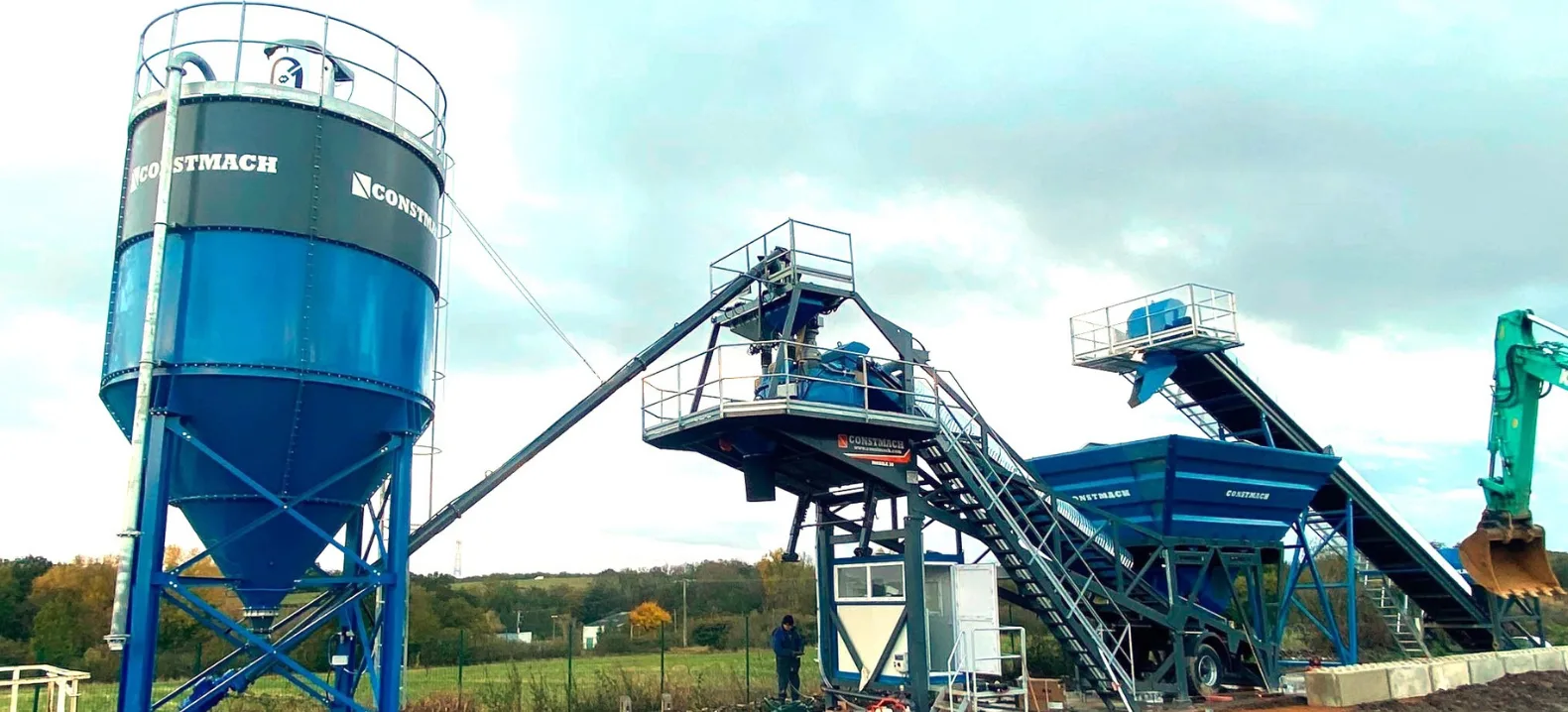

Cement management on the MOBILE 30 deserves special attention. The integrated 26-tonne silo mounted directly on the chassis provides sufficient storage for most daily operations, but CONSTMACH understands that some projects demand more. That's why external cement silos ranging from 50 to 500 tonnes can be connected when higher capacity becomes necessary. These external units come with full steel support legs, completely removing the need for concrete foundation work that would otherwise delay project timelines and increase costs.
The weighing systems demonstrate CONSTMACH's commitment to precision. Water is measured in a 200-liter hopper, cement in a 300-kilogram container, and chemical additives in a dedicated 20-liter unit. Each system operates independently through load cells that communicate with the plant's control system, ensuring every batch meets the specified mix design with minimal deviation. This level of accuracy is critical when producing structural concrete or specialty mixes where even small variations can compromise quality.

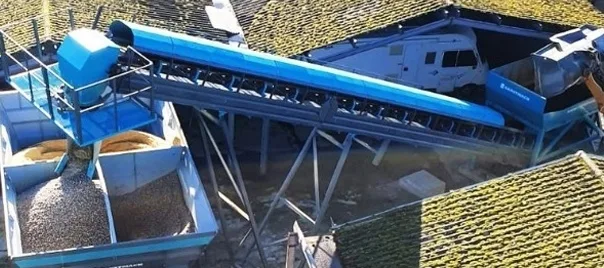

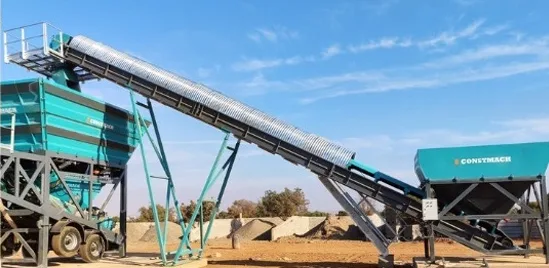

One often-overlooked advantage of the MOBILE 30 is the optional mobile aggregate pre-feeding conveyor system. On traditional plants, operators must build expensive loading ramps or excavate pits for aggregate storage. With CONSTMACH's mobile feeding solution, trucks or loaders can discharge material directly at ground level, and the conveyors elevate it to the plant's hoppers. This feature alone can save thousands in site preparation costs while accelerating the setup timeline from weeks to just days.

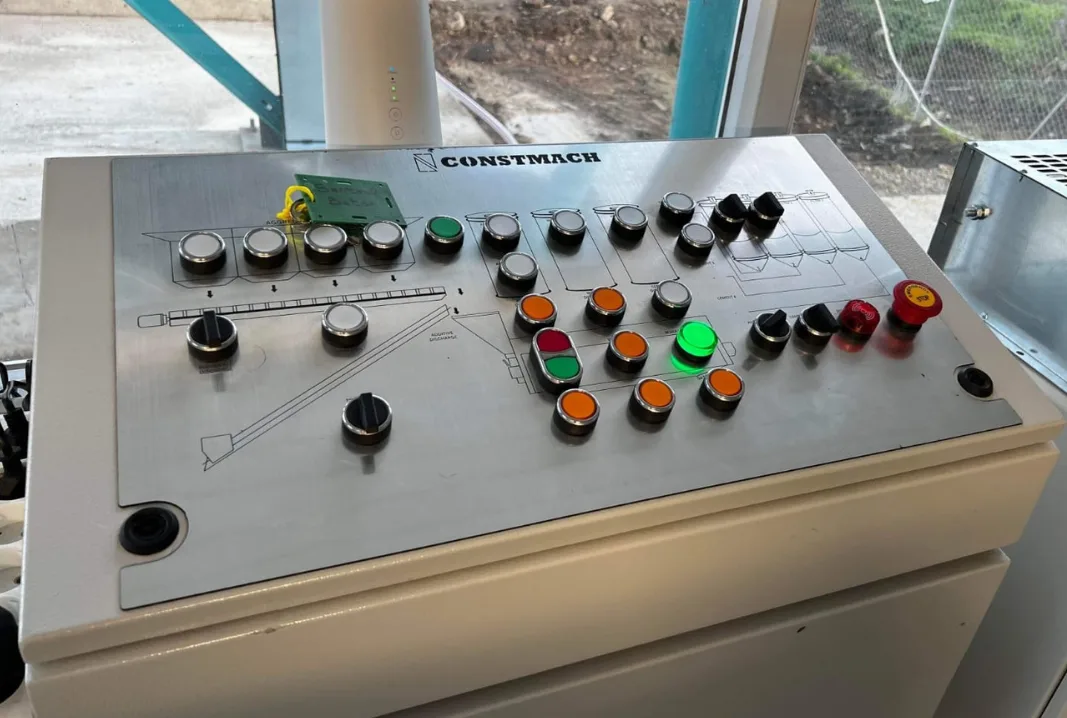

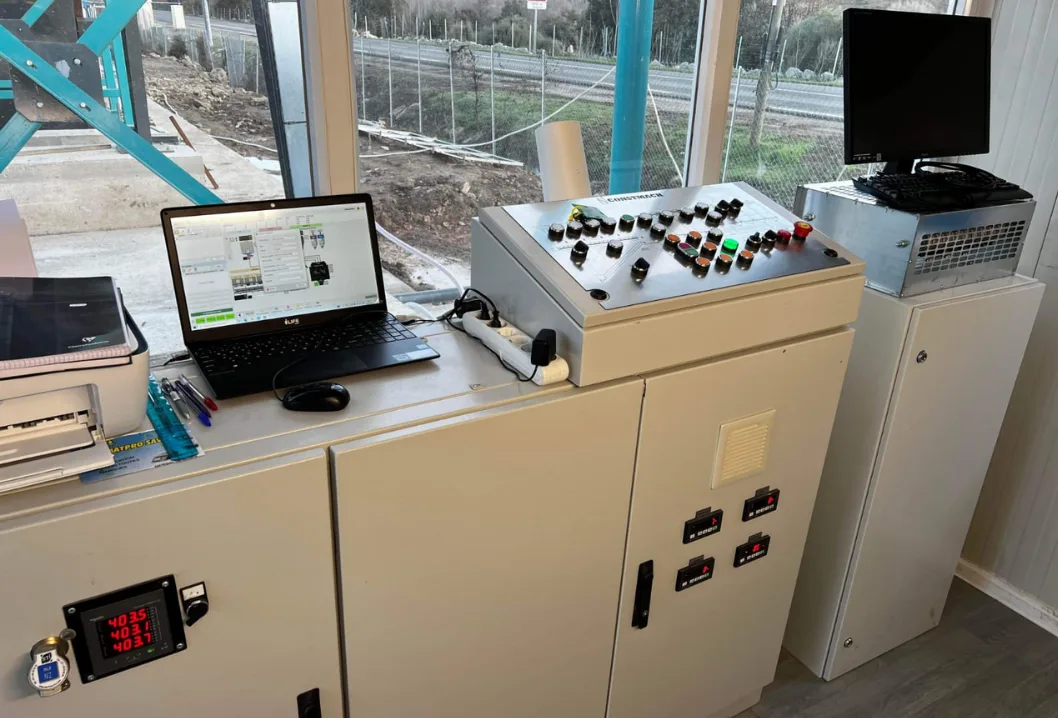

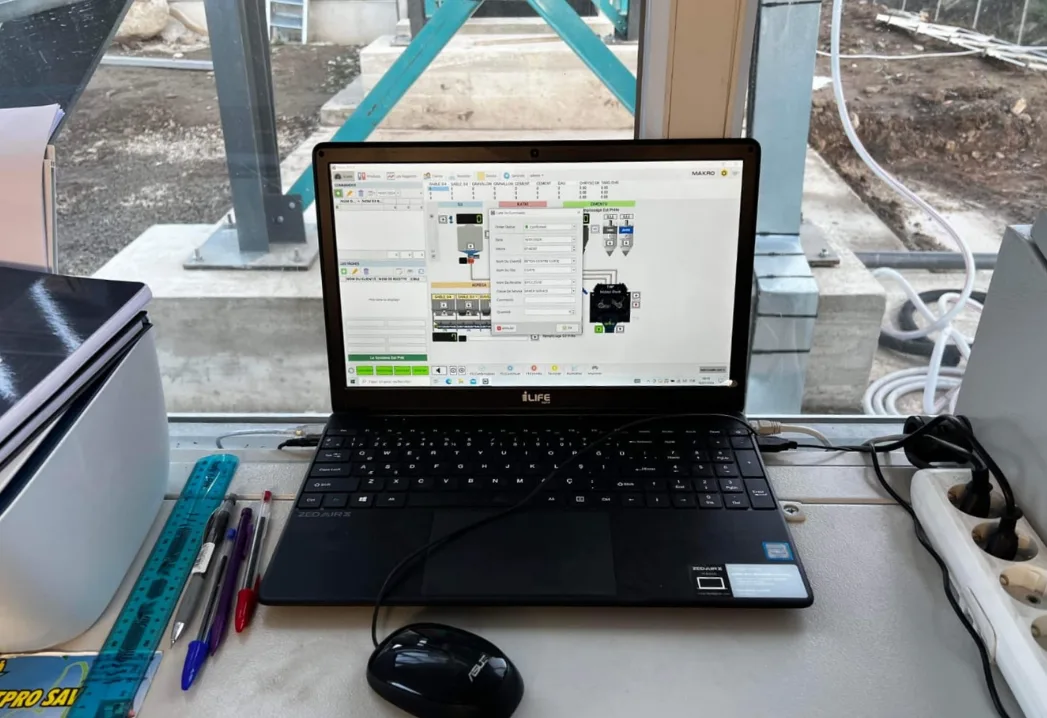

The automation package installed on the MOBILE 30 relies on SIEMENS and SCHNEIDER components—brands recognized globally for reliability in industrial environments. The PLC-based control system manages every aspect of production through software that balances sophistication with ease of use. Operators can monitor real-time production data, adjust mix designs on the fly, store multiple recipes, and track material consumption—all from a single interface. This technology ensures consistent output quality while reducing the labor requirements compared to manually controlled plants.

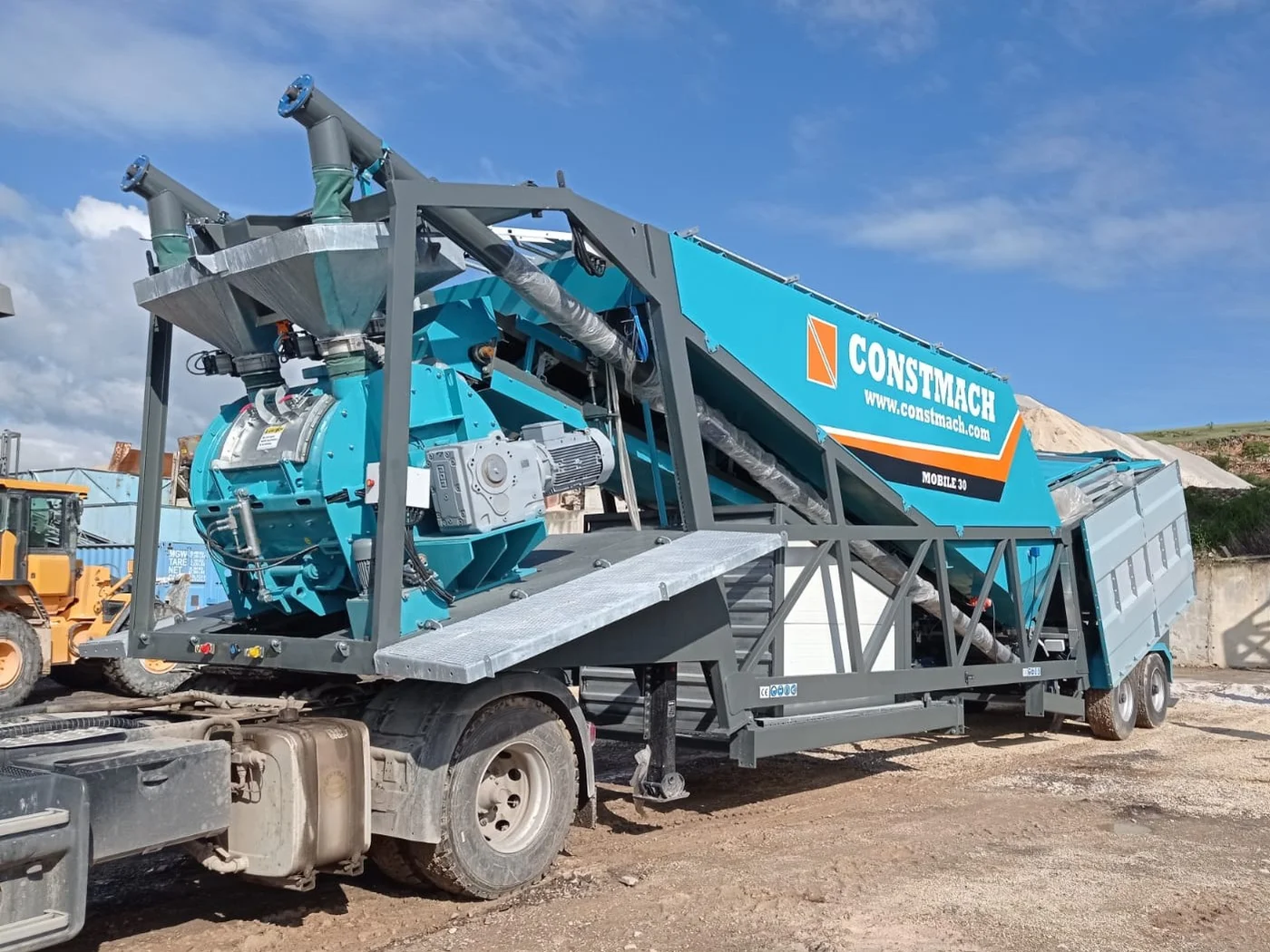

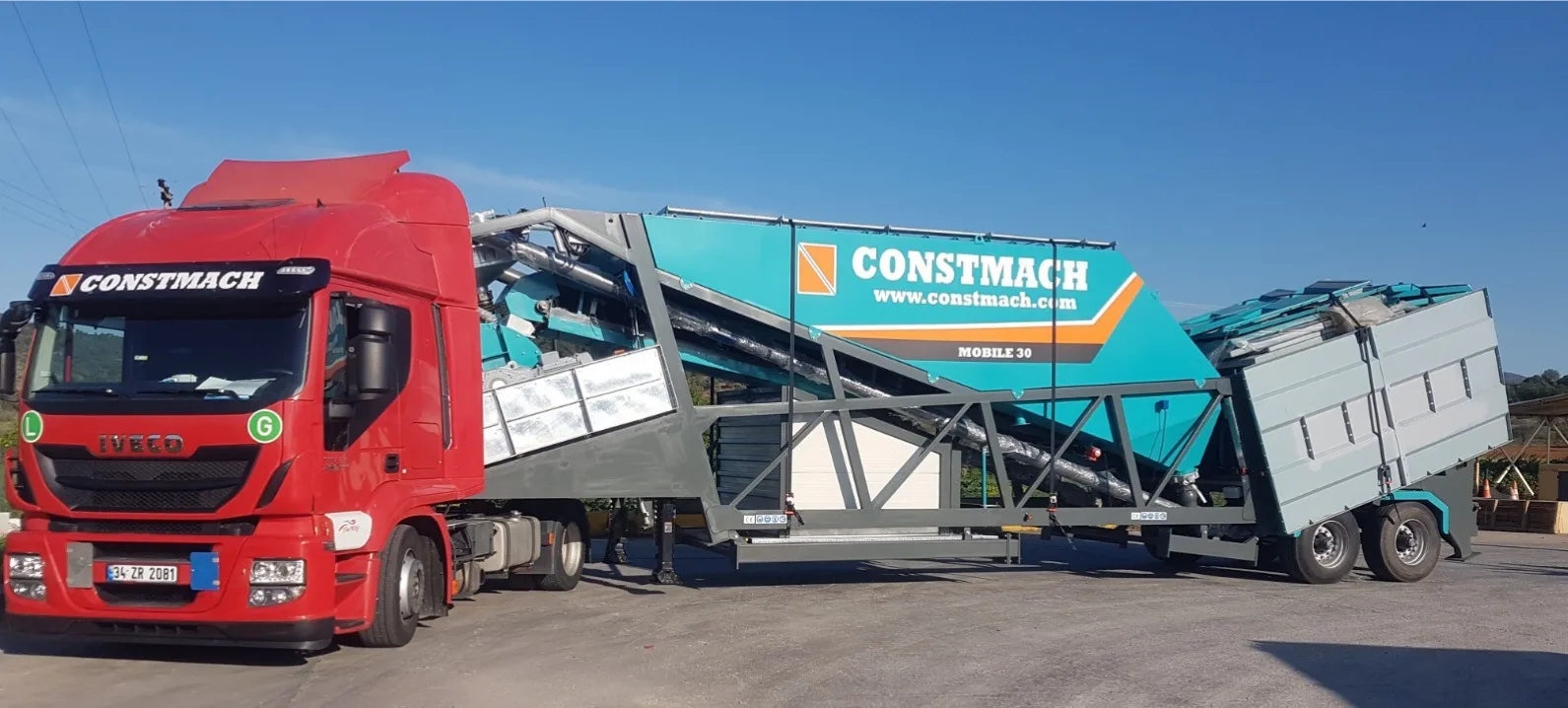

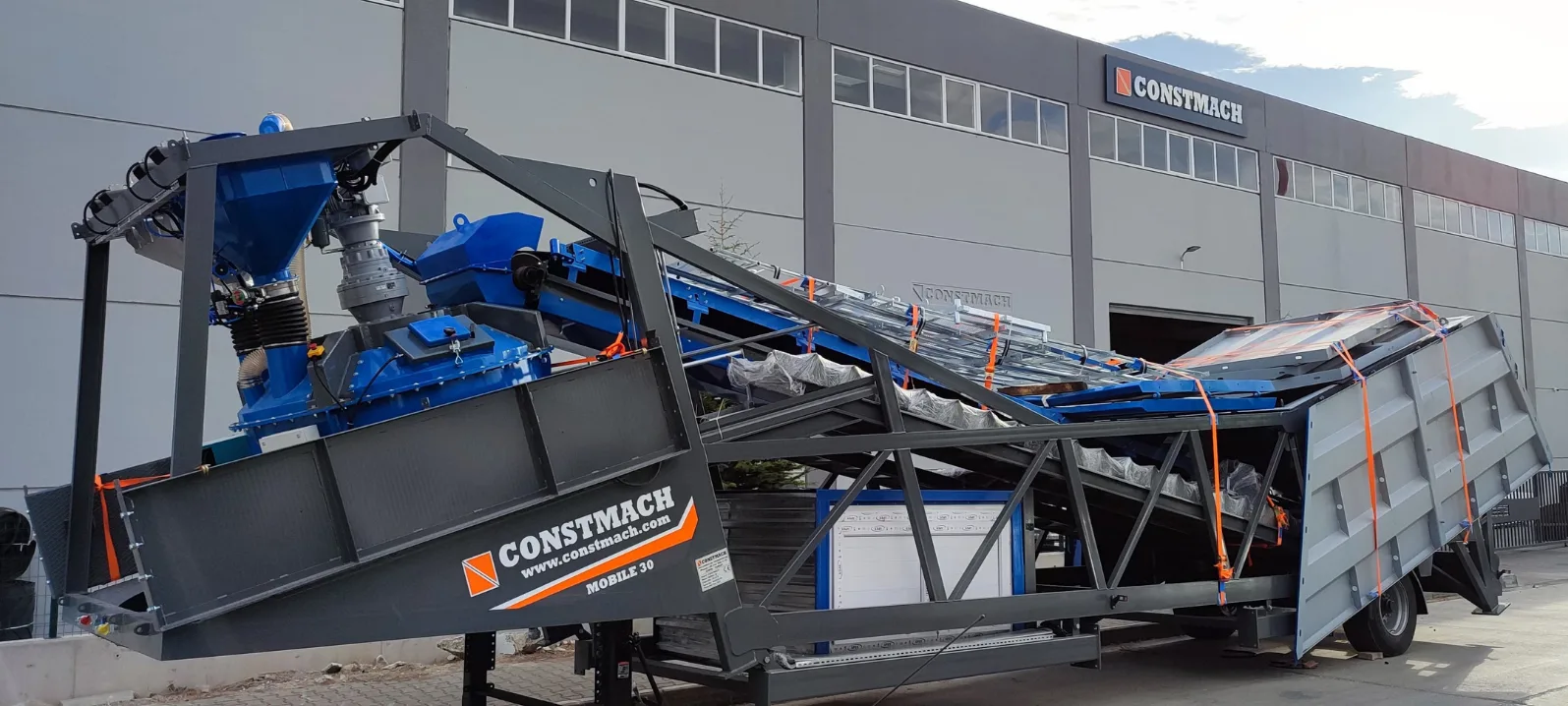

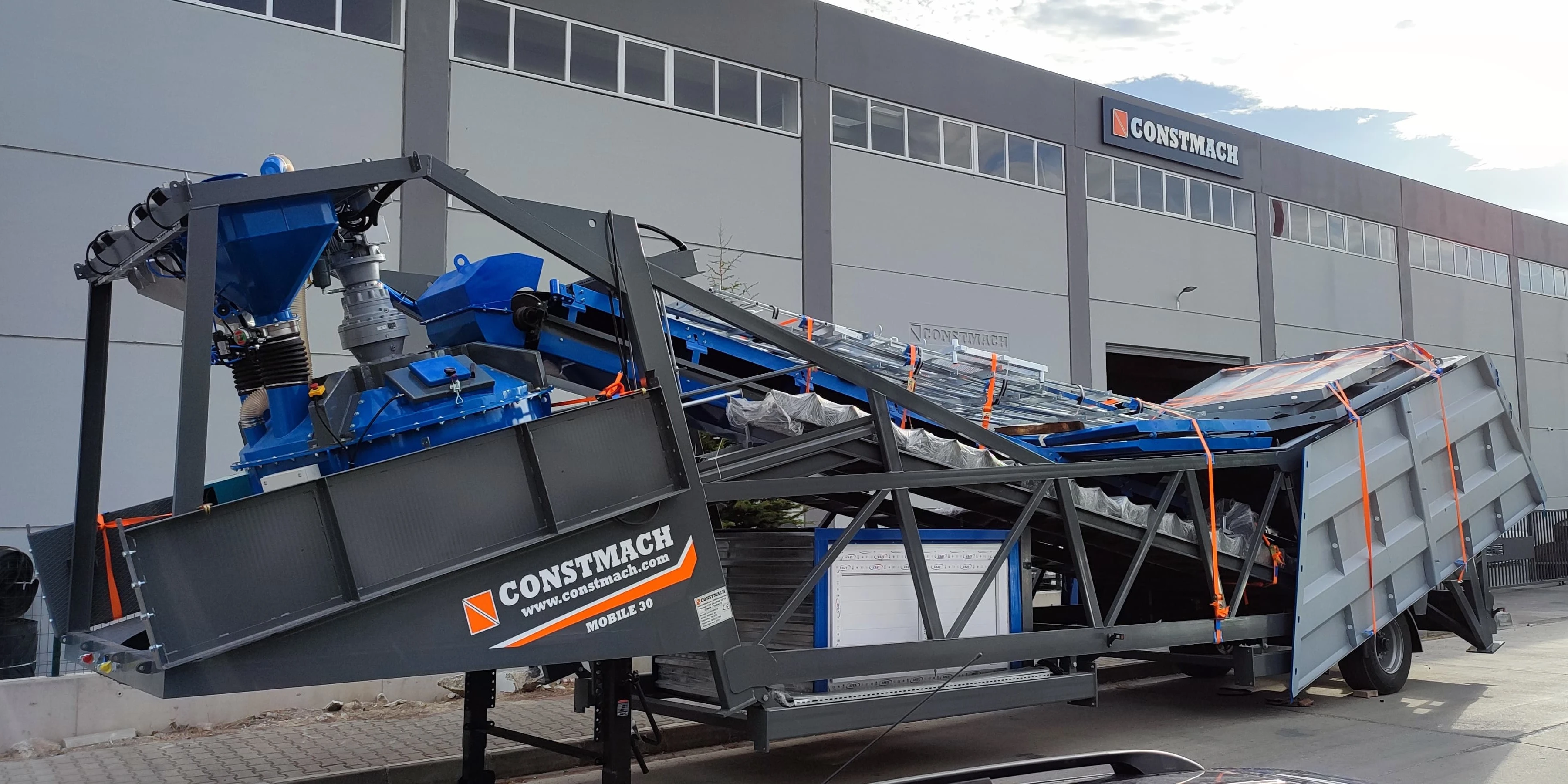

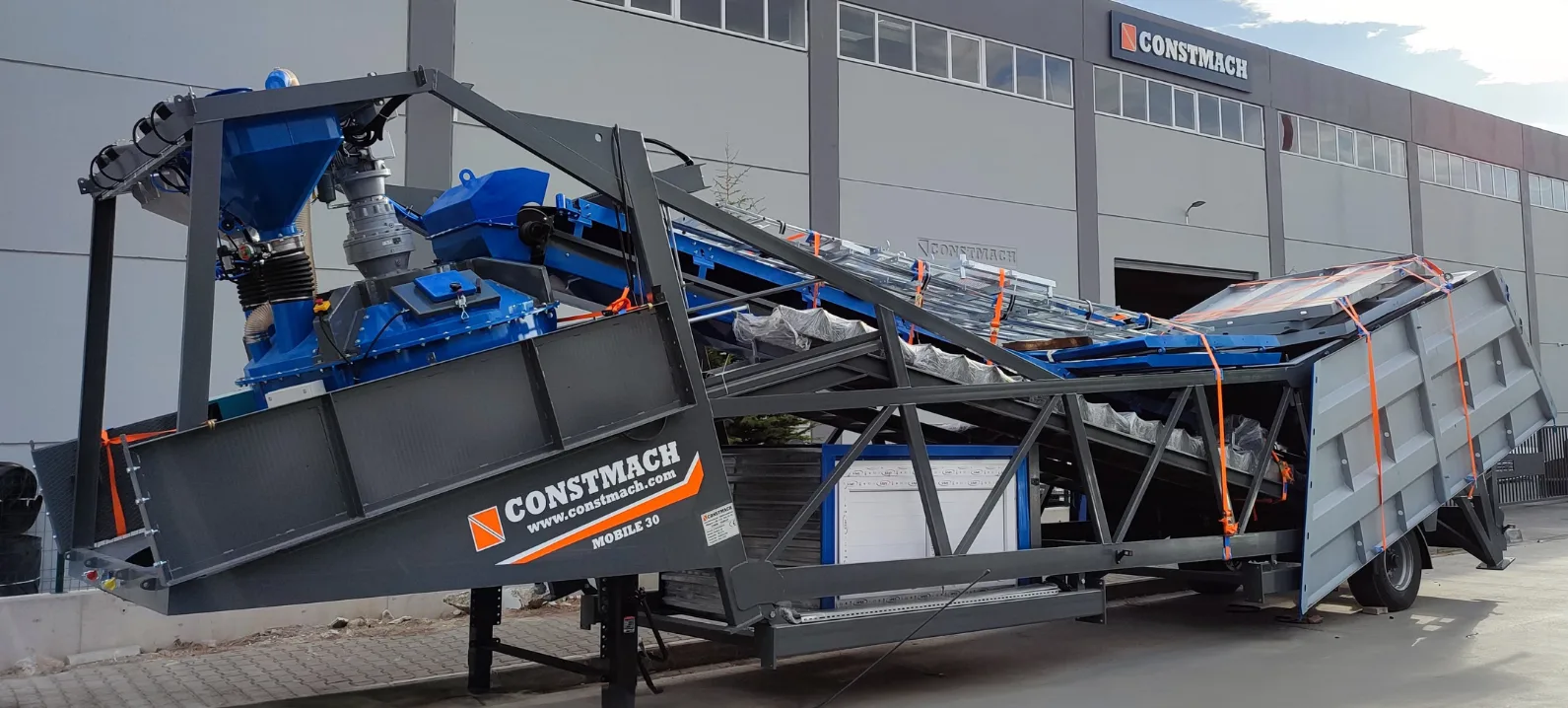

Transportation logistics have been carefully considered in the MOBILE 30's design. The unit's dimensions—14.5 meters in length, 2.55 meters in width, and 4.2 meters in height—comply with international road transport regulations, meaning you can move it between job sites without special permits or escort vehicles in most jurisdictions. The plant requires just 200 square meters of operating space, which is remarkably compact given its 30 m³/hour capacity. A 65 kW total motor power requirement translates to an 80 kVA generator need, making it compatible with standard construction site power solutions.
CONSTMACH has engineered the MOBILE 30 as more than just equipment; it's a complete production system that understands the realities of modern construction. Projects move faster today, margins are tighter, and the ability to produce quality concrete exactly where and when you need it provides a competitive advantage that traditional supply chains simply cannot match. Whether you're working on infrastructure development in developing regions, temporary projects like dam construction, or situations where establishing a permanent plant isn't economically justified, the MOBILE 30 delivers the flexibility and performance that keeps projects moving forward.
