Mobicom 30 | Mobile Concrete Batching Plant

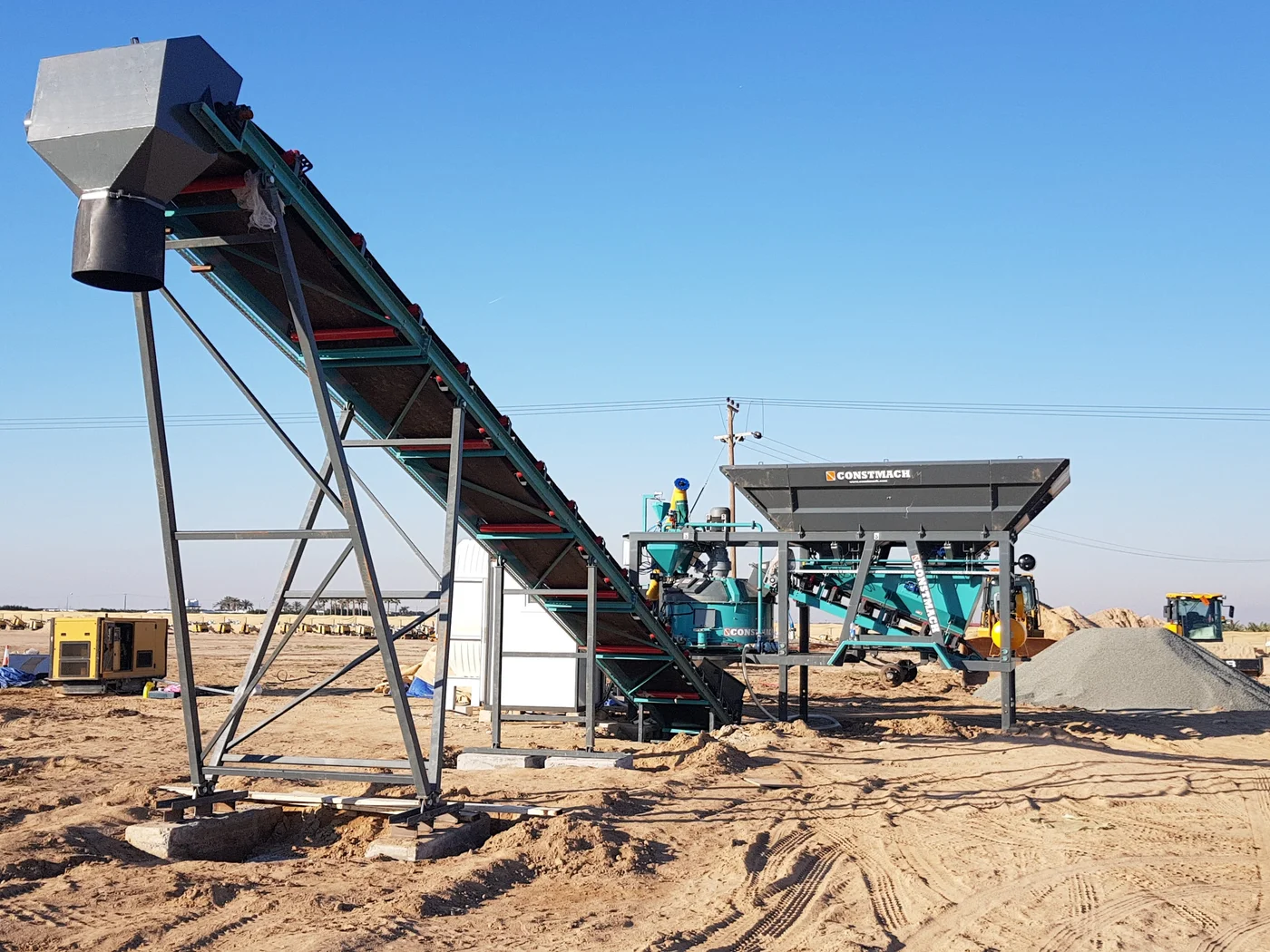

CONSTMACH MOBICOM 30 Mobile & Compact & site type concrete batching plant is an ideal solution for the projects that require high mobility, temporary production area and low investment budget. Unlike classical mobile concrete plants, MOBICOM 30 concrete plant can be shipped within only 1 pcs. 40 ft. Container. It requires minimum site preparation and does not require a mobile crane for the installation. Only a loader is enough. The plant can be shipped by a truck between the jobsites easily. To ensure easy mobility, MOBICOM concrete plants remain at the same position during both production and transport. Since the mixer is just above the ground level, produced concrete is transferred to truck mixer by a conveyor belt. MOBICOM 30 site type Concrete batching plant requires a minimum site preparation. Just a flat ground that is capable to carry the total load of the plant is enough.

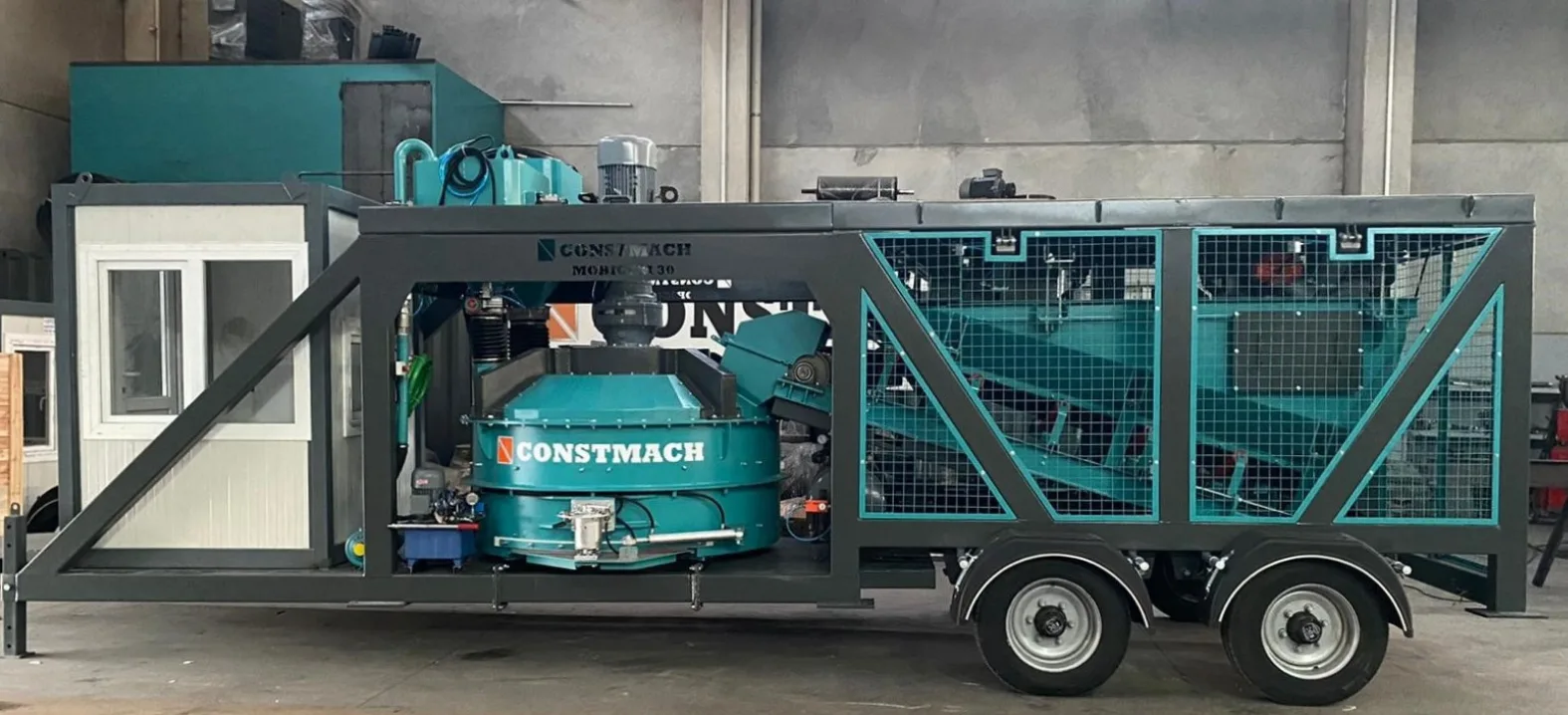

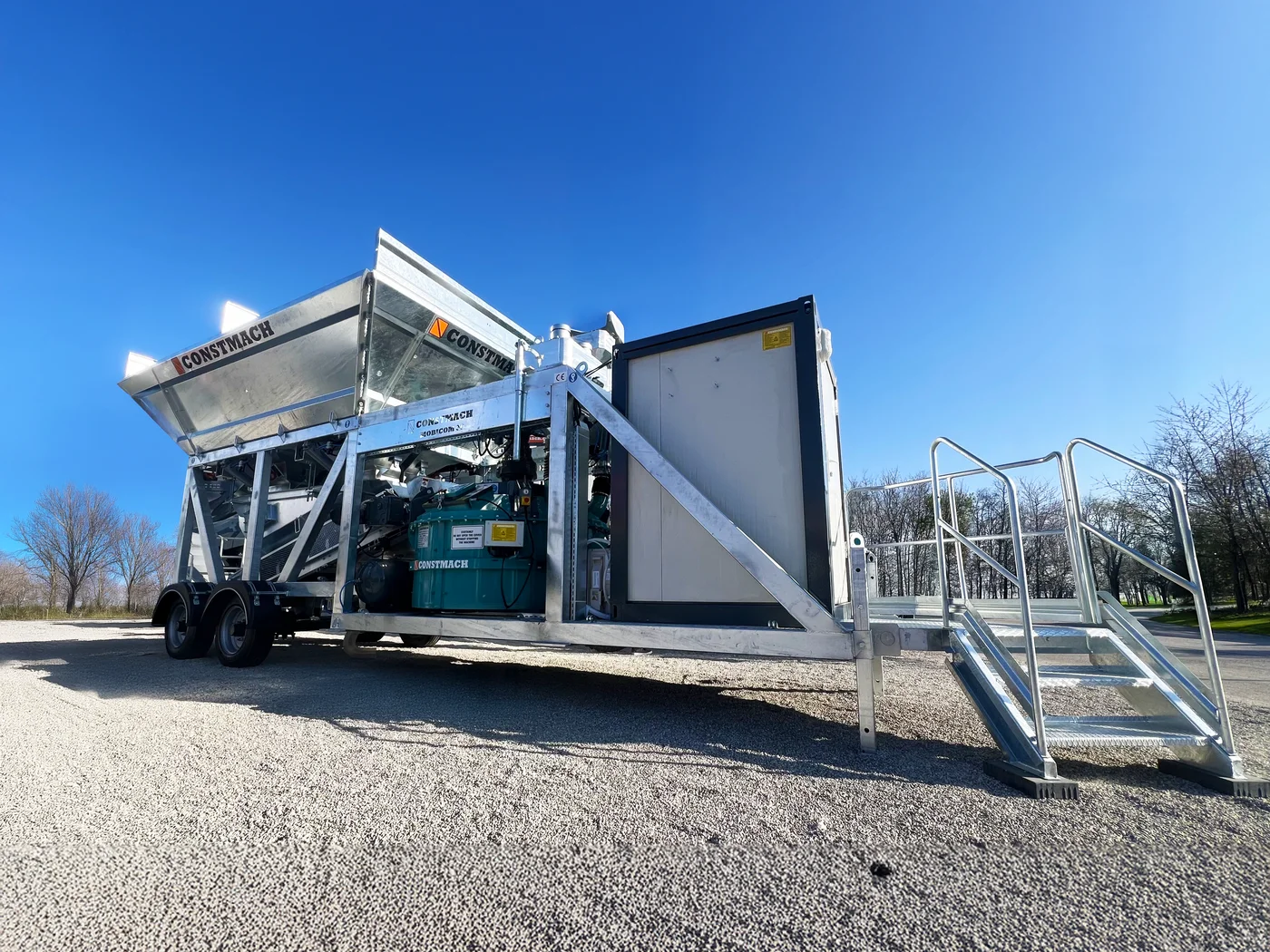

TRANSPORT POSITIONTRANSPORT POSITION

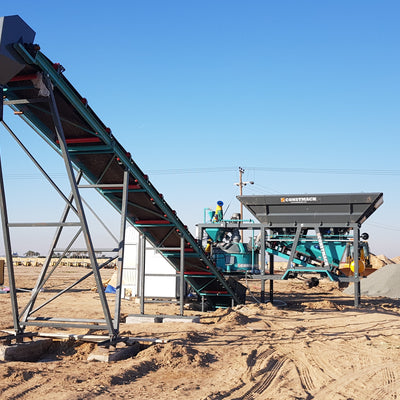

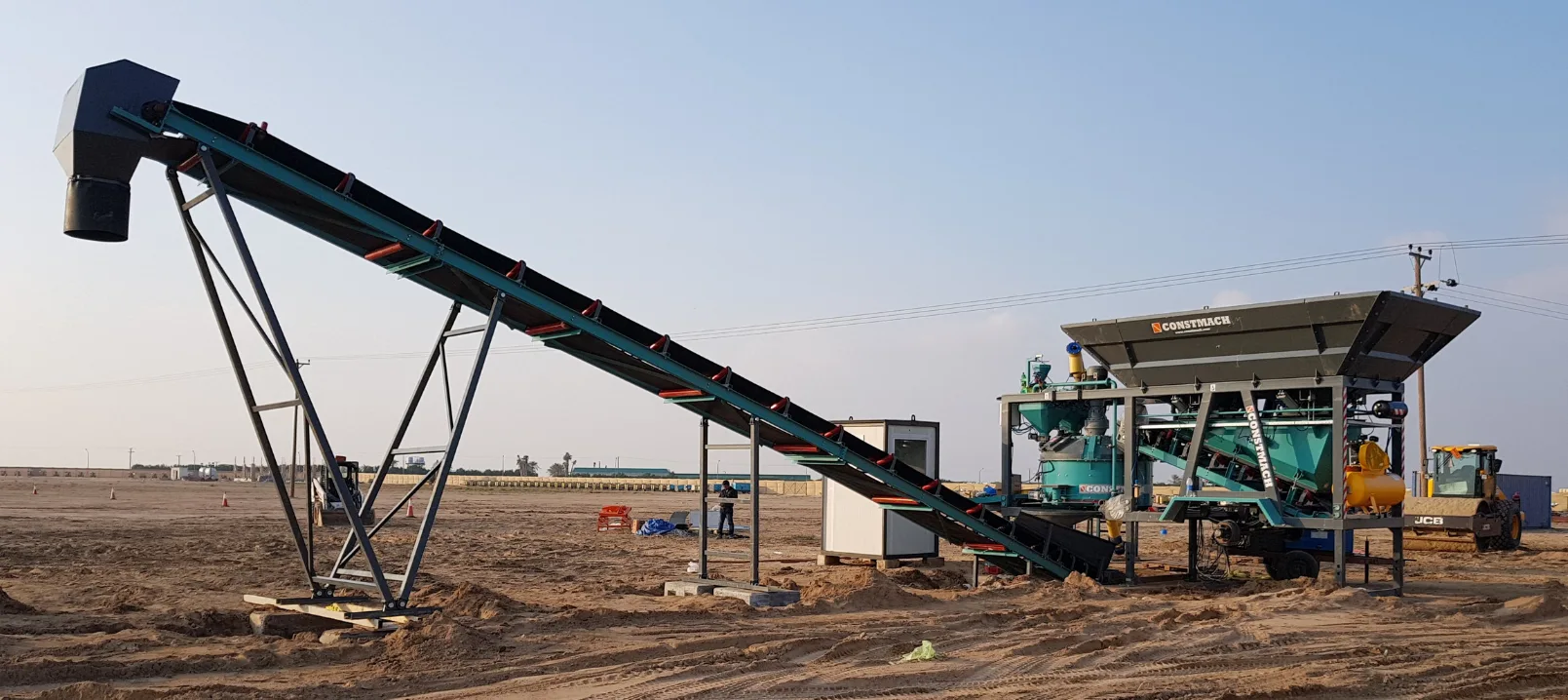

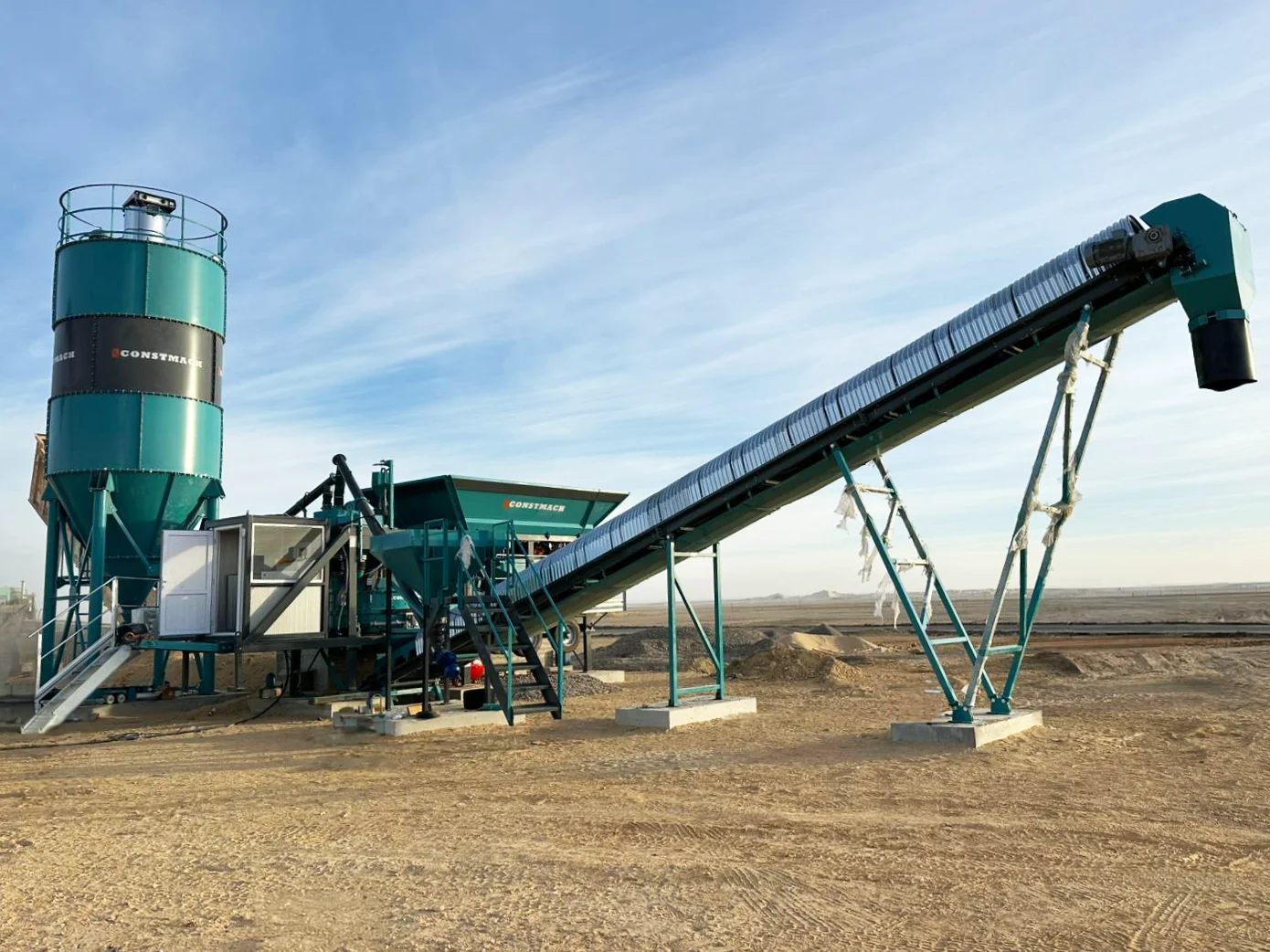

INSTALLED POSITIONINSTALLED POSITION

MOBICOM 30 site type mobile concrete plant has the features of being able to have all necessary equipments for concrete production except the cement silo, but If cement is supplied in bags, cement bag opening hopper and cement transfer system which are present on chassis of the plant is used instead of a cement silo. In case of need, MOBICOM 30 can be equipped by also a cement silo.

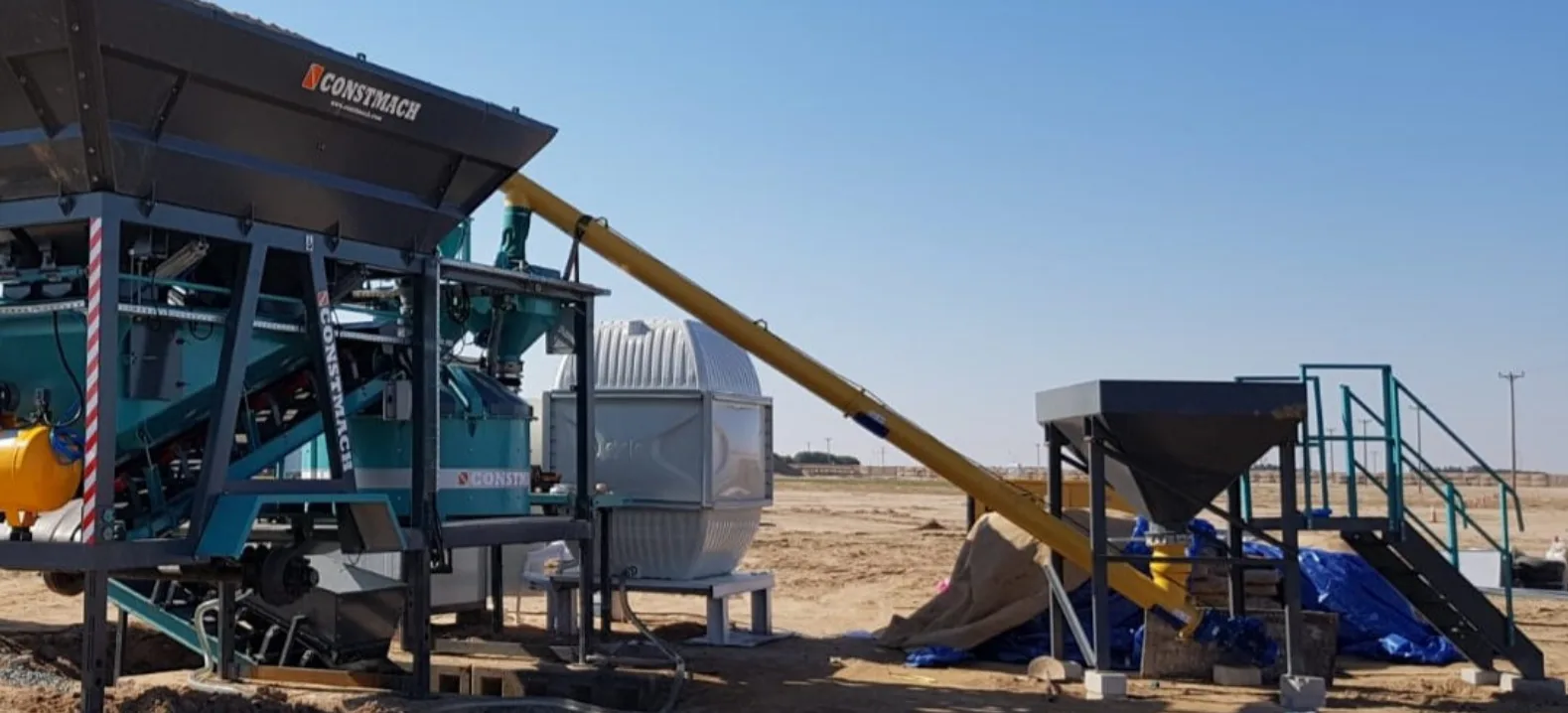

CEMENT BAG OPENING HOPPERCEMENT BAG OPENING HOPPER

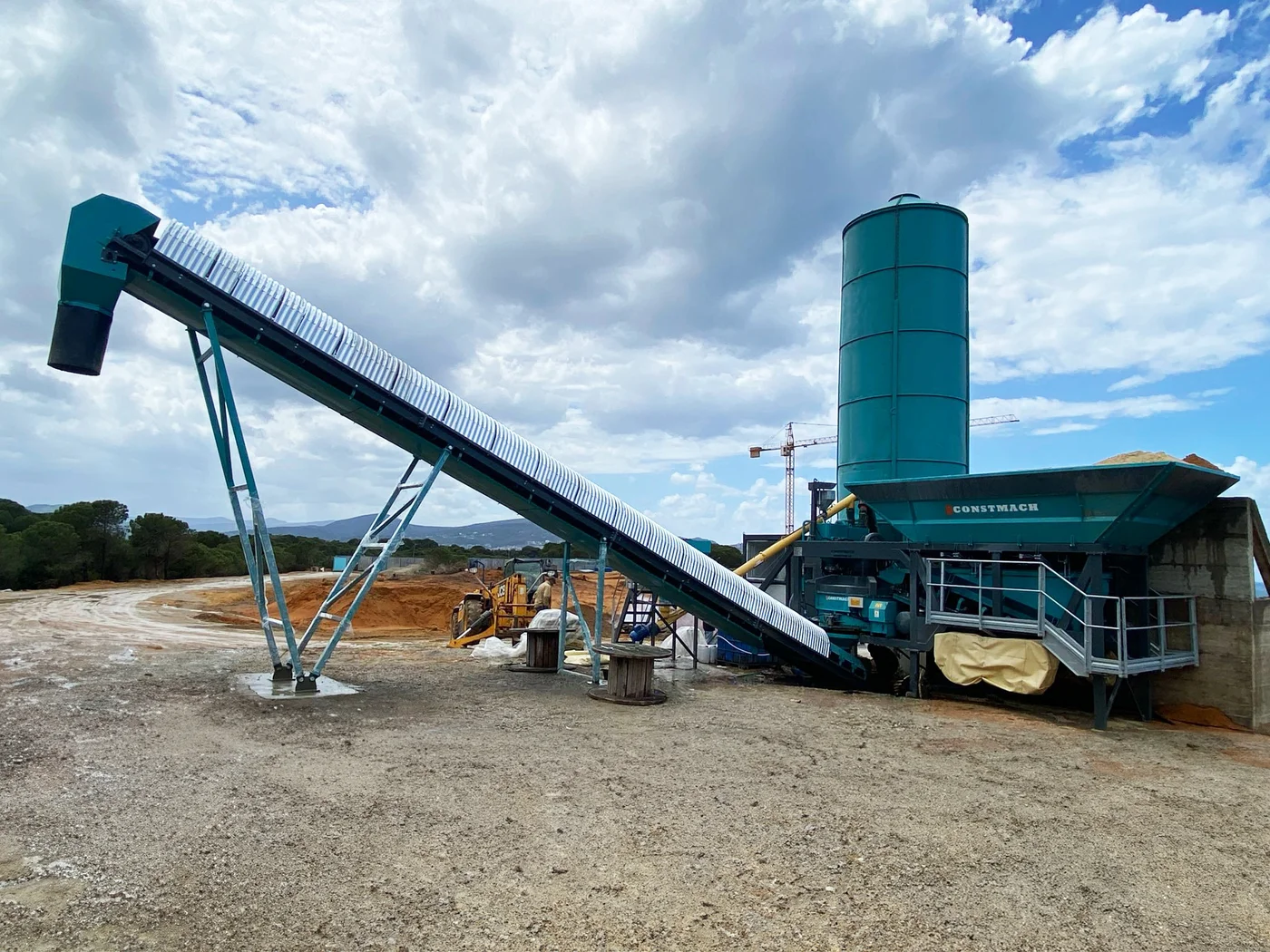

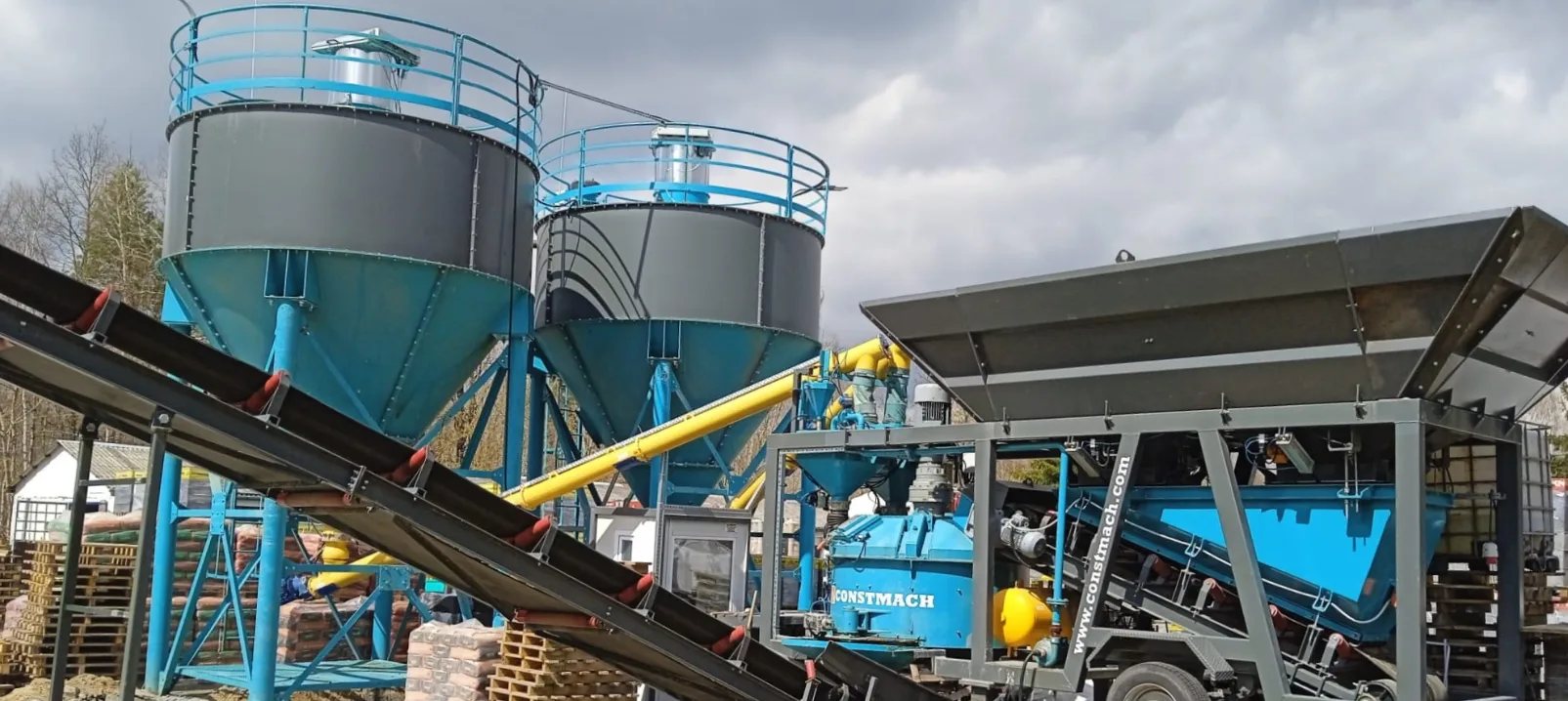

CEMENT SILOCEMENT SILO

Single shaft, pan or planetary type mixers can be used in MOBICOM 30 so that it could be used for different purposes such as ready mixed concrete, dry mixed concrete, precast concrete production etc.

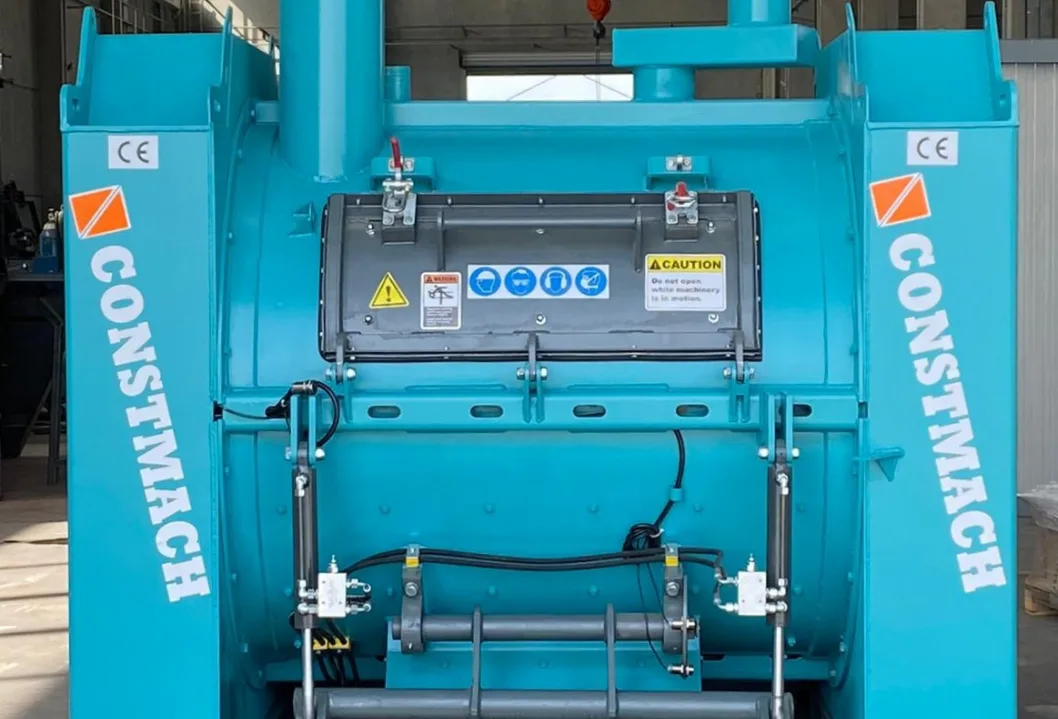

SINGLE SHAFT MIXERSINGLE SHAFT MIXER

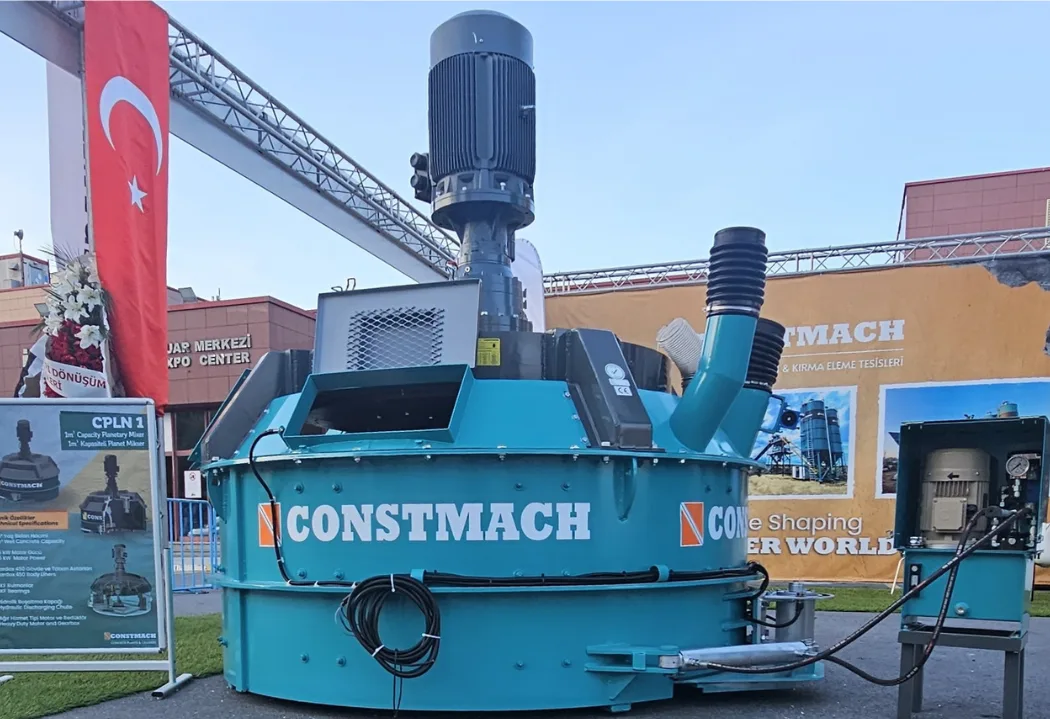

PLANETARY MIXERPLANETARY MIXER

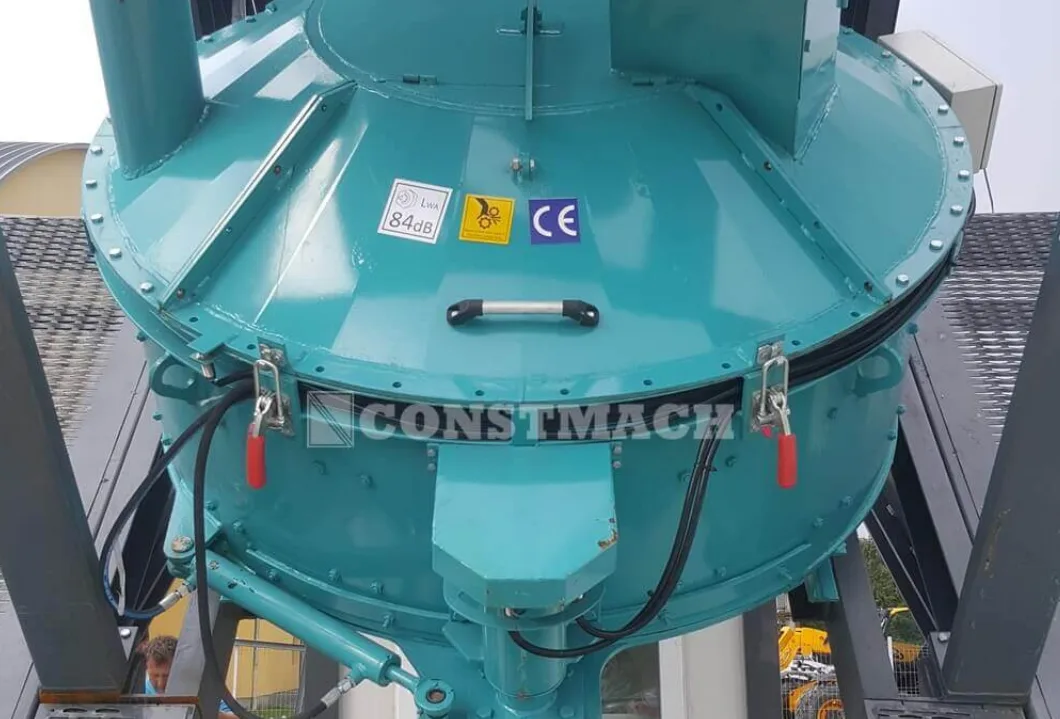

PAN MIXERPAN MIXER

Thanks to the optimized aggregate feeding height of MOBICOM 30, ramp for loaders to charge aggregate to the hopper is not required. A loader can charge the hopper directly from ground level easily.

MOBICOM 30 is equipped with high-tech automation system including top class SIEMENS & SCHNEIDER brand electronic components and PLC. The whole system is controlled through an advanced software which has sophisticated features and user friendly interface.

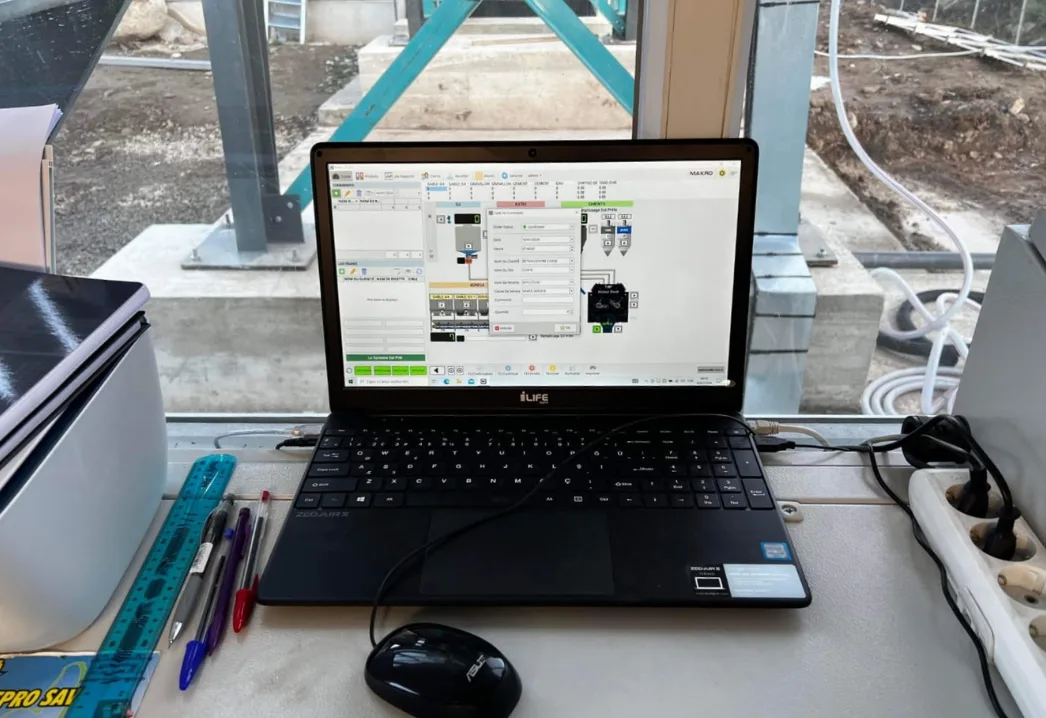

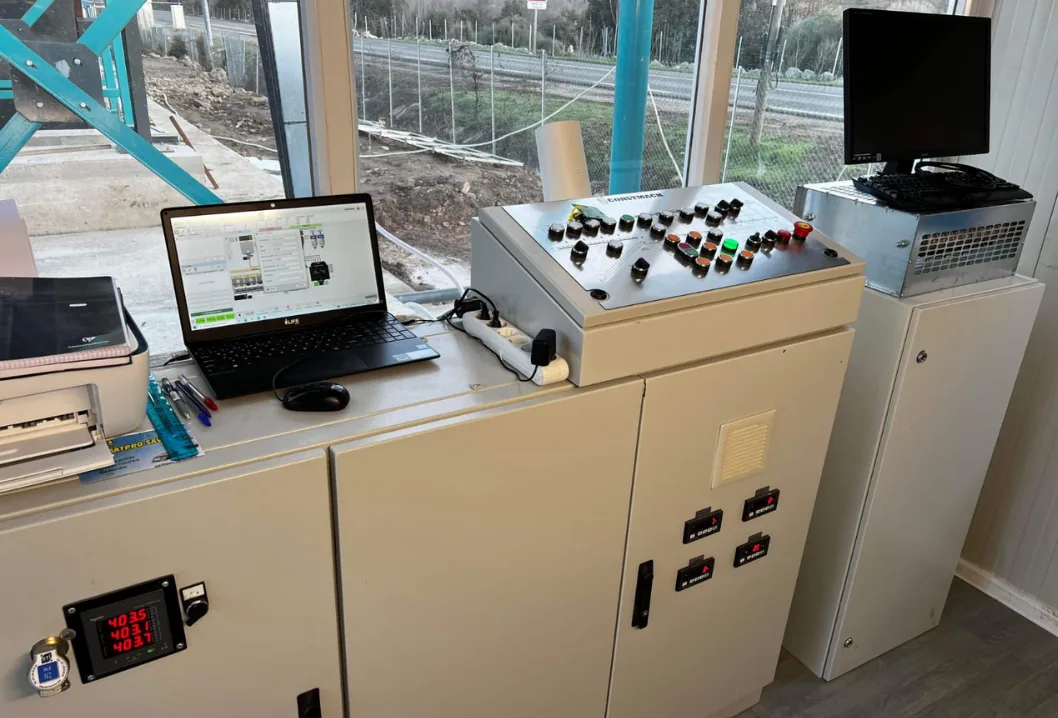

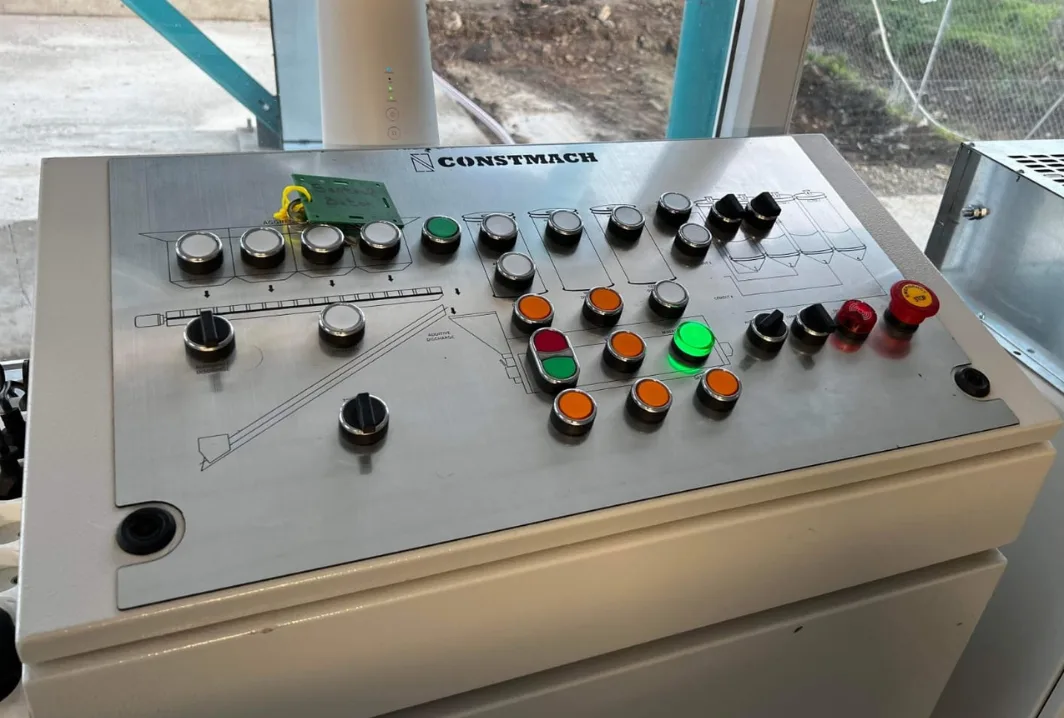

FULL AUTOMATIC CONTROL SYSTEM

Overall dimensions of MOBICOM 30 are determined according to international road transport regulations and it is transported between jobsites easily.

Mobicom 30 Technical Specifications

Production Capacity30 m³/h
Sizes in Transport Position8(L) x 2.3(W) x 2.5(H) meters
Weight8 Tons
Total Motor Power47 kW
Required Electric Generator75 kVA
Mixer OptionsSingle Shaft - Planetary
Required area to operate200 m²
Aggregate Hopper Volume4 x 6 m³
Aggregate Weighing Hopper0.75 m³
Aggregate Transfer Conveyor600 x 4.000 mm
Mixer Wet Concrete Volume0.5 m³
Cement Weighing Hopper300 kg
Water Weighing Hopper200 lt
Additive Weighing Hopper15 lt
Air Compressor300 lt, 4 kW
Cement SiloOptional from 50 to 200 tonnes capacity.
Control TypeFULL AUTOMATIC

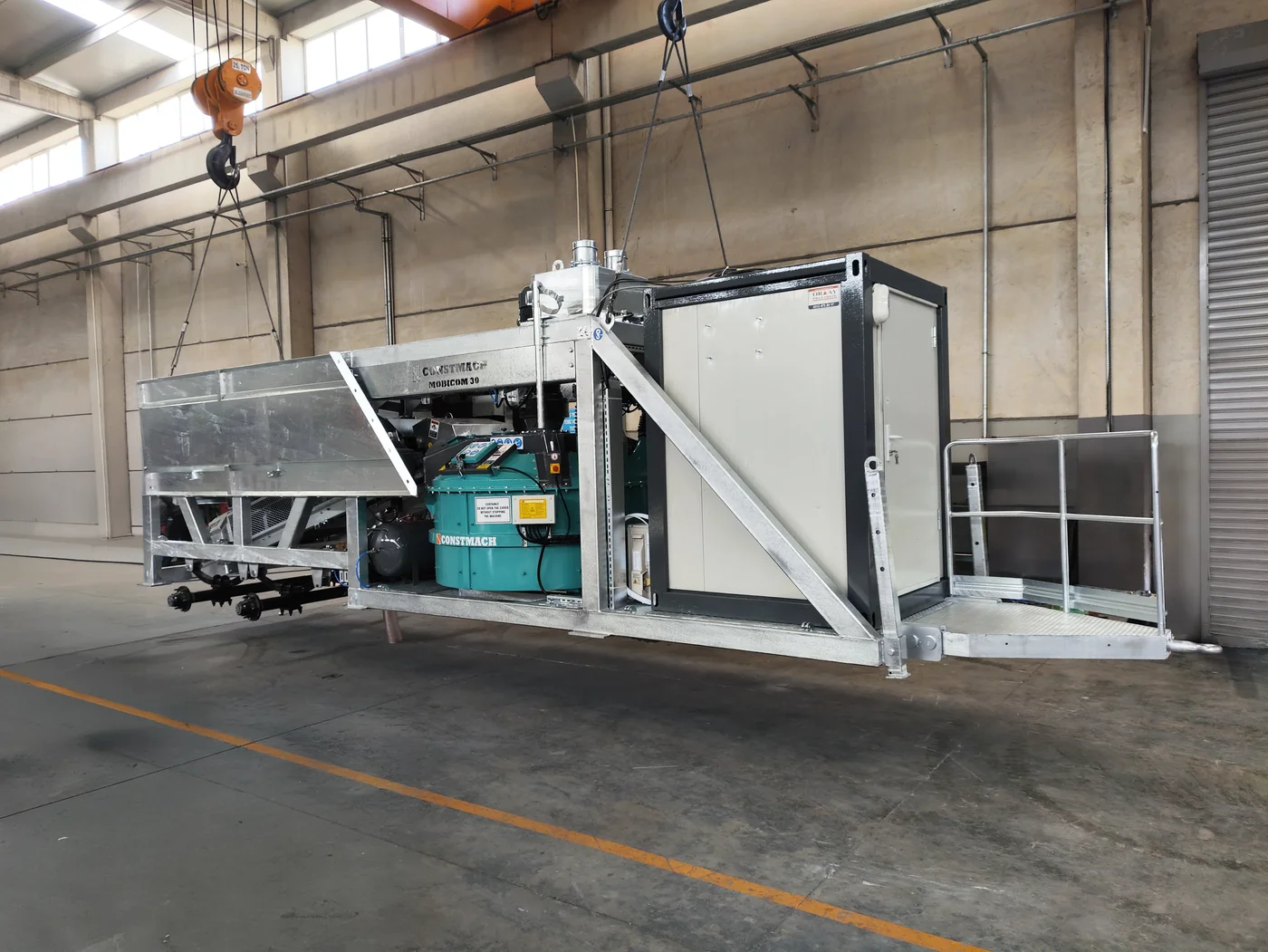

Mobicom 30 Transport

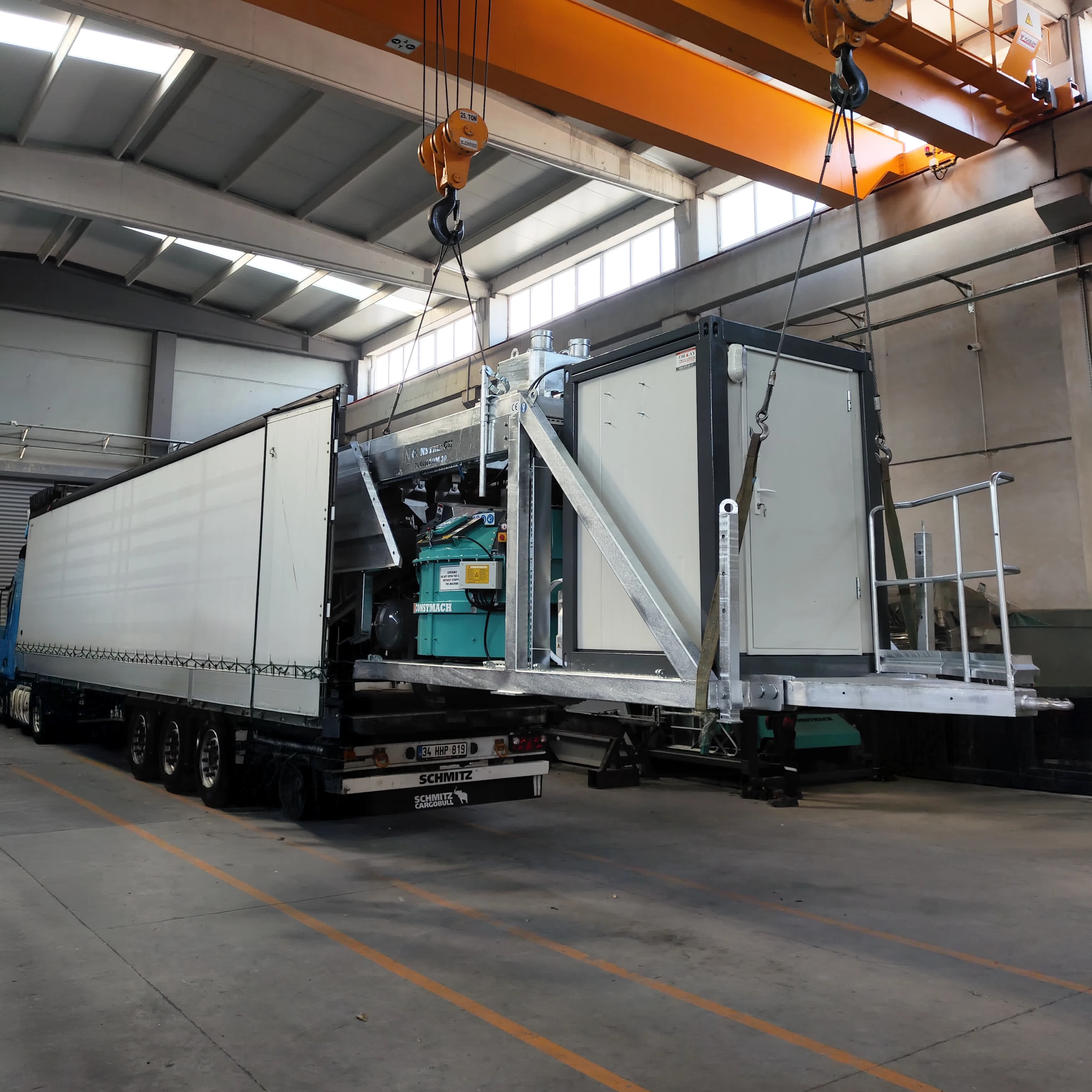

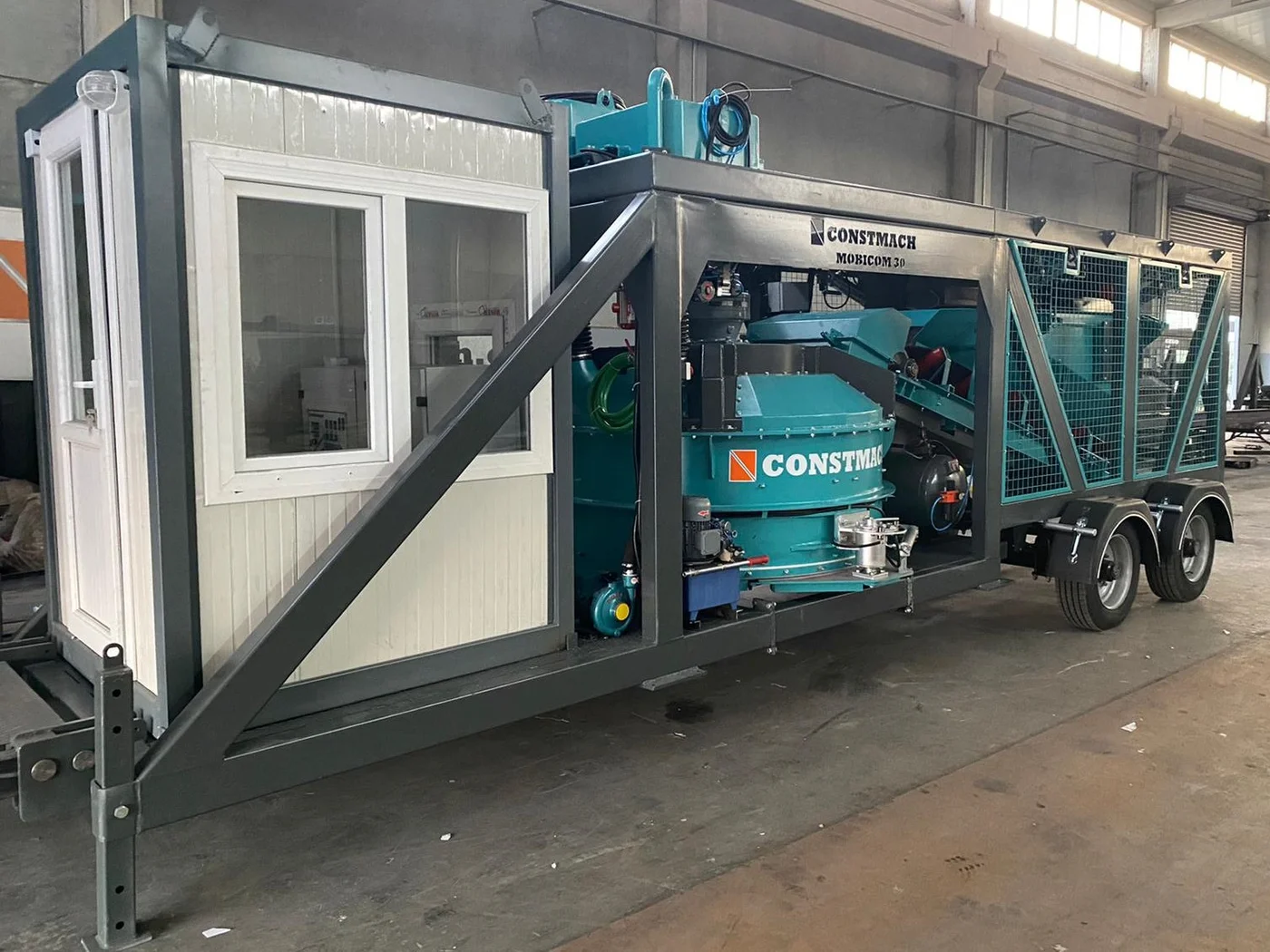

Mobicom 30 transport position

Mobicom 30Video

Mobicom 30 General Layout

FAQ

Industries And Project Types That Use Mobicom 30

Mobicom 30 is purchased by contractors who follow projects across multiple sites in a single season — highway construction crews, regional precast distributors, and ready-mix operators serving short-term jobsite contracts. The mobile chassis is the key advantage: a project that lasts 6 months no longer requires a 3–4 week site-preparation phase before first concrete production. Mobicom 30 is on site and producing within hours of arrival.

What Mobicom 30 Produces

Mobicom 30 produces ready-mixed concrete at a rated capacity of 30 m³/h. The configurable mixer (selected at the engineering stage) covers ready-mix concrete (low and high slump), dry-mix concrete, precast feedstock and specialty mixes. The chassis-mounted cement silo (as specified) holds enough stock for typical jobsite operation; external silos are added where higher buffer capacity is required.

Suitability Factors

Mobicom 30 suits jobsites with: a flat load-bearing pad of approximately 200 m², road access for the single-trailer delivery, electrical supply matching 70 kVA, and water supply. Sites without these basics still benefit from the mobile design — temporary supply (diesel generator, water bowser) can be provided alongside, and Mobicom 30 starts producing while permanent utilities are being installed.

Operating Considerations

Mobicom 30 requires standard maintenance — daily walkaround checks, weekly grease points, monthly wear-plate inspection, quarterly overhauls. The road-legal chassis dimensions (8(L) x 2.3(W) x 2.5(H) meters) allow movement between jobsites without disassembly and without special-load permits in most countries. Movement preparation is typically a single shift: drain the cement silo, disconnect utilities, fold any extendable elements, drive away.

Comparison To Alternatives

Compared to stationary plants, Mobicom 30 sacrifices peak capacity for mobility — for projects that move every 6–12 months, the lifetime cost-per-cubic-metre is lower despite the higher capital cost. Compared to compact stationary plants, Mobicom 30 eliminates the foundation pad and is genuinely transportable as a single unit. For projects that stay on one site for multiple years, a stationary or compact plant is generally more economical.
