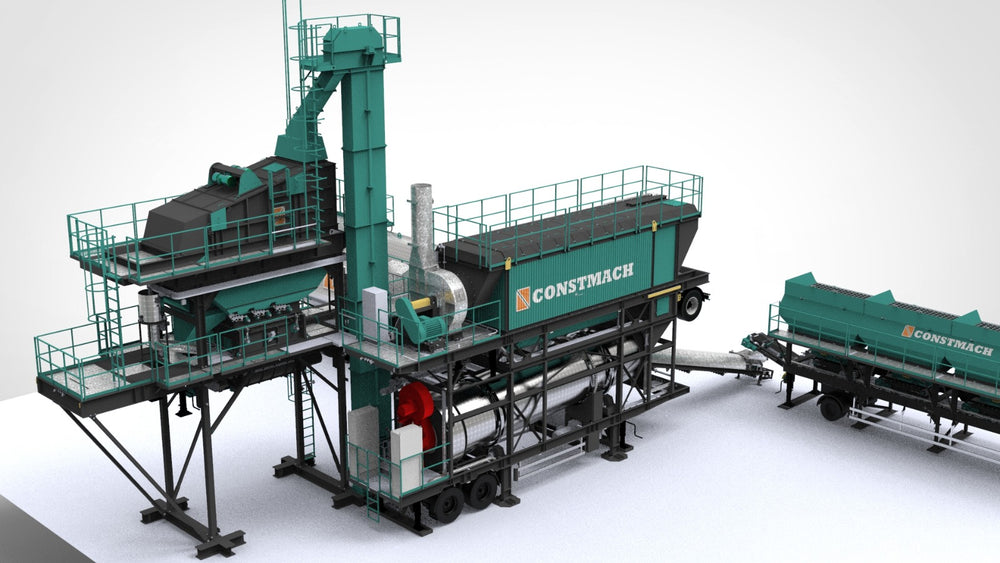

The CMAP-120 mobile asphalt plant stands as one of Constmach's most capable solutions for medium to large-scale asphalt production needs. With a production capacity of 120 tons per hour, this plant delivers the perfect balance between mobility and high-volume output, making it an ideal choice for infrastructure projects that demand both flexibility and performance. Unlike stationary plants that require extensive groundwork and permanent foundations, the CMAP-120 can be transported, installed, and operational in a fraction of the time, yet it doesn't compromise on production quality or consistency.
What sets this model apart is its compact footprint combined with impressive capabilities. The plant requires only 600 square meters for installation, excluding storage and administrative areas. This space efficiency means you can set up operations even in locations with limited available land, which is particularly valuable for road construction projects or sites where space comes at a premium. The entire system can be transported using just six tractor units and one tractor-trailer combination, making relocation between project sites straightforward and cost-effective. If you need additional bitumen storage, each extra tank requires only one more transport unit.
The heart of the CMAP-120 is its 1,700-kilogram twin-shaft mixer, designed to produce consistent, high-quality asphalt mix. This mixing system ensures thorough blending of aggregates and bitumen, resulting in a homogeneous product that meets strict quality standards. The plant maintains a product temperature of 160°C, which is optimal for most standard asphalt applications. Four aggregate bins, each with a 15-cubic-meter capacity, provide ample storage and allow for precise control over mix designs. The 2,000-millimeter diameter dryer drum handles material efficiently, processing aggregates at the rate needed to maintain full production capacity.
Operating the CMAP-120 requires just one operator, thanks to its fully automatic control system. This automation not only reduces labor costs but also minimizes the potential for human error, ensuring consistent output throughout production runs. The control system manages everything from aggregate feeding and drying to mixing and discharge, allowing the operator to monitor the process and make adjustments as needed rather than managing every aspect manually. This level of automation is particularly beneficial during extended production periods or when working with less experienced crews.
Durability is built into every aspect of the CMAP-120. The entire structure receives a comprehensive paint treatment consisting of one layer of anticorrosive paint followed by two layers of final coat epoxy paint, achieving a total thickness of 140 microns. This protective coating isn't just about aesthetics; it provides robust protection against the harsh environmental conditions these plants face, from extreme temperatures to exposure to moisture and chemicals. The paint system significantly extends the service life of the equipment and reduces maintenance requirements over time.
The plant operates on standard 380V/50Hz power supply, making it compatible with most industrial power sources worldwide. This electrical specification eliminates the need for special power arrangements in most locations, simplifying site setup and reducing infrastructure costs. The combination of standard power requirements, compact size, and quick installation capability means the CMAP-120 can be producing quality asphalt within days of arriving at a new site.
Constmach's approach to manufacturing mobile asphalt plants focuses on delivering equipment that performs reliably under real-world conditions. The CMAP-120 embodies this philosophy, combining robust engineering with practical features that matter on job sites. Whether you're working on highway construction, airport runways, or urban road projects, this plant provides the production capacity and reliability needed to keep projects moving forward on schedule and within budget.
