Twin Shaft Concrete Mixers About Information
The foundation of any successful concrete batching plant lies in its mixing system, and twin shaft concrete mixers represent the pinnacle of modern mixing technology. These robust machines deliver superior homogeneity and faster cycle times compared to traditional planetary mixers, making them the preferred choice for high-volume concrete production facilities worldwide. With their counter-rotating shafts and strategically positioned mixing arms, double shaft concrete mixers ensure every batch meets strict quality standards while maintaining impressive throughput rates.
Whether you're operating a precast facility, ready-mix plant, or large-scale construction project, the choice of mixer directly impacts your production efficiency and concrete quality. Twin shaft batch mixers excel in handling various concrete types—from standard ready-mix to specialized self-compacting concrete—while delivering consistent results batch after batch. Their efficient design minimizes mixing time without compromising blend quality, translating to lower operational costs and higher profitability for your business.
The double shaft concrete mixer operates on a fundamentally different principle than single-shaft or planetary systems. Two parallel shafts rotate in opposite directions, creating an intensive mixing action that thoroughly combines aggregates, cement, water, and admixtures in remarkably short cycles. The mixing arms mounted on these shafts follow precisely calculated paths, ensuring material flows through multiple mixing zones during each revolution.
This counter-rotation design generates a three-dimensional mixing pattern that eliminates dead spots within the mixing chamber. Every particle experiences consistent mechanical action, resulting in uniform concrete with minimal segregation. The aggressive mixing action also allows for shorter batch times—typically 25 to 45 seconds for standard concrete mixes—significantly boosting your plant's hourly production capacity.
Double shaft concrete mixers offer several compelling benefits that set them apart from other mixing technologies. The intensive mixing action produces concrete with superior homogeneity, essential for structural applications where consistency directly affects strength and durability. Fast discharge times—usually under 10 seconds—keep cycle times minimal and production rates high.
These mixers handle a broad spectrum of concrete consistencies, from zero-slump to flowing mixes, without requiring equipment changes. The robust construction withstands the abrasive nature of concrete production, delivering years of reliable service with minimal downtime. Additionally, the efficient mixing process requires less energy per cubic meter of concrete produced compared to planetary mixers, reducing operational expenses.

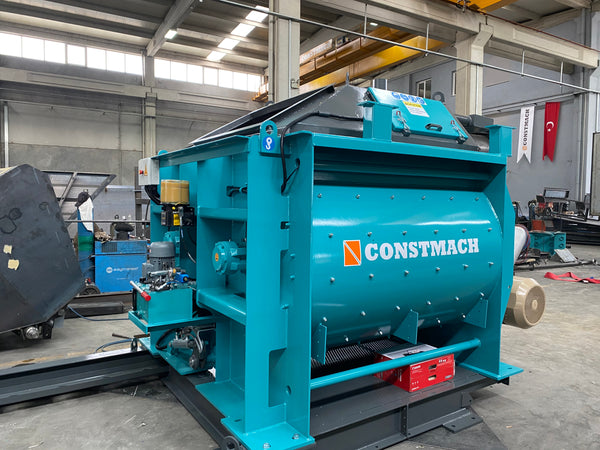

The CTS-1 represents the entry point in the CONSTMACH twin shaft lineup, engineered for operations requiring proven mixing technology in a compact footprint. This 1 m3 capacity mixer delivers the same intensive mixing action as larger models while fitting seamlessly into space-constrained facilities or mobile batching plants.
Despite its smaller size, the CTS-1 maintains the characteristic counter-rotating twin shaft design that ensures thorough material blending. The mixer features heavy-duty construction with wear-resistant mixing arms and liners designed to withstand the demanding environment of concrete production. Its efficient design makes it ideal for precast operations, small to medium ready-mix plants, or specialized concrete production where batch consistency matters more than sheer volume.

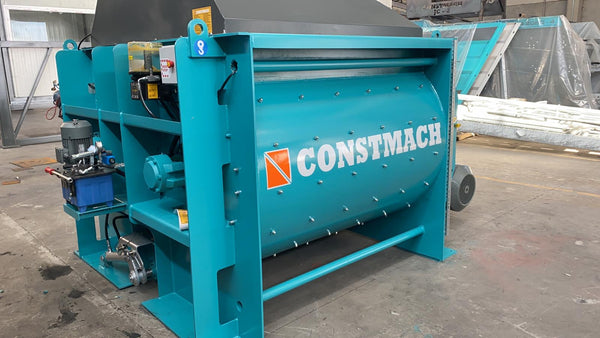

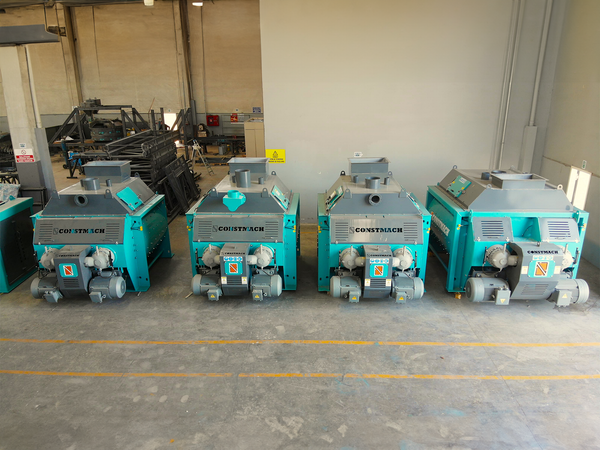

Stepping up to 2 m3 capacity, the CTS-2 offers versatility for growing operations or plants requiring higher throughput without massive infrastructure investment. This model strikes an excellent balance between production capacity and operational flexibility, making it suitable for various applications from ready-mix production to precast manufacturing.
The CTS-2 incorporates reinforced shaft assemblies and enhanced drive systems capable of handling the increased load while maintaining rapid mixing cycles. The mixer's design allows for consistent concrete quality regardless of mix design complexity, from standard structural concrete to specialty mixes containing fibers or multiple admixtures. Its proven reliability makes it a workhorse for operations demanding consistent daily production.

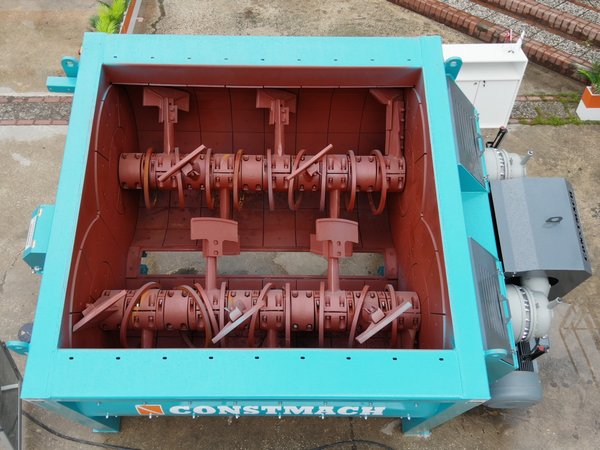

With 3 m3 of mixing capacity, the CTS-3 caters to operations where production volume becomes critical. This mixer handles the demands of busy ready-mix plants and large precast facilities while maintaining the precision and consistency that CONSTMACH equipment is known for. The increased capacity doesn't compromise mixing quality—every batch receives the same thorough treatment as in smaller models.
The CTS-3 features enhanced structural elements to manage the greater forces generated during mixing larger volumes. The drive system receives corresponding upgrades, ensuring reliable power delivery even under maximum load conditions. Advanced sealing systems protect critical components from cement dust and moisture intrusion, extending service intervals and reducing maintenance requirements.

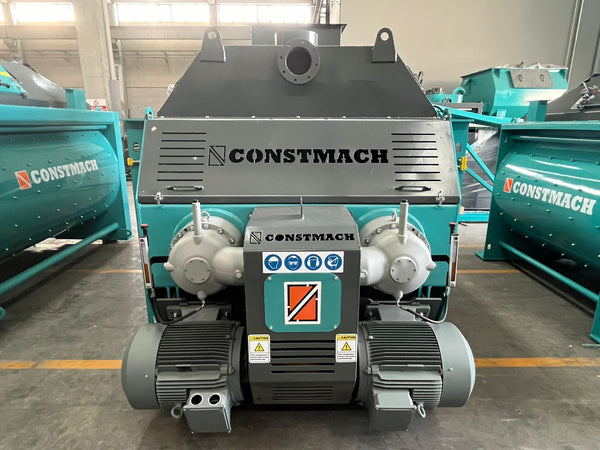

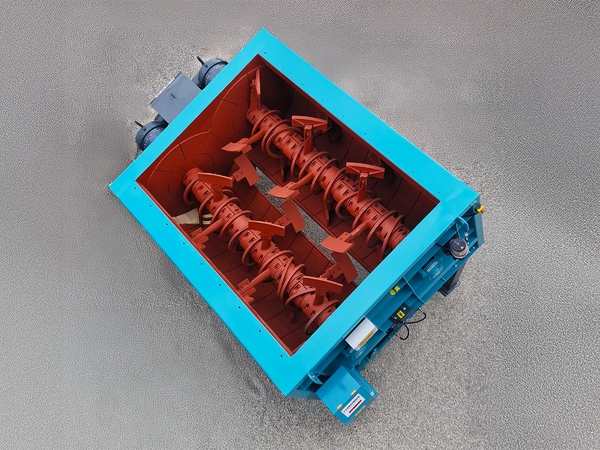

The 4 m3 CTS-4 represents a significant step toward high-volume production capabilities. This mixer serves operations where maximizing output is essential, yet without the space or infrastructure requirements of the largest models. Ready-mix plants operating in medium to large markets find the CTS-4 delivers optimal production rates while maintaining manageable operational costs.
Heavy-duty construction defines every aspect of the CTS-4, from the reinforced mixing drum to the industrial-grade bearings supporting the twin shafts. The mixer handles demanding production schedules without excessive wear, and its efficient design minimizes energy consumption per cubic meter produced. Strategic placement of discharge doors ensures rapid emptying, keeping cycle times competitive with larger units.

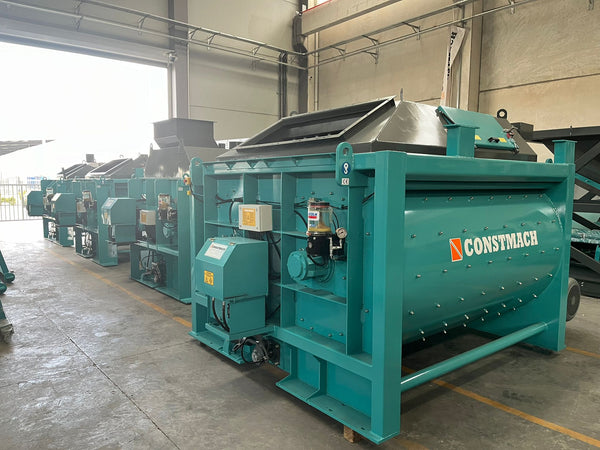

At the top of the range, the 5 m3 CTS-5 delivers maximum production capacity for operations that cannot afford bottlenecks in their mixing system. This flagship model combines proven twin shaft technology with robust engineering suited to the most demanding production environments. High-capacity ready-mix plants and large-scale precast operations rely on the CTS-5 for consistent, high-volume concrete production.
The CTS-5 incorporates the most robust components in the CONSTMACH mixer lineup. Extra-heavy-duty shafts, oversized drive systems, and reinforced structural elements handle continuous operation under maximum load. Despite its size, the mixer maintains rapid cycle times, ensuring your batching plant operates at peak efficiency. Advanced wear protection systems extend service life even when processing abrasive aggregates or producing high-strength concrete mixes requiring extended mixing times.
All CONSTMACH twin shaft mixers share fundamental design elements that ensure reliable performance. The mixing arms utilize a proprietary geometry that maximizes material movement while minimizing wear. Wear liners protect the drum interior, and these components are designed for quick replacement during scheduled maintenance, minimizing downtime.
Precision-engineered gear reducers deliver consistent power to both shafts, maintaining proper speed ratios under all load conditions. Sealed bearing assemblies protect critical rotating components from contamination. The discharge system features wide-opening doors with pneumatic actuation, ensuring rapid, complete emptying regardless of concrete consistency.
Twin shaft mixers form the heart of modern concrete batching plants, positioned to receive precisely weighed materials from overhead bins. The mixer's loading system accommodates aggregates, cement, water, and admixtures, with charging times optimized to minimize overall cycle duration. Sensors monitor drum position and mixing progress, integrating with plant control systems for fully automated operation.
The mixers mount on load cells when used in batching plant configurations, enabling accurate weight verification of each batch. This setup ensures every load meets specification before discharge. The mixer's footprint and mounting requirements integrate smoothly with CONSTMACH batching plant designs, creating cohesive production systems where every component works in harmony.
Efficient discharge characteristics distinguish quality twin shaft mixers from mediocre designs. CONSTMACH mixers feature optimally sized and positioned discharge openings that allow concrete to flow freely under gravity alone—no mechanical assistance required. The smooth interior surfaces and properly angled discharge path prevent material hangup, ensuring complete emptying between batches.
This efficient discharge matters more than many realize. Incomplete discharge leads to material waste, contamination of subsequent batches, and unnecessary cleanup time. The twin shaft design inherently promotes thorough discharge, as the mixing action continues briefly during door opening, helping push material toward the exit. This attention to discharge efficiency translates directly to higher effective production rates and reduced material costs.
Regular maintenance keeps twin shaft mixers operating at peak efficiency for years. CONSTMACH designs prioritize accessibility, placing service points where technicians can reach them without extensive disassembly. Inspection covers allow visual checking of mixing arms and liners without removing major components. Grease points are positioned for easy access, encouraging consistent lubrication schedules.
Wear parts follow standardized designs that simplify inventory management and replacement procedures. Mixing arms, liners, and discharge gate seals represent the primary consumable components, and their replacement follows straightforward procedures documented in comprehensive service manuals. The robust primary structure—shafts, bearings, drive systems, and frame—provides decades of service when properly maintained.
Maximizing production from twin shaft batch mixers requires understanding their capabilities and limitations. Proper batch sizing—typically 90-100% of nominal capacity—ensures optimal mixing action without overloading drive systems. Consistent material feed rates and accurate proportioning eliminate mixing irregularities that extend cycle times or compromise quality.
Modern plants equipped with automation systems optimize mixer operation by precisely timing material additions, controlling mixing duration based on concrete type, and coordinating discharge with ready-mix truck loading or precast mold filling. These automated systems extract maximum productivity from twin shaft mixers while maintaining the consistency that quality concrete production demands.
Selecting the right mixing equipment represents one of the most critical decisions in establishing or upgrading a concrete production facility. CONSTMACH twin shaft concrete mixers deliver proven performance backed by decades of engineering experience and thousands of installations worldwide. Our mixers combine robust construction with thoughtful design details that translate to reliable daily operation and minimal lifetime cost of ownership.
Each CONSTMACH twin shaft mixer undergoes rigorous testing before shipment, ensuring it meets our exacting standards for mixing performance, structural integrity, and component quality. We support our equipment with comprehensive technical documentation, readily available spare parts, and responsive technical assistance. When you invest in CONSTMACH mixing technology, you're partnering with a manufacturer committed to your long-term success. Our engineering team continues refining these designs based on real-world feedback, ensuring each new mixer incorporates the latest improvements in efficiency, durability, and ease of maintenance. Choose CONSTMACH for mixing equipment that delivers results today and continues performing years into the future.
